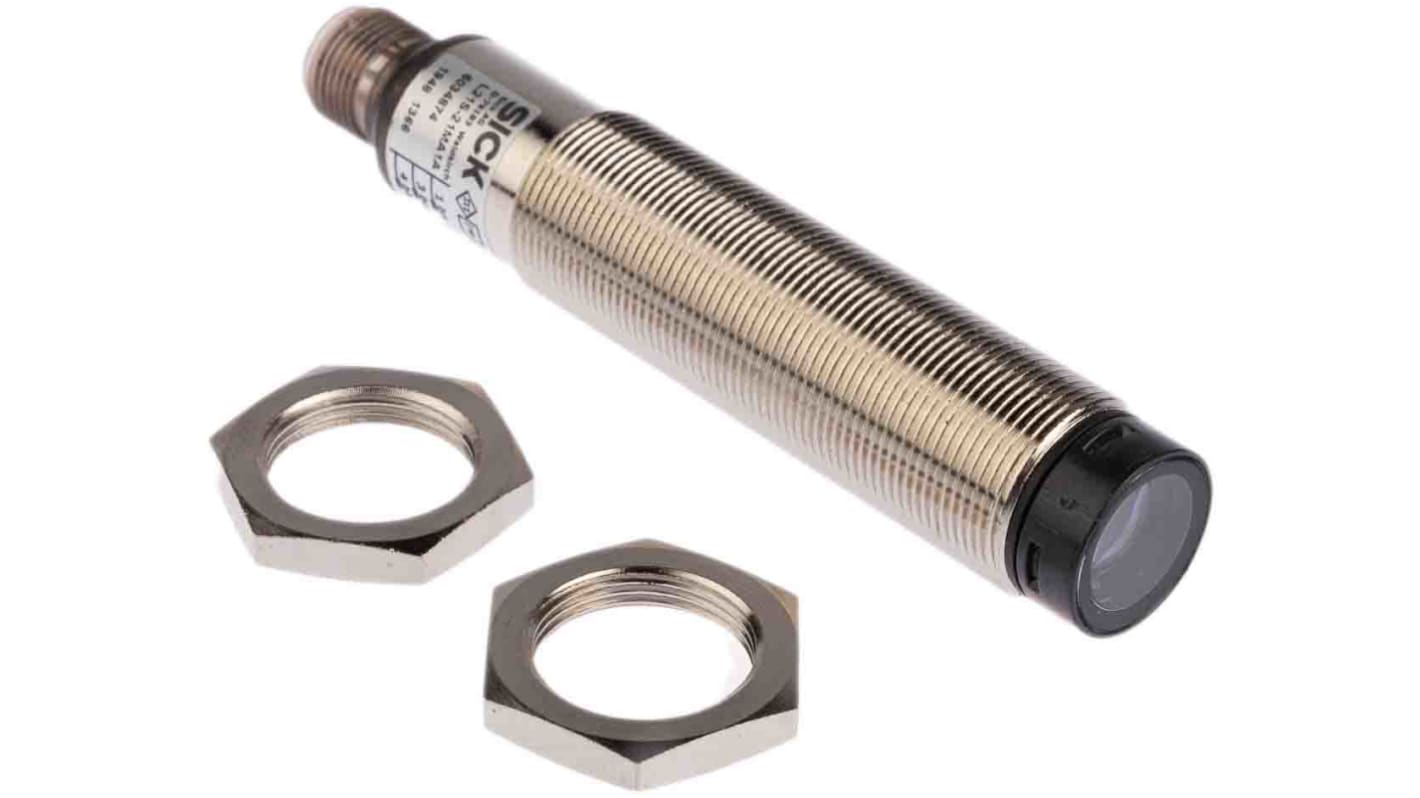

SICK L21 Series Light Beam Sender, 1 Beam(s), 16 m Max Range
- RS 제품 번호:
- 701-9250
- 제조사 부품 번호:
- L21S-21MA1A / 6034874
- 제조업체:
- SICK
Subtotal (1 unit)*
₩305,194.50
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩305,194.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 701-9250
- 제조사 부품 번호:
- L21S-21MA1A / 6034874
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Light Beam | |
| Series | L21 | |
| Component Type | Sender | |
| Minimum Scanning Distance | 0m | |
| Maximum Scanning Distance | 16m | |
| Safety Type | 2 | |
| Standards/Approvals | CE, UKCA | |
| Number of Beams | 1 | |
| Maximum Response Time | 0.2ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Peak Wavelength | 660nm | |
| Length | 97.7mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Light Beam | ||
Series L21 | ||
Component Type Sender | ||
Minimum Scanning Distance 0m | ||
Maximum Scanning Distance 16m | ||
Safety Type 2 | ||
Standards/Approvals CE, UKCA | ||
Number of Beams 1 | ||
Maximum Response Time 0.2ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Peak Wavelength 660nm | ||
Length 97.7mm | ||
- COO (Country of Origin):
- DE
SICK L21 Series Safety Single Beam Sensor, 97.7mm Length, 16m Maximum Scanning Distance - L21S-21MA1A / 6034874
This safety single beam sensor is a sender unit designed for industrial machine safeguarding and presence detection in automation environments. It emits a visible red beam for object detection and integrates with common safety systems to provide a monitored protective function. The device connects via an M12 Interface and meets recognised European and UK conformity marks for use in regulated settings.
Features and Benefits:
• Peak emission at 660 nm enables visible alignment and detection
• Single-beam design simplifies installation and alignment
• Maximum scanning range 16 m extends detection reach
• Response time 0.2 MS supports Rapid interrupt signalling
• Minimum sensing distance 0 m permits very close-proximity detection
• Safety rating 2 provides a defined level of functional safety
• Single-beam design simplifies installation and alignment
• Maximum scanning range 16 m extends detection reach
• Response time 0.2 MS supports Rapid interrupt signalling
• Minimum sensing distance 0 m permits very close-proximity detection
• Safety rating 2 provides a defined level of functional safety
Applications
• Suitable for machine guarding on production lines
• Ideal for presence detection in conveyor systems
• Used for access control at guarded openings
• Can be used for light-beam monitoring in robotic cells
• Ideal for presence detection in conveyor systems
• Used for access control at guarded openings
• Can be used for light-beam monitoring in robotic cells
What electrical connection does it require?
It interfaces through an M12 connector for power and signal wiring to compatible controllers and safety relays.
How does the device perform where close detection is needed?
It can detect targets starting at 0 m, allowing reliable operation for very near-field sensing tasks.
How quickly will it register an interrupted beam?
The sender supports a maximum response time of 0.2 ms, enabling fast signalling for safety circuits.
What physical form factor should installers plan for?
The unit has a Compact length of 97.7mm to assist with space-constrained mounting.
