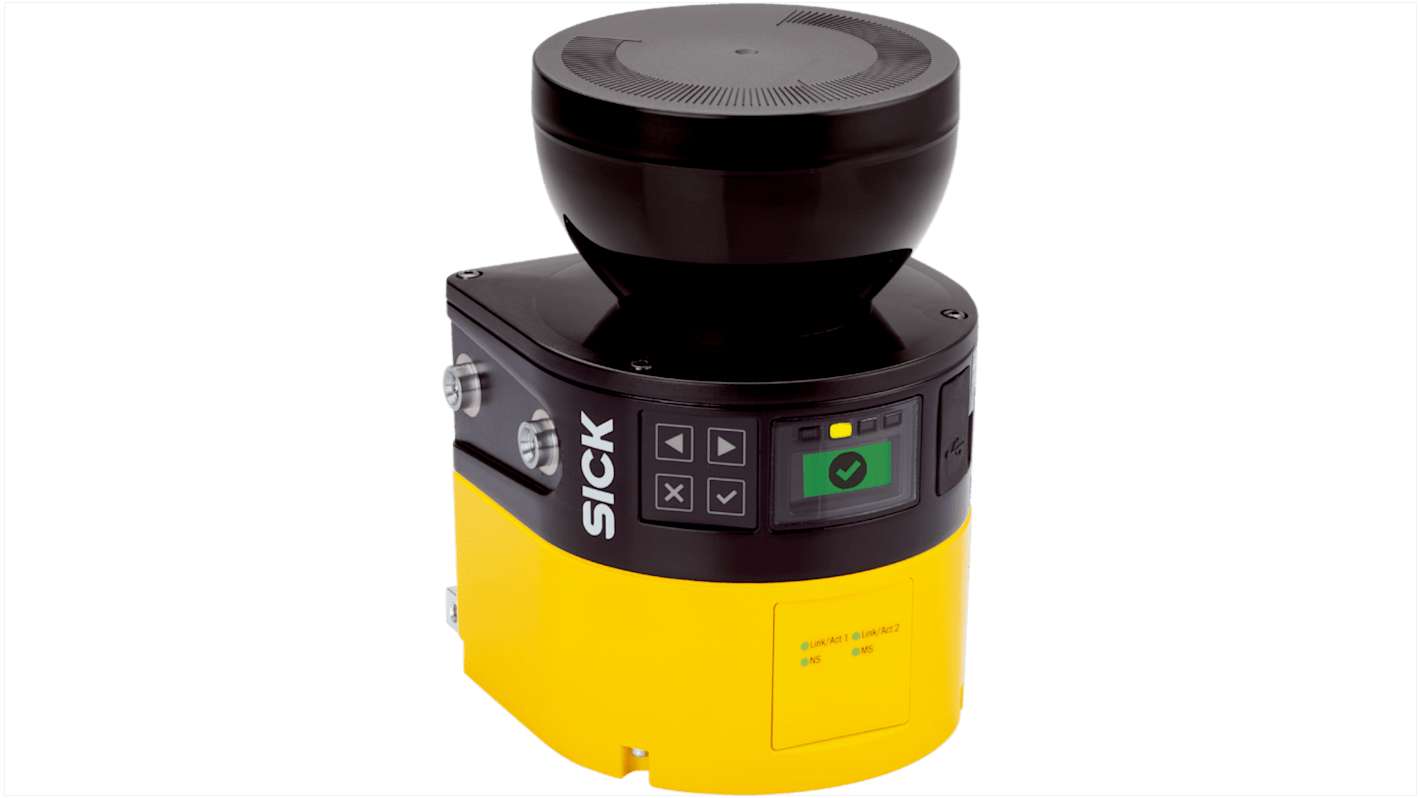

SICK MICS3 Series Laser Scanner Receiver, 9 m Max Range
- RS 제품 번호:
- 287-7938
- 제조사 부품 번호:
- MICS3-CCAZ90AN1P01 / 1133822
- 제조업체:
- SICK
Subtotal (1 unit)*
₩13,527,740.00
제조사가 재고 비축중
- 2026년 12월 21일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩13,527,740.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-7938
- 제조사 부품 번호:
- MICS3-CCAZ90AN1P01 / 1133822
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | MICS3 | |
| Component Type | Receiver | |
| Maximum Scanning Distance | 9m | |
| Safety Type | 3 | |
| Standards/Approvals | d | |
| Maximum Response Time | 90ms | |
| Terminal Type | M12 | |
| Hazardous Area Certification | No | |
| Height | 163mm | |
| Length | 111.1mm | |
| Peak Wavelength | 845nm | |
| Width | 112mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series MICS3 | ||
Component Type Receiver | ||
Maximum Scanning Distance 9m | ||
Safety Type 3 | ||
Standards/Approvals d | ||
Maximum Response Time 90ms | ||
Terminal Type M12 | ||
Hazardous Area Certification No | ||
Height 163mm | ||
Length 111.1mm | ||
Peak Wavelength 845nm | ||
Width 112mm | ||
- COO (Country of Origin):
- DE
SICK MICS3 Series Laser Scanner, 9m Maximum Scanning Distance, 90ms Maximum Response Time - MICS3-CCAZ90AN1P01 / 1133822
This laser scanner is a Compact receiver designed for industrial sensing and safety tasks in non-hazardous areas. It operates as a precise distance-detection device suited to environments requiring defined response performance and recognised approvals, integrating an M12 connection and a near-infrared emission for object detection and protective functions.
Features and Benefits:
• 9 m maximum scanning distance enables extended-range detection
• 90 MS maximum response time supports timely system reactions
• Safety type 3 classification meets moderate-level protective requirements
• 845 nm Peak Wavelength provides consistent near-infrared signalling
• CE, cULus and UKCA approvals ensure accepted conformity across regions
• 90 MS maximum response time supports timely system reactions
• Safety type 3 classification meets moderate-level protective requirements
• 845 nm Peak Wavelength provides consistent near-infrared signalling
• CE, cULus and UKCA approvals ensure accepted conformity across regions
Applications
• Suitable for perimeter monitoring in manufacturing cells
• Ideal for integration with conveyor safety systems
• Used for presence detection in automated handling
• Can be used for collision avoidance on guided vehicles
• Appropriate for retrofit of receiver modules in control cabinets
• Ideal for integration with conveyor safety systems
• Used for presence detection in automated handling
• Can be used for collision avoidance on guided vehicles
• Appropriate for retrofit of receiver modules in control cabinets
What connector type does it use for integration?
It employs an M12 Terminal for electrical and signal interfacing.
Is it certified for use in explosive atmospheres?
No, it is not intended for hazardous-area installation.
Which organisations' approvals does it carry?
It holds CE, cULus and UKCA approvals.
What are the unit's physical proportions?
The receiver measures 163 mm in height, 111.1 mm in length and 112 mm in width.
