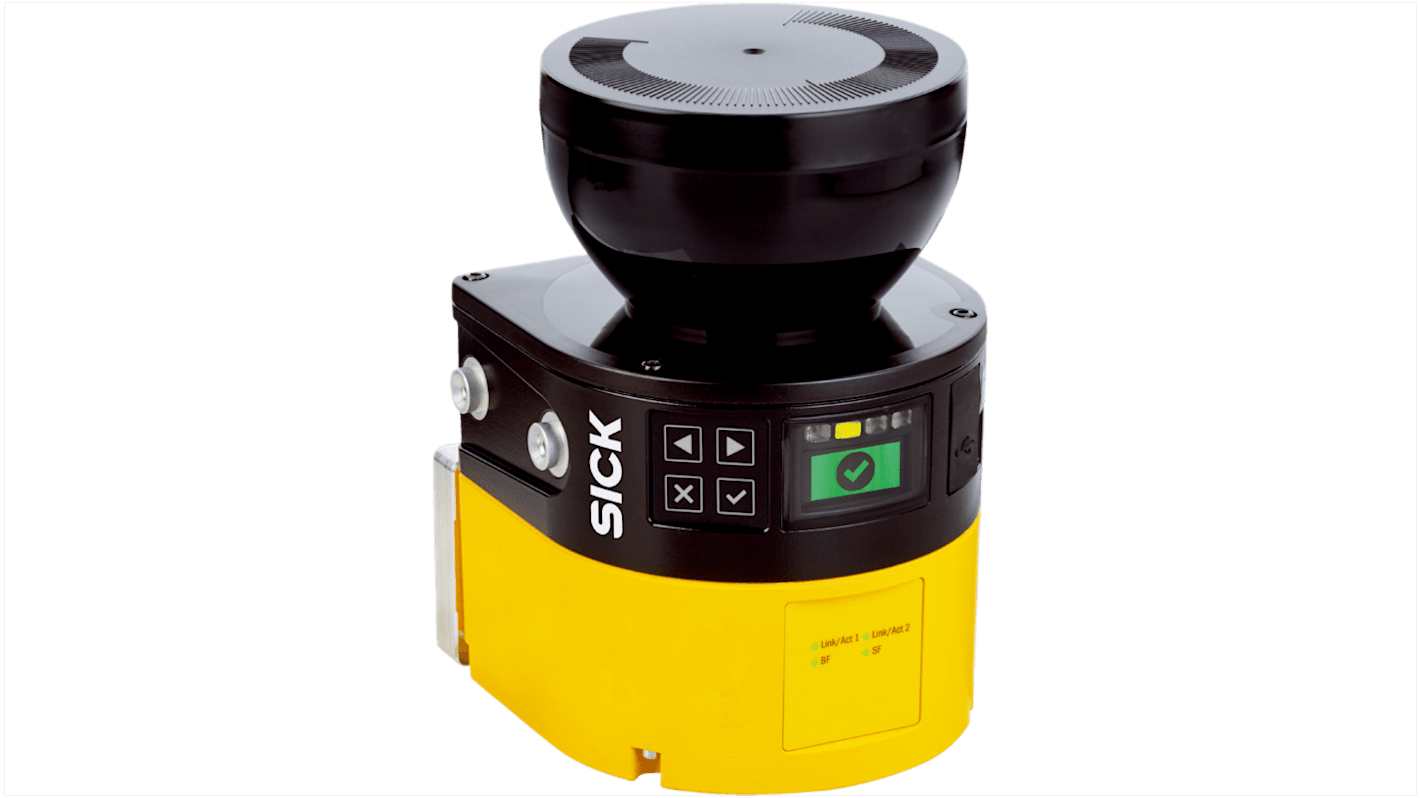

SICK MICS3 Series Laser Scanner Laser Scanner, 5.5 m Max Range
- RS 제품 번호:
- 285-4112
- 제조사 부품 번호:
- MICS3-ACAZ55LZ1P01 / 1100386
- 제조업체:
- SICK
Subtotal (1 unit)*
₩13,635,979.50
제조사가 재고 비축중
- 2026년 8월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩13,635,979.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-4112
- 제조사 부품 번호:
- MICS3-ACAZ55LZ1P01 / 1100386
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | MICS3 | |
| Component Type | Laser Scanner | |
| Maximum Scanning Distance | 5.5m | |
| Safety Type | 3 | |
| Standards/Approvals | d | |
| Maximum Response Time | 95ms | |
| Hazardous Area Certification | No | |
| Protective Height | 5.5m | |
| Length | 111.1mm | |
| Peak Wavelength | 845nm | |
| Width | 112mm | |
| Height | 163.1mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series MICS3 | ||
Component Type Laser Scanner | ||
Maximum Scanning Distance 5.5m | ||
Safety Type 3 | ||
Standards/Approvals d | ||
Maximum Response Time 95ms | ||
Hazardous Area Certification No | ||
Protective Height 5.5m | ||
Length 111.1mm | ||
Peak Wavelength 845nm | ||
Width 112mm | ||
Height 163.1mm | ||
- COO (Country of Origin):
- DE
Overview
The microScan3 safety laser scanner stands for the protection of very different applications: from stationary to mobile, from simple to complex. The innovative safeHDDM® scanning technology makes the microScan3 extremely resistant, even to dust and ambient light, and delivers high precision measurement data. It increases the productivity and availability of machines. The different variants of the microScan3 can be integrated simply and safely into countless networks.
In addition, the safety laser scanner offers standardized connectivity for time-saving commissioning. The microScan3, the easy handling of its Safety Designer configuration software and its diagnostic options combine User friendly operation, innovation and very high performance.
At a glance
Innovative safeHDDM® scanning technology
High-precision measurement data via Ethernet interface
Protective field range: up to 9 m, scanning angle: 275°
Up to 128 freely configurable fields and up to 8 simultaneous protective fields
Standardized communication interfaces
System plug with configuration memory
Your Benefit
Very high machine availability and productivity thanks to the patented safeHDDM® scanning technology
Flexibility for safe automation processes due to simultaneous protective fields, contour detection fields and detailed data output
Safe integration into different control systems via I/O, EFI-pro, EtherNet/IP™ CIP Safety™ or PROFINET PROFIsafe, EtherCAT® FSoE, etc.
Saves time during commissioning and diagnostics thanks to the intuitive Safety Designer software, multi-color display and system plug
Applications
Fields of applications
Hazardous area, hazardous point and access protection of stationary applications
Safety and localization for mobile platforms and mobile robots
Simultaneous protection of several hazardous areas
