SICK MICS3 Series Laser Scanner Laser Scanner, 40 m Max Range
- RS 제품 번호:
- 285-4108
- 제조사 부품 번호:
- MICS3-ABAZ40ZA1P01 / 1092539
- 제조업체:
- SICK
Subtotal (1 unit)*
₩10,911,020.00
제조사가 재고 비축중
- 2027년 2월 01일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩10,911,020.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-4108
- 제조사 부품 번호:
- MICS3-ABAZ40ZA1P01 / 1092539
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | MICS3 | |
| Component Type | Laser Scanner | |
| Maximum Scanning Distance | 40m | |
| Safety Type | 3 | |
| Standards/Approvals | CE, cULus, UKCA | |
| Maximum Response Time | 95ms | |
| Terminal Type | M12 | |
| Hazardous Area Certification | No | |
| Protective Height | 4m | |
| Peak Wavelength | 845nm | |
| Height | 150.7mm | |
| Length | 111.1mm | |
| Width | 112mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series MICS3 | ||
Component Type Laser Scanner | ||
Maximum Scanning Distance 40m | ||
Safety Type 3 | ||
Standards/Approvals CE, cULus, UKCA | ||
Maximum Response Time 95ms | ||
Terminal Type M12 | ||
Hazardous Area Certification No | ||
Protective Height 4m | ||
Peak Wavelength 845nm | ||
Height 150.7mm | ||
Length 111.1mm | ||
Width 112mm | ||
- COO (Country of Origin):
- DE

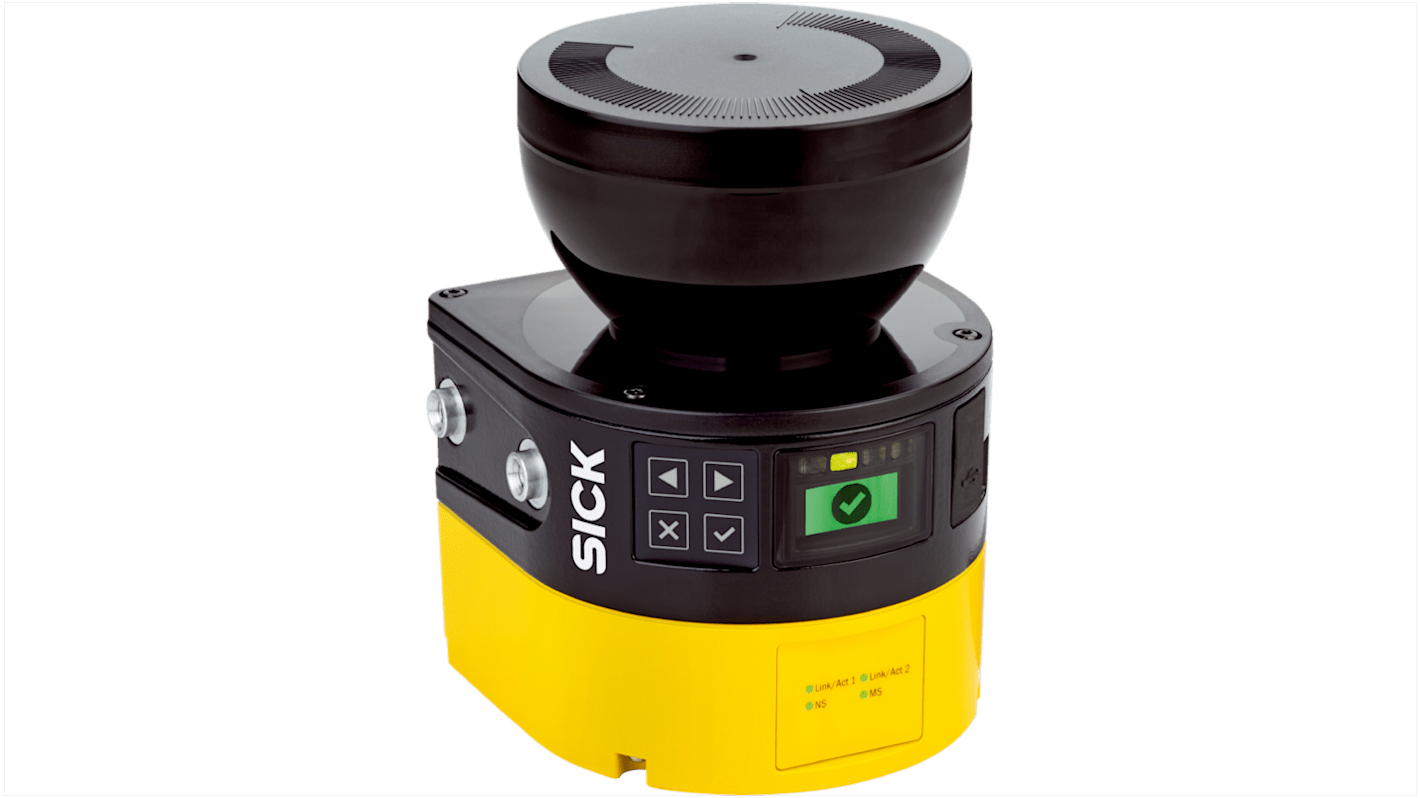

SICK MICS3 Series Laser Scanner, 40m Maximum Scanning Distance, 95ms Maximum Response Time - MICS3-ABAZ40ZA1P01 / 1092539
This laser scanner is a Compact LIDAR device designed for industrial sensing and safety monitoring. It operates with a near-infrared beam to detect objects and perimeter intrusions at extended distances, and it meets recognised regional approvals for use in regulated environments. The unit connects via an M12 Interface and is intended for installations requiring clearly defined protective height and safety categorisation.
Features and Benefits:
• 40 m maximum scanning distance provides extended detection coverage
• 95 MS maximum response time enables fast hazard recognition
• 845 nm Peak Wavelength supports near-infrared detection performance
• Safety Type 3 classification offers recognised protective functionality
• M12 Terminal simplifies robust field connectivity
• 95 MS maximum response time enables fast hazard recognition
• 845 nm Peak Wavelength supports near-infrared detection performance
• Safety Type 3 classification offers recognised protective functionality
• M12 Terminal simplifies robust field connectivity
Applications
• Suitable for perimeter monitoring in manufacturing facilities
• Ideal for collision avoidance on automated guided vehicles
• Used with access control to define 4 m protective height zones
• Can be used for intruder detection in secured logistic areas
• Ideal for collision avoidance on automated guided vehicles
• Used with access control to define 4 m protective height zones
• Can be used for intruder detection in secured logistic areas
What approvals does the unit carry for regional compliance?
It holds CE, cULus and UKCA marks indicating conformity with relevant standards.
What protective height can be established with this device?
The scanner supports a defined protective height of 4 m for area protection schemes.
What connector type is provided for system integration?
An M12 Terminal is supplied to facilitate field cabling and industrial interfaces.
Is the scanner certified for hazardous area deployment?
No, it does not have hazardous area certification.
