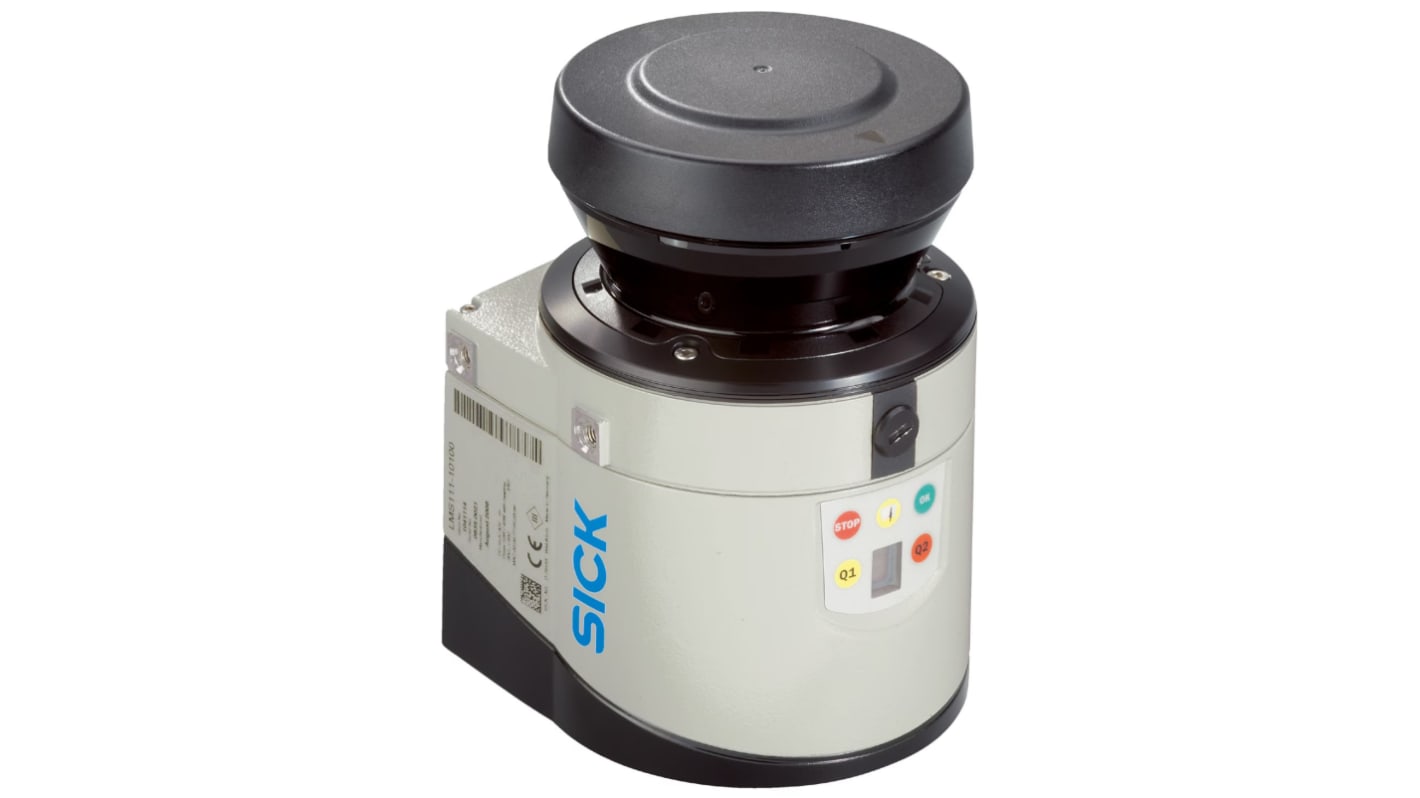

SICK LMS1xx Series Laser Scanner LiDAR Sensor, 20 m Max Range
- RS 제품 번호:
- 284-9243
- 제조사 부품 번호:
- LMS131-10100 SECURITY / 1051379
- 제조업체:
- SICK
Subtotal (1 unit)*
₩11,004,860.00
제조사가 재고 비축중
- 2027년 1월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩11,004,860.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 284-9243
- 제조사 부품 번호:
- LMS131-10100 SECURITY / 1051379
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | LMS1xx | |
| Component Type | LiDAR Sensor | |
| Maximum Scanning Distance | 20m | |
| Minimum Scanning Distance | 500mm | |
| Standards/Approvals | No | |
| Maximum Response Time | 20ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Height | 102mm | |
| Length | 162mm | |
| Width | 105mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series LMS1xx | ||
Component Type LiDAR Sensor | ||
Maximum Scanning Distance 20m | ||
Minimum Scanning Distance 500mm | ||
Standards/Approvals No | ||
Maximum Response Time 20ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Height 102mm | ||
Length 162mm | ||
Width 105mm | ||
- COO (Country of Origin):
- DE
SICK LMS1xx Series Sensor, 20m Maximum Scanning Distance, 20ms Maximum Response Time - LMS131-10100 SECURITY / 1051379
This sensor is a LiDAR device designed to detect and measure distances within short to medium ranges in non-hazardous settings. It operates as a component for systems requiring Rapid optical scanning and distance feedback, interfacing via an M12 connector and meeting UKCA and CE declarations for regional conformity.
Features and Benefits:
• 20 m scanning distance provides long-range detection for monitoring
• 20 MS response time enables fast update rates for dynamic environments
• 0.5 m minimum range allows close-proximity object identification
• M12 connector ensures robust, field-ready electrical connection
• Compact 162 mm height supports integration into space-constrained assemblies
• 20 MS response time enables fast update rates for dynamic environments
• 0.5 m minimum range allows close-proximity object identification
• M12 connector ensures robust, field-ready electrical connection
• Compact 162 mm height supports integration into space-constrained assemblies
Applications
• Suitable for automated guided vehicle obstacle detection
• Ideal for perimeter monitoring in manufacturing cells
• Used with conveyor systems for object presence sensing
• Can be used for access control and area protection setups
• Ideal for perimeter monitoring in manufacturing cells
• Used with conveyor systems for object presence sensing
• Can be used for access control and area protection setups
What connector type is provided for system integration?
An M12 connector is supplied for the electrical interface.
Which approvals cover regional conformity for use?
The unit carries CE and UKCA markings for applicable regional standards.
Is the device certified for hazardous-area deployment?
It is not certified for use in hazardous areas.
What physical footprint should designers accommodate?
The sensor measures 105 x 102 mm in plan with a height of 162 mm.
