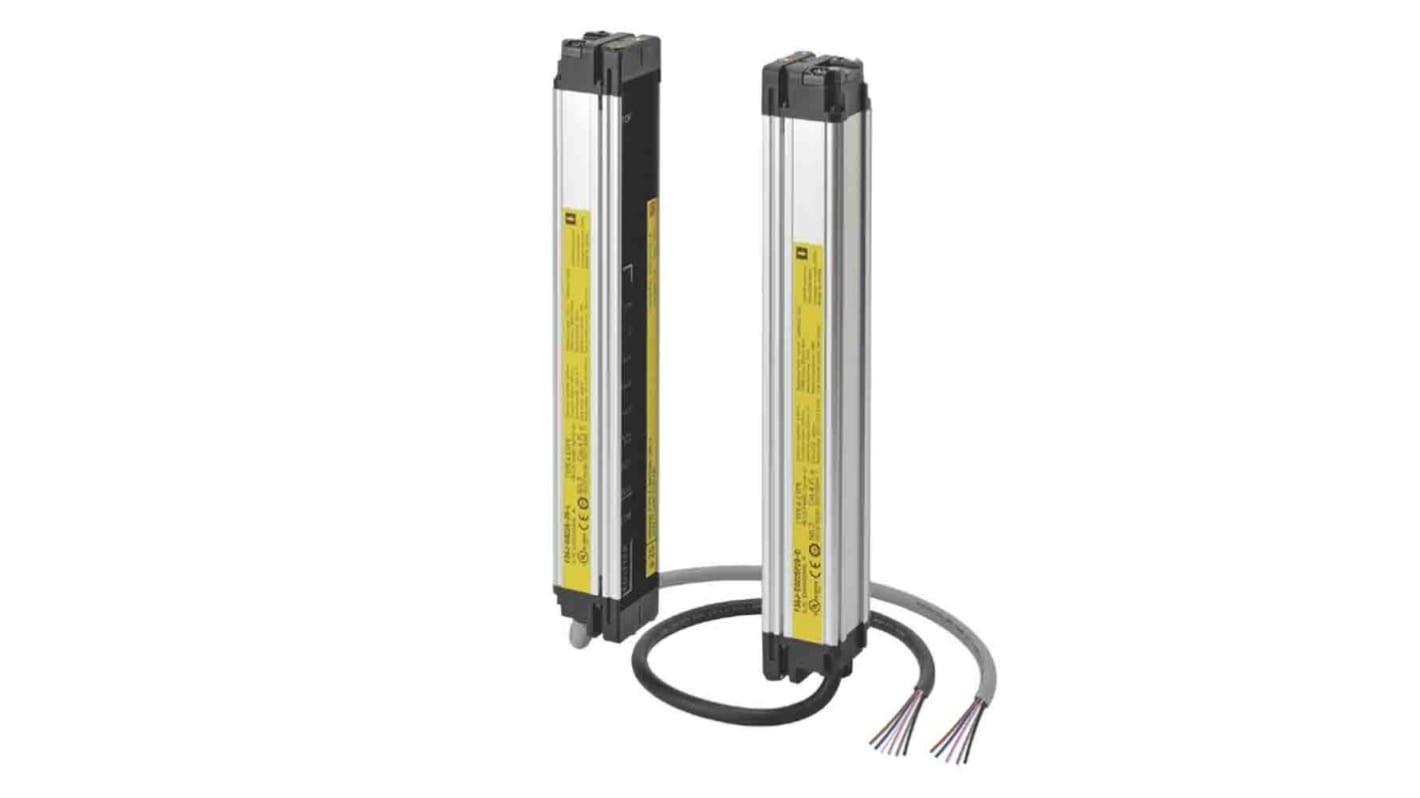

Omron F3SJ Easy Series Light Curtain Receiver, 30 Beam(s), 25 mm Resolution

모든 Light Curtains 열람하기

Subtotal (1 unit)*

₩4,377,925.50

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 8월 20일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩4,377,925.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
215-5144
제조사 부품 번호:
F3SJ-E0625P25
제조업체:
Omron
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Omron

Product Type

Light Curtain

Series

F3SJ Easy

Beam Resolution

25mm

Component Type

Receiver

Safety Type

Type 4

Standards/Approvals

No

Number of Beams

30

Protective Height

625mm

Maximum Supply Voltage

24V

Maximum Protective Width

7m

Minimum Scanning Distance

0.2m

Maximum Scanning Distance

7m

Maximum Response Time

15, 70ms

Length

625mm

Omron F3SJ Easy Series Light Curtain, 625mm Protective Height, 25mm Beam Resolution - F3SJ-E0625P25


This light curtain is a safety sensing device designed to detect intrusion into hazardous areas within automation environments. It functions as a receiver in an optoelectronic protective arrangement, providing a vertical protective zone suitable for machine guarding and personnel safety in industrial electrical, electronic and mechanical systems.

Features & Benefits


• 25mm beam pitch delivers reliable object detection at close intervals
• 15ms on-to-off switching enables prompt hazard response
• 70ms off-to-on recovery reduces nuisance interruptions after clearing
• 30 independent beams enhance detection redundancy for safety
• 24V supply compatibility simplifies integration with control systems
• Type 4 safety rating supports high-risk applications requiring strict protection

**Applications**


• Suitable for safeguarding production-line access points on assembly machines
• Ideal for presence detection on robotic workcells and pick-and-place stations
• Used for perimeter protection on automated press equipment
• Can be used for machine start-interlock on packaging lines
• Used with inspection conveyors to protect operators during adjustments

What is the maximum horisontal span this device can protect?


It can cover a protective width up to 7 m when paired with a matching transmitter across the monitored plane.

What is the shortest distance at which reliable detection is achieved?


Detection begins from 0.2 m from the receiver face, allowing close-proximity guarding of small machines.

How tall an area does the receiver monitor?


The protected height is 625 mm, defined by the contiguous Active beams in the receiver array.

How many beams does the receiver manage and what is their spacing?


The receiver monitors 30 beams spaced at 25mm intervals to form the sensing curtain.

How quickly does the device resume detection after interruption?


Following an object removal, the unit can return to an Active state within 70 MS to resume monitoring.
