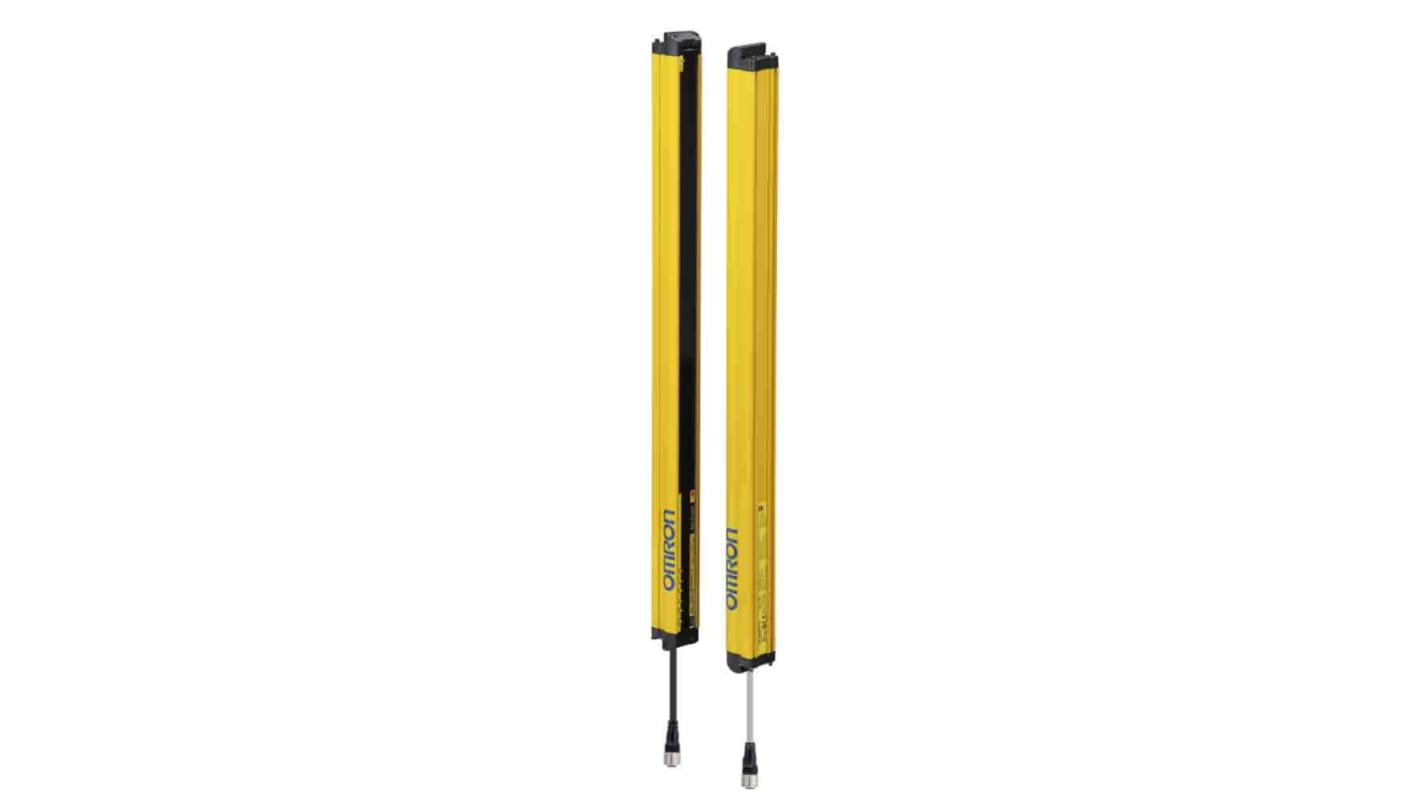

Omron F3SG-R Easy Series Light Curtain Receiver, Sender, 183 Beam(s), 14 mm Resolution

This light curtain is a safety sensor system designed to protect personnel by detecting intrusion into hazardous zones around machinery. It operates with paired transmitter and receiver components to form a protective optical barrier suitable for industrial environments, enabling machine guarding where uninterrupted detection over considerable widths and distances is required.

• 183 independent beams provide fine spatial detection
• 14mm beam spacing delivers high-resolution object sensing
• 0.3m minimum sensing range allows close-proximity protection
• 10m maximum scanning distance supports long-range installations
• 10m maximum protective width covers wide access points
• 24V supply compatibility enables standard control integration

• Suitable for safeguarding production machine perimeters
• Ideal for controlling access to automated robot cells
• Used with conveyor infeed points to protect operators
• Can be used for perimeter monitoring of packaging lines
• Used for presence detection across large safety gates

Two separate units act as sender and receiver to form a continuous multi-beam curtain across the protected aperture, creating an active detection plane between them.

It conforms to a Type 4 functional safety classification, enabling use where the highest risk reduction via light curtains is required.

The device uses 183 distinct optical beams, producing multiple detection points along the protected height.

It operates from a 24V supply, allowing straightforward connection to typical industrial control systems.
