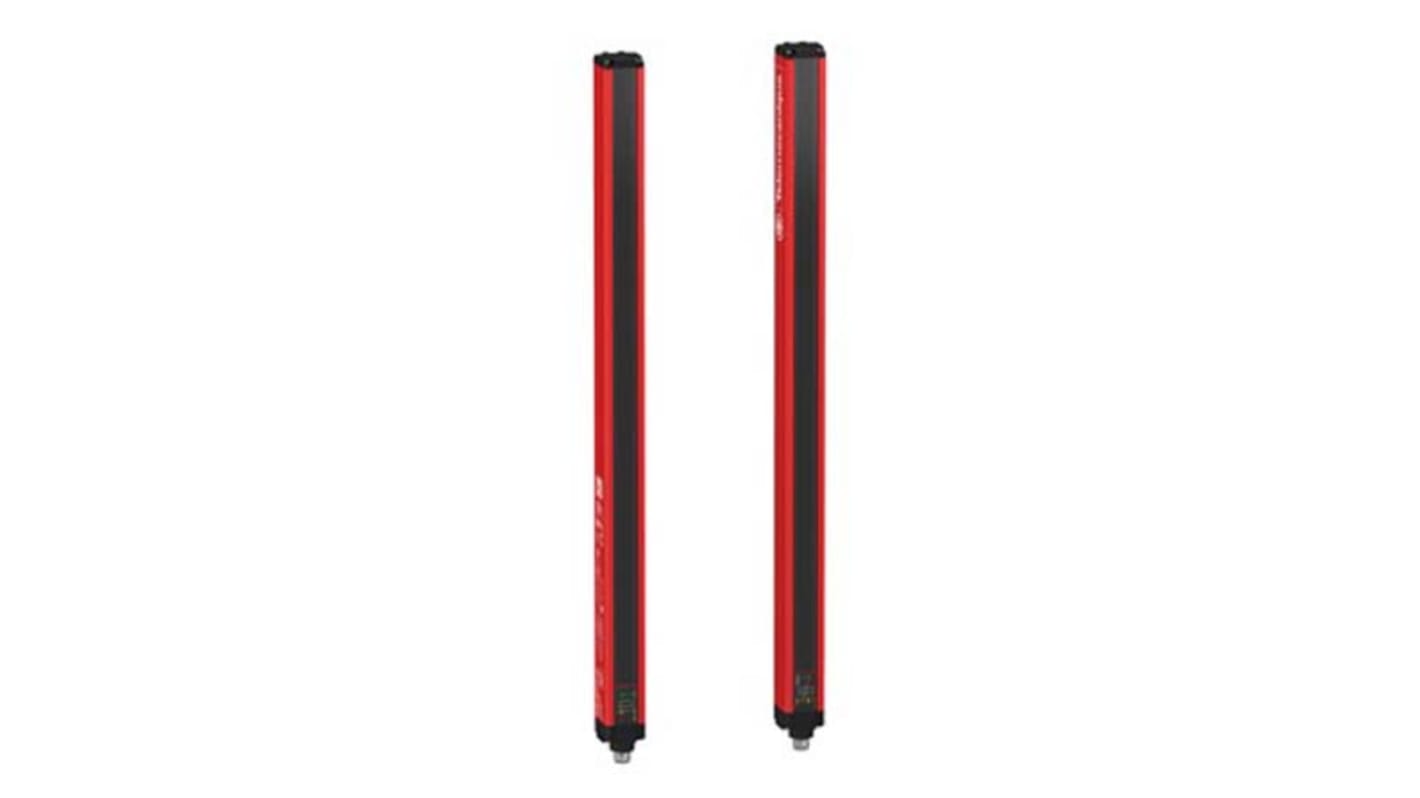

Telemecanique Sensors XUSL2E Series Preventa Light Curtain Receiver, Transmitter, 8 Beam(s), 30mm Resolution
- RS 재고 번호:
- 127-8312
- 제조 부품 번호:
- XUSL2E30H016N
- 제조업체:
- Telemecanique Sensors
Subtotal (1 pair)*
₩781,064.80
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Pair(s) | Per Pair |
|---|---|
| 1 + | ₩781,064.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 127-8312
- 제조 부품 번호:
- XUSL2E30H016N
- 제조업체:
- Telemecanique Sensors
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Telemecanique Sensors | |
| Range | Preventa | |
| Series | XUSL2E | |
| Beam Resolution | 30mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 2 | |
| SIL IEC 61508 | 1 | |
| PL EN ISO 13849-1 | c | |
| Number of Beams | 8 | |
| Protective Height | 160mm | |
| Minimum Scanning Distance | 0m | |
| Maximum Scanning Distance | 4 m, 12 m | |
| Maximum Response Time | 4.5 ms | |
| Length | 31mm | |
| Supply Voltage | 24 V dc | |
| Height | 213mm | |
| Width | 29.4mm | |
| Features | 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | |
| Application | Hand | |
| Dimensions | 31 x 29.4 x 213 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Telemecanique Sensors | ||
Range Preventa | ||
Series XUSL2E | ||
Beam Resolution 30mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 2 | ||
SIL IEC 61508 1 | ||
PL EN ISO 13849-1 c | ||
Number of Beams 8 | ||
Protective Height 160mm | ||
Minimum Scanning Distance 0m | ||
Maximum Scanning Distance 4 m, 12 m | ||
Maximum Response Time 4.5 ms | ||
Length 31mm | ||
Supply Voltage 24 V dc | ||
Height 213mm | ||
Width 29.4mm | ||
Features 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | ||
Terminal Type 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | ||
Application Hand | ||
Dimensions 31 x 29.4 x 213 mm | ||
Preventa XUSL Safety Light Curtains
Telemecanique Preventa safety light curtains from the XUSL Series. Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.
Features & Benefits
Automatic or Manual start
IP65/67 rated
IP65/67 rated
Light Curtain
