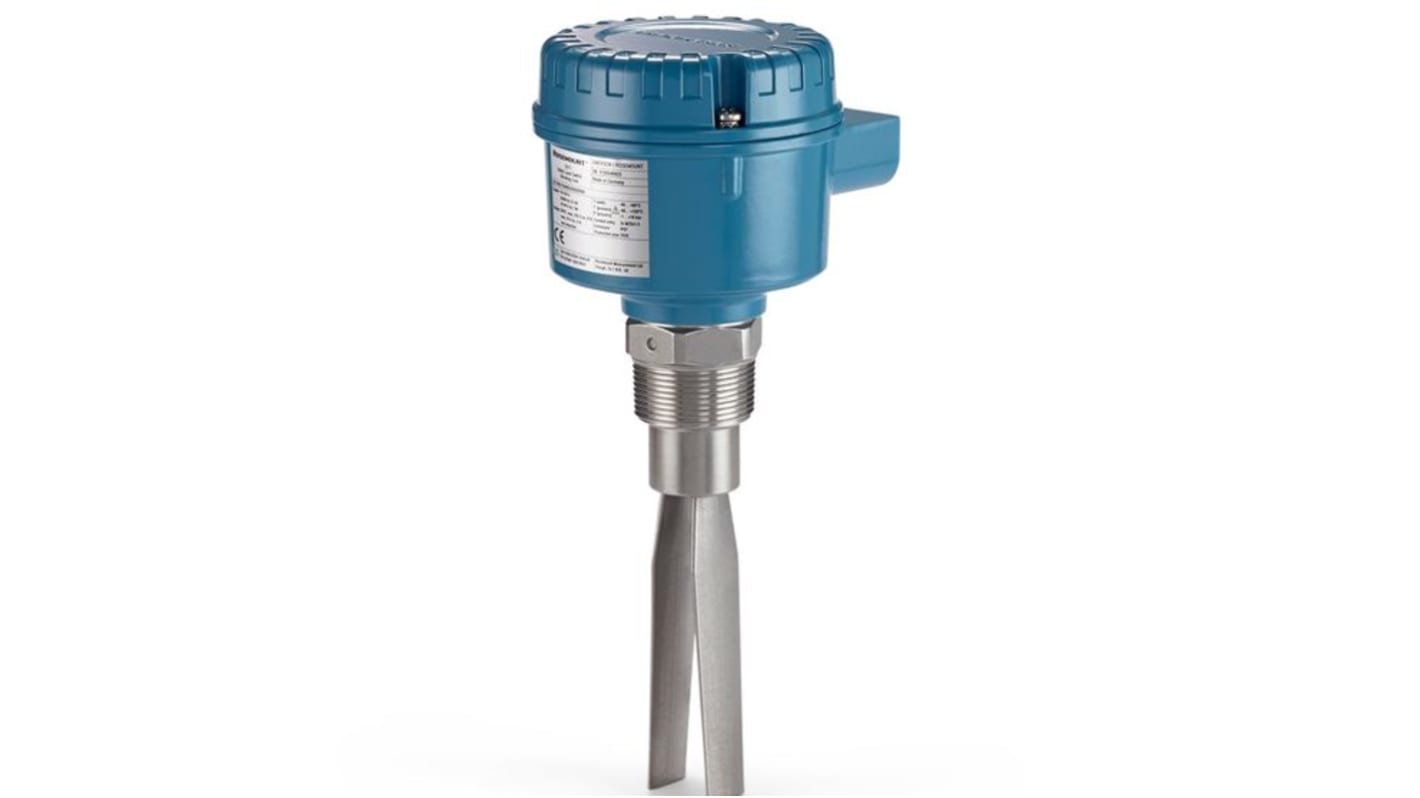

Rosemount 2511 Series Vibrating Fork Level Switch, Chassis, Housing Aluminium
- RS 제품 번호:
- 269-1922
- 제조사 부품 번호:
- 2511MS25NNBVA0000ND
- 제조업체:
- Rosemount
Subtotal (1 unit)*
₩1,160,523.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,160,523.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 269-1922
- 제조사 부품 번호:
- 2511MS25NNBVA0000ND
- 제조업체:
- Rosemount
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Rosemount | |
| Product Type | Level Switch | |
| Device Type | Vibrating Fork | |
| Mount Type | Chassis | |
| Housing Material | Aluminium | |
| Cable Length | 25m | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | FM Class 3810:2018 ANSI/NEMA® 250:1991 ANSI/IEC 60529:2004 | |
| Series | 2511 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Rosemount | ||
Product Type Level Switch | ||
Device Type Vibrating Fork | ||
Mount Type Chassis | ||
Housing Material Aluminium | ||
Cable Length 25m | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals FM Class 3810:2018 ANSI/NEMA® 250:1991 ANSI/IEC 60529:2004 | ||
Series 2511 | ||
제외
- COO (Country of Origin):
- DE
The Rosemount solids level switch uses the principle of a tuning fork and a piezo-electric crystal to oscillate the forks at their natural frequency. Changes to the oscillation frequency are continuously monitored by electronics which varies depending on whether the fork is covered or uncovered by a solids medium.
Ideal for use with fine grained and powdered materials
Suitable for hygienic applications
Forks are made from stainless steel
