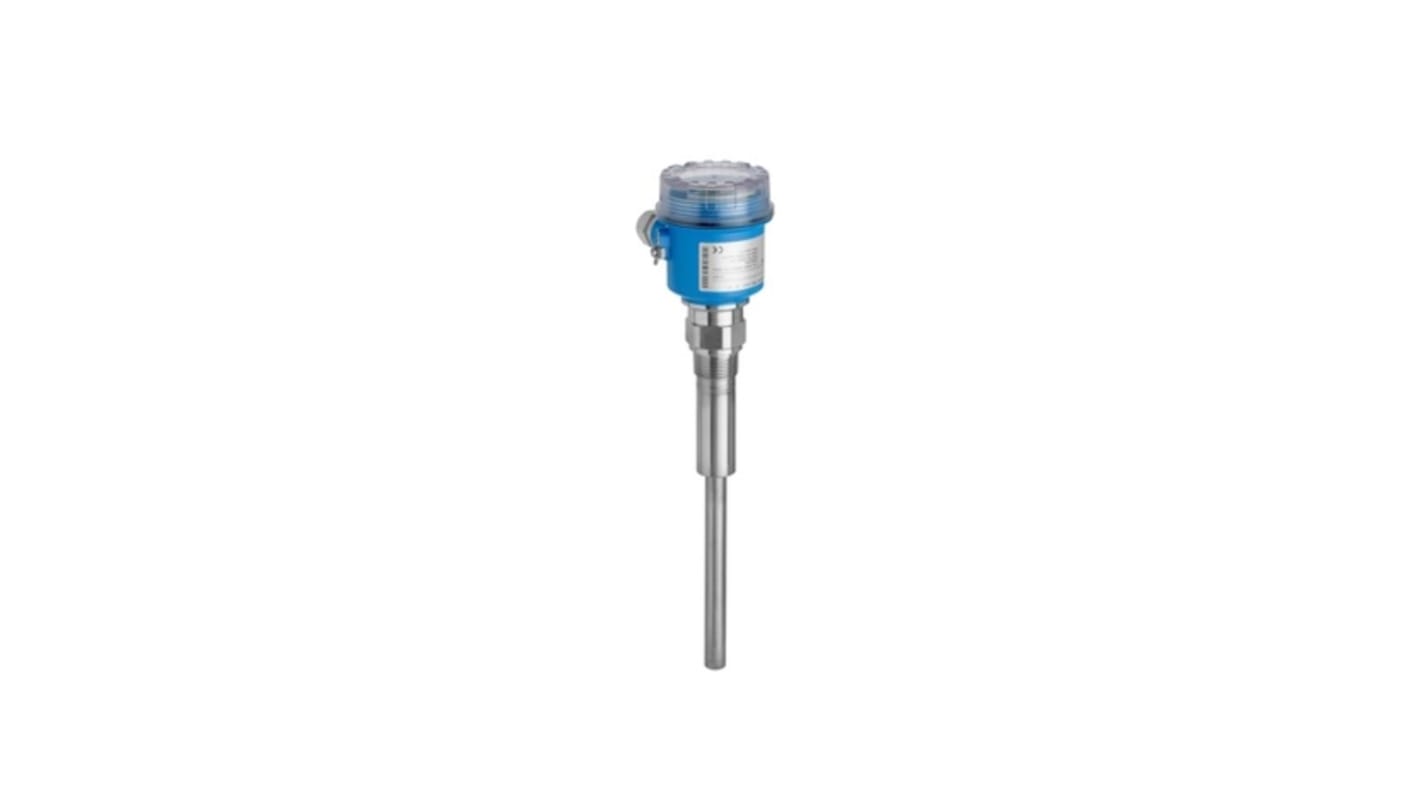

Endress+Hauser FTM20 Series Vibration Level Switch Level Switch, Threaded Mount, IECEx, ATEX-Rated, Housing Polyester

모든 Level Sensors 열람하기

Subtotal (1 unit)*

₩1,105,020.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 28 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,105,020.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
267-9350
제조사 부품 번호:
FTM20-AG42A
제조업체:
Endress+Hauser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Endress+Hauser

Device Type

Vibration Level Switch

Product Type

Level Switch

Mount Type

Threaded Mount

Housing Material

Polyester

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Maximum DC Voltage

45V dc

Maximum AC Voltage

253V ac

Maximum Pressure

25bar

Standards/Approvals

CE mark

Series

FTM20

Hazardous Area Certification

IECEx, ATEX

COO (Country of Origin):
DE

Endress+Hauser FTM20 Series Level Switch, 70°C Maximum Operating Temperature, 25 Bar Maximum Pressure - FTM20-AG42A


This level switch is a vibration-operated sensor designed for point detection in industrial fluid and bulk material systems. It is intended for threaded installation and functions across a broad temperature span, providing discrete level indication in processes where robust hazardous-area performance is required.

Features and Benefits:


• Polyester housing resists environmental exposure while remaining lightweight
• EPDM gasket prevents ingress and maintains sealing integrity
• Operates reliably between -40°C and 70°C for varied process conditions
• Withstands system pressures up to 25 bar for pressurised vessels
• Compatible with up to 253V ac and 45V DC for flexible electrical integration
• Certified for IECEx and ATEX environments to permit use in explosive atmospheres

Applications


• Suitable for point level detection in storage tanks and hoppers
• Ideal for use on pressurised process vessels requiring 25 bar capability
• Used with hazardous-area installations where IECEx and ATEX certification is needed
• Can be used for liquid and interface sensing in temperature-varying processes

What mounting method does it require for installation?


It is designed for a threaded mount which enables secure attachment to standard process ports and fittings.

How does the sealing arrangement perform in chemical environments?


The gasket material is EPDM which provides resistance to many aqueous solutions and helps maintain a reliable seal under typical process conditions.

What electrical supply options are supported for signalling?


The device accepts alternating supply up to 253V ac and direct supply up to 45V DC, allowing integration with common control systems.

Is the enclosure suitable for non-metallic installations?


The outer shell is made from polyester, offering a durable non-metallic option where metal enclosures are not desirable.
