Siemens Pointek CLS Series Capacitance Point Level Switch Level Switch, Threaded Mount, ATEX 1G 1,2G IIC-Rated, Housing
- RS 제품 번호:
- 230-8634
- 제조사 부품 번호:
- 7ML5610-0BD20
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩723,856.40
마지막 RS 재고
- 최종적인 3 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 + | ₩723,856.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 230-8634
- 제조사 부품 번호:
- 7ML5610-0BD20
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Device Type | Capacitance Point Level Switch | |
| Product Type | Level Switch | |
| Mount Type | Threaded Mount | |
| Housing Material | Synthetic Polyphenylene Sulphide | |
| Cable Length | 1.5m | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum DC Voltage | 60V dc | |
| Maximum Current | 82mA | |
| Maximum Pressure | 10bar | |
| Standards/Approvals | FM, CE, CSA | |
| Hazardous Area Certification | ATEX 1G 1,2G IIC | |
| Series | Pointek CLS | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Device Type Capacitance Point Level Switch | ||
Product Type Level Switch | ||
Mount Type Threaded Mount | ||
Housing Material Synthetic Polyphenylene Sulphide | ||
Cable Length 1.5m | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 100°C | ||
Maximum DC Voltage 60V dc | ||
Maximum Current 82mA | ||
Maximum Pressure 10bar | ||
Standards/Approvals FM, CE, CSA | ||
Hazardous Area Certification ATEX 1G 1,2G IIC | ||
Series Pointek CLS | ||
- COO (Country of Origin):
- MT

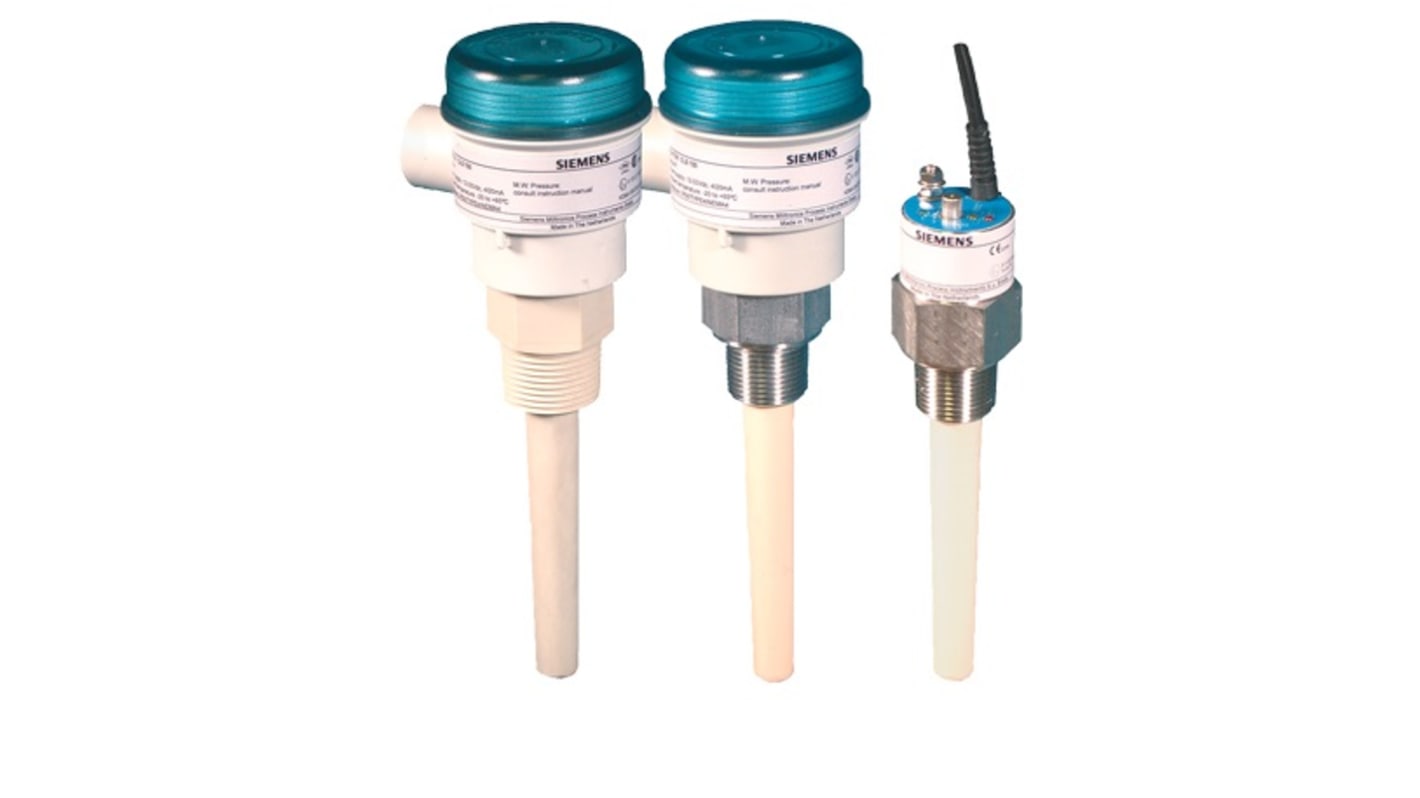

The Siemens Pointek CLS100 RF capacitance point level switch has PPS process connection. It detects level and interface in liquids, solids, slurries, and foam.
Compact, with 100 mm (4 inch) insertion
Adaptable sensitivity
