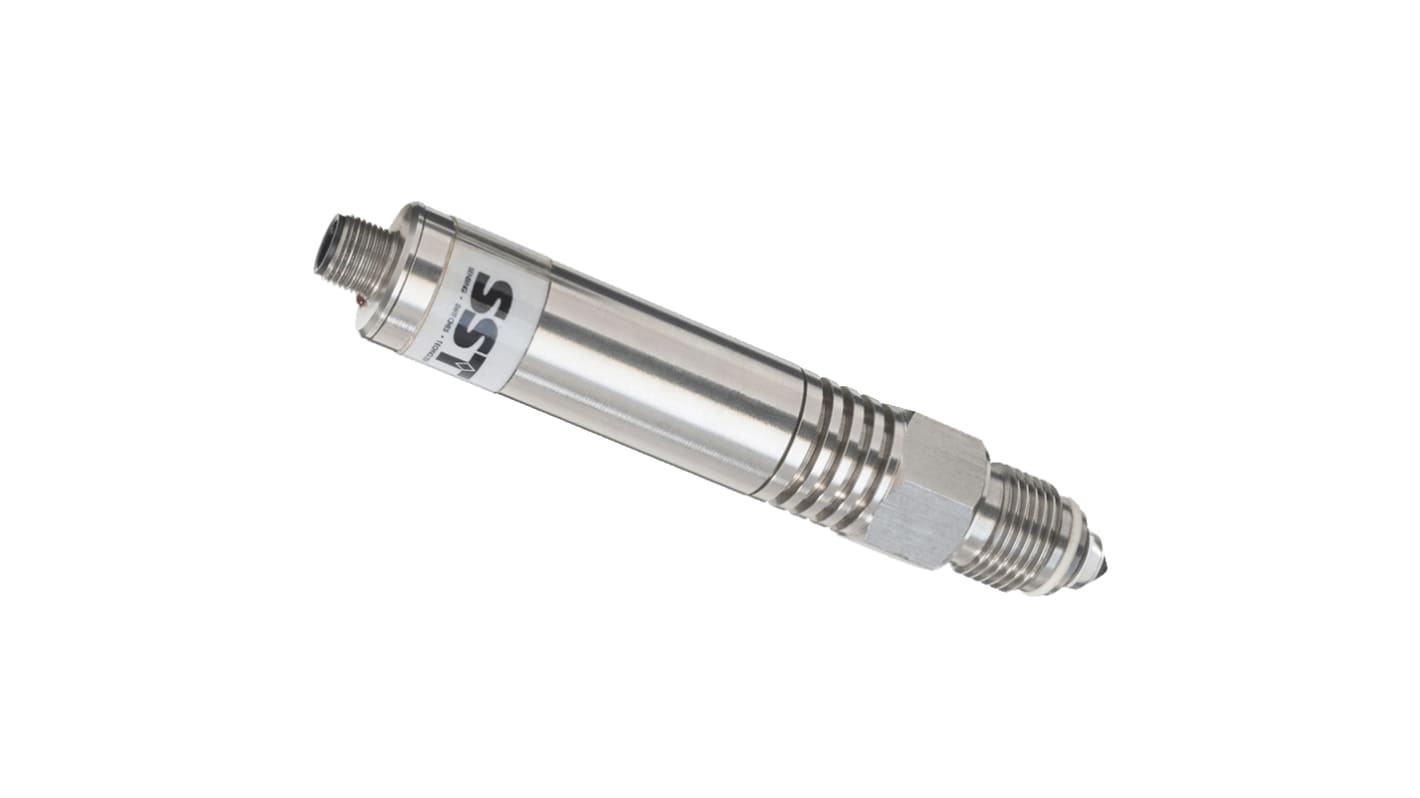

SSt Sensing Limited POS Series Liquid Level Switch Level Switch, Threaded Mount, NO-Rated, Housing 304 Stainless Steel
- RS 제품 번호:
- 193-6800
- 제조사 부품 번호:
- POS287414
- 제조업체:
- SSt Sensing Limited
Subtotal (1 unit)*
₩539,358.30
일시적 품절
- 2026년 6월 24일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩539,358.30 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 193-6800
- 제조사 부품 번호:
- POS287414
- 제조업체:
- SSt Sensing Limited
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SSt Sensing Limited | |
| Product Type | Level Switch | |
| Device Type | Liquid Level Switch | |
| Mount Type | Threaded Mount | |
| Housing Material | 304 Stainless Steel | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 140°C | |
| Interface Type | PNP | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 25mA | |
| Maximum Pressure | 80bar | |
| Standards/Approvals | No | |
| Series | POS | |
| Hazardous Area Certification | NO | |
| 모두 선택 | ||
|---|---|---|
브랜드 SSt Sensing Limited | ||
Product Type Level Switch | ||
Device Type Liquid Level Switch | ||
Mount Type Threaded Mount | ||
Housing Material 304 Stainless Steel | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 140°C | ||
Interface Type PNP | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 25mA | ||
Maximum Pressure 80bar | ||
Standards/Approvals No | ||
Series POS | ||
Hazardous Area Certification NO | ||
Designed for applications requiring a robust metal housing and a wide operating temperature range
Reverse polarity, ESD, transient over-voltage and short circuit protected
Wide supply voltage ranges
N and P type output configurations, capable of sinking or sourcing up to 200mA, can directly drive small loads
Standard and extended temperature ranges available
Stainless steel housing with simex glass sensing tip
Choice of terminations
Very high operating pressure
LED output indication
Solid state so no moving parts to cause unreliability
Fast response time
Repeatable switching point
Very robust construction permitting use in a wide range of demanding applications
Compatible with most fluids and chemicals
SST Sensing’s highest operating temperature liquid level switch
