Flowline LI55 Series Level Controller -, DIN Rail 1 265V-Rated SPDT Relay
- RS 제품 번호:
- 889-1548
- 제조사 부품 번호:
- LI55-1401
- 제조업체:
- Flowline
Subtotal (1 unit)*
₩1,709,890.65
제조사가 재고 비축중
- 2026년 6월 26일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,709,890.65 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 889-1548
- 제조사 부품 번호:
- LI55-1401
- 제조업체:
- Flowline
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Flowline | |
| Number of Inputs | 1 | |
| Product Type | Level Controller | |
| Probe Voltage | 10V | |
| Overall Length | 119mm | |
| Mount Type | DIN Rail | |
| Response Time | 999.9s | |
| Overall Depth | 136mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 65°C | |
| Maximum Supply Voltage | 265V | |
| IP Rating | IP65 | |
| Standards/Approvals | 508, CE, cUL, E160849, UL | |
| Overall Width | 62mm | |
| Hazardous Area Certification | No | |
| Current Rating | 3A | |
| Number of Outputs | 4 | |
| Series | LI55 | |
| Output Type | SPDT Relay | |
| 모두 선택 | ||
|---|---|---|
브랜드 Flowline | ||
Number of Inputs 1 | ||
Product Type Level Controller | ||
Probe Voltage 10V | ||
Overall Length 119mm | ||
Mount Type DIN Rail | ||
Response Time 999.9s | ||
Overall Depth 136mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 65°C | ||
Maximum Supply Voltage 265V | ||
IP Rating IP65 | ||
Standards/Approvals 508, CE, cUL, E160849, UL | ||
Overall Width 62mm | ||
Hazardous Area Certification No | ||
Current Rating 3A | ||
Number of Outputs 4 | ||
Series LI55 | ||
Output Type SPDT Relay | ||
제외

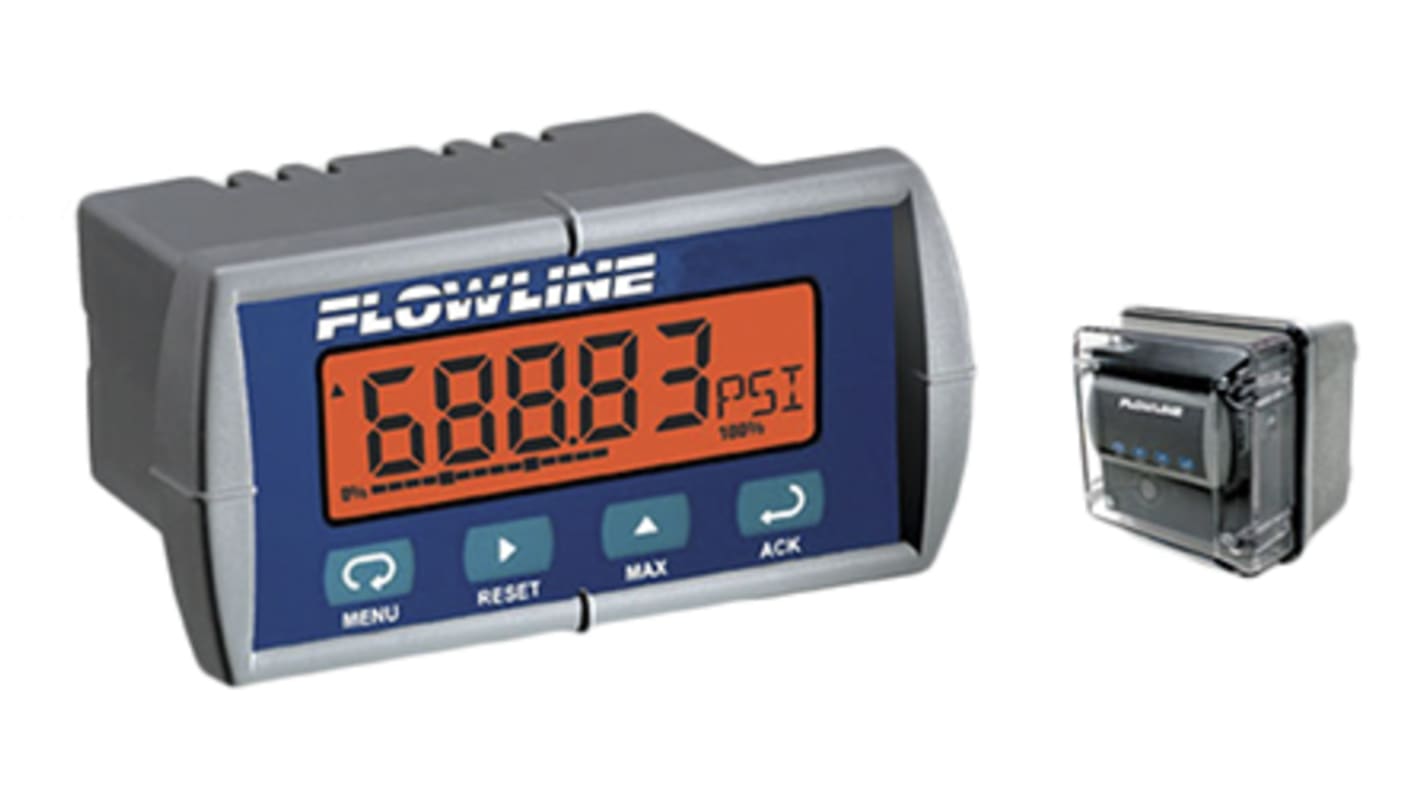

Flowline DataView™ Level Controller
Flowline's general purpose range of level controller displays which cover an assortment of engineering units. Comes equipped with either a 4-20mA or 0-10mA level sensor inputs, with various configurations to ensure your application is covered. Optional 2 or 4 programmable relays & repeater are available for added functionality
Features and Benefits
Intuitive setup system allows for simple configuration and range adjustment, reducing downtime
Password protected non-volatile memory for secure parameters
Direct control of pumps, valves and alarms can be achieved via an additional 2 or 4 relay
An assortment of units can be displayed on the 6 digit LED display, such as gallons, litres, inches, feet, meters & liquid remainder percentage
Flowline Sensors
