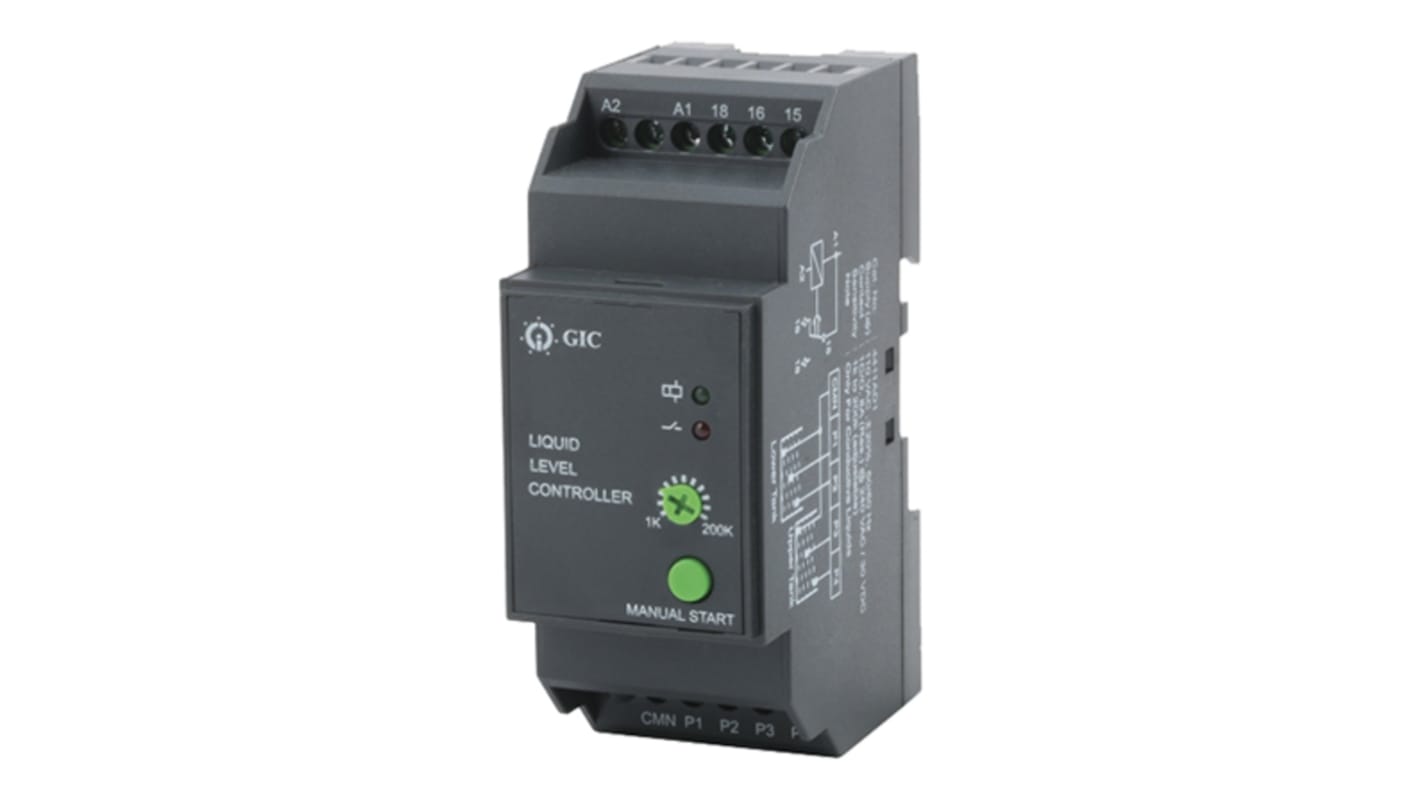

GIC 44 Series Level Controller -, DIN Rail Voltage Input 400 V-Rated Relay
- RS 제품 번호:
- 884-2464
- 제조사 부품 번호:
- 4431AD1
- 제조업체:
- GIC
Subtotal (1 unit)*
₩96,669.60
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩96,669.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 884-2464
- 제조사 부품 번호:
- 4431AD1
- 제조업체:
- GIC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | GIC | |
| Product Type | Level Controller | |
| Probe Voltage | 12V | |
| Overall Length | 90mm | |
| Mount Type | DIN Rail | |
| Response Time | 10s | |
| Overall Depth | 65 mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Maximum Supply Voltage | 400V | |
| IP Rating | IP40, IP20 | |
| Overall Width | 36mm | |
| Standards/Approvals | CE | |
| Hazardous Area Certification | No | |
| Input Type | Voltage | |
| Current Rating | 8 A | |
| Sensitivity | 200kΩ | |
| Output Type | Relay | |
| Series | 44 | |
| 모두 선택 | ||
|---|---|---|
브랜드 GIC | ||
Product Type Level Controller | ||
Probe Voltage 12V | ||
Overall Length 90mm | ||
Mount Type DIN Rail | ||
Response Time 10s | ||
Overall Depth 65 mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Maximum Supply Voltage 400V | ||
IP Rating IP40, IP20 | ||
Overall Width 36mm | ||
Standards/Approvals CE | ||
Hazardous Area Certification No | ||
Input Type Voltage | ||
Current Rating 8 A | ||
Sensitivity 200kΩ | ||
Output Type Relay | ||
Series 44 | ||
- COO (Country of Origin):
- IN
GIC Liquid Level Controllers
Fully Automatic operation enabling both draining and filling at the same time with a single device;Protects submersible pumps against dry running and prevents overfilling;Enables maximum utilization of incoming liquid supply;Specially designed corrosion and shock resistant sensors to ensure problem free operation
Features and Benefits
Includes provision for Manual start;Adjustable sensitivity level from 1k to 200k Ohm;Adjustable reaction timer from 0.1s to 10s
• This Series 44 Level Controller can be used with a GIC level sensor such as 182-8937
GIC Supply Monitor Relays
