ams OSRAM 3.2 V RGB LED SMT Surface KRTBAELPS2.32 KRTBAELPS2.32-1V7A-JW+6B5C-D8+3S4U-7Z
- RS 제품 번호:
- 254-1285
- 제조사 부품 번호:
- KRTBAELPS2.32-1V7A-JW+6B5C-D8+3S4U-7Z
- 제조업체:
- ams OSRAM
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 254-1285
- 제조사 부품 번호:
- KRTBAELPS2.32-1V7A-JW+6B5C-D8+3S4U-7Z
- 제조업체:
- ams OSRAM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ams OSRAM | |
| Product Type | LED | |
| LED Colour | RGB | |
| Maximum Forward Current | 50mA | |
| Package Type | SMT | |
| Mount Type | Surface | |
| Number of LEDs | 3 | |
| Forward Voltage | 3.2V | |
| Dominant Wavelength | 632nm | |
| Standards/Approvals | RoHS | |
| Series | KRTBAELPS2.32 | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 ams OSRAM | ||
Product Type LED | ||
LED Colour RGB | ||
Maximum Forward Current 50mA | ||
Package Type SMT | ||
Mount Type Surface | ||
Number of LEDs 3 | ||
Forward Voltage 3.2V | ||
Dominant Wavelength 632nm | ||
Standards/Approvals RoHS | ||
Series KRTBAELPS2.32 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

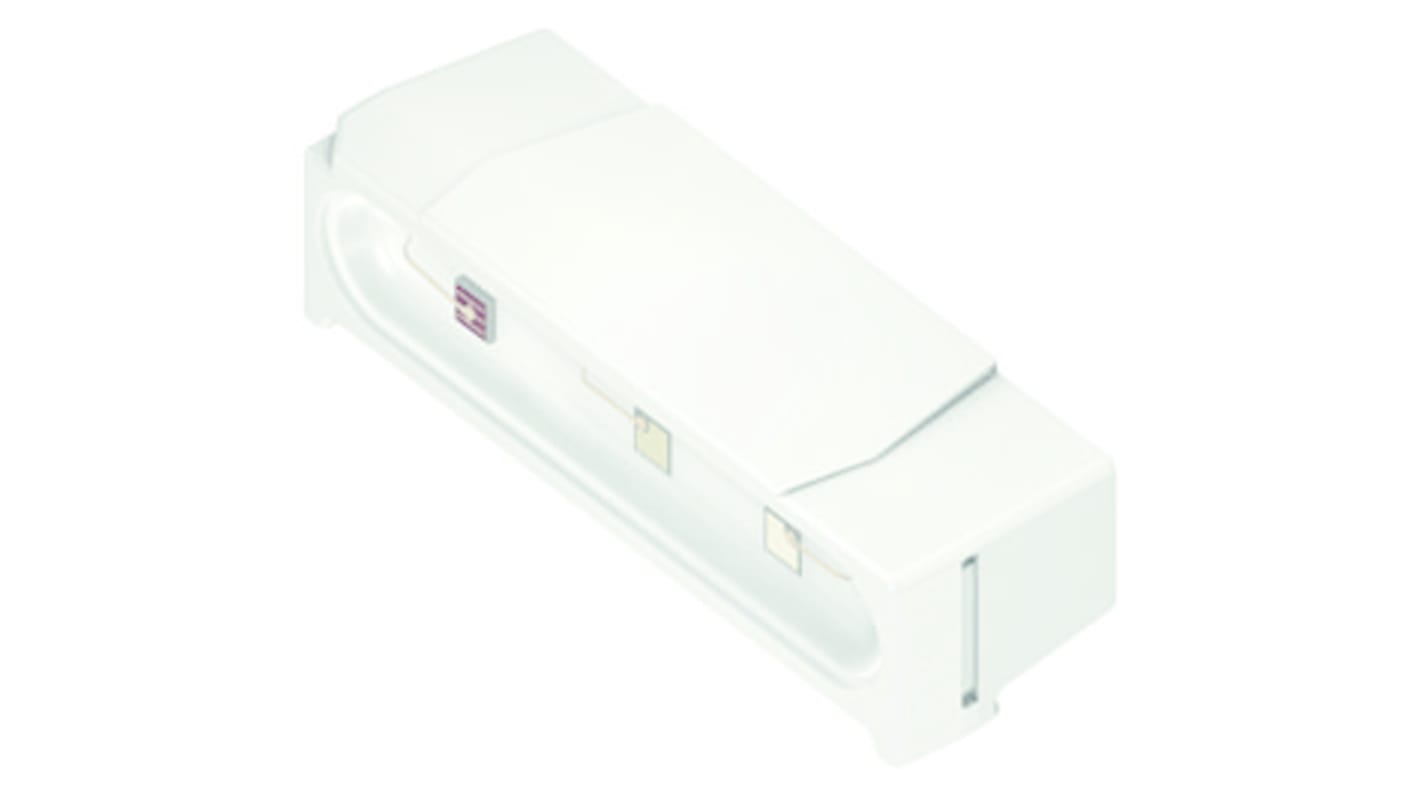

The ams OSRAM OSIRE RGB side looker LED is specifically designed for automotive interior applications. It offers individually addressable LED chips for a maximum of flexibility in terms of colour point, driver selection and interconnection. Due to the low profile, it is ideally suited for coupling into thin light guides and enables ultra compact designs. The housing material's temperature stability has been optimized for improved compatibility to suitable IMSE processing.
Package: white SMT package, colourless clear silicone resin
Chip technology: Thin film / UX:3
Typical Radiation: 120° (Lambertian emitter)
Corrosion Robustness Class: 3B
Qualifications: AEC-Q102 Qualified
ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
