Wurth Elektronik 3.2 V White LED 5630 Surface Mount WL-SWTP
- RS 제품 번호:
- 210-8081
- 제조사 부품 번호:
- 158563230A
- 제조업체:
- Wurth Elektronik

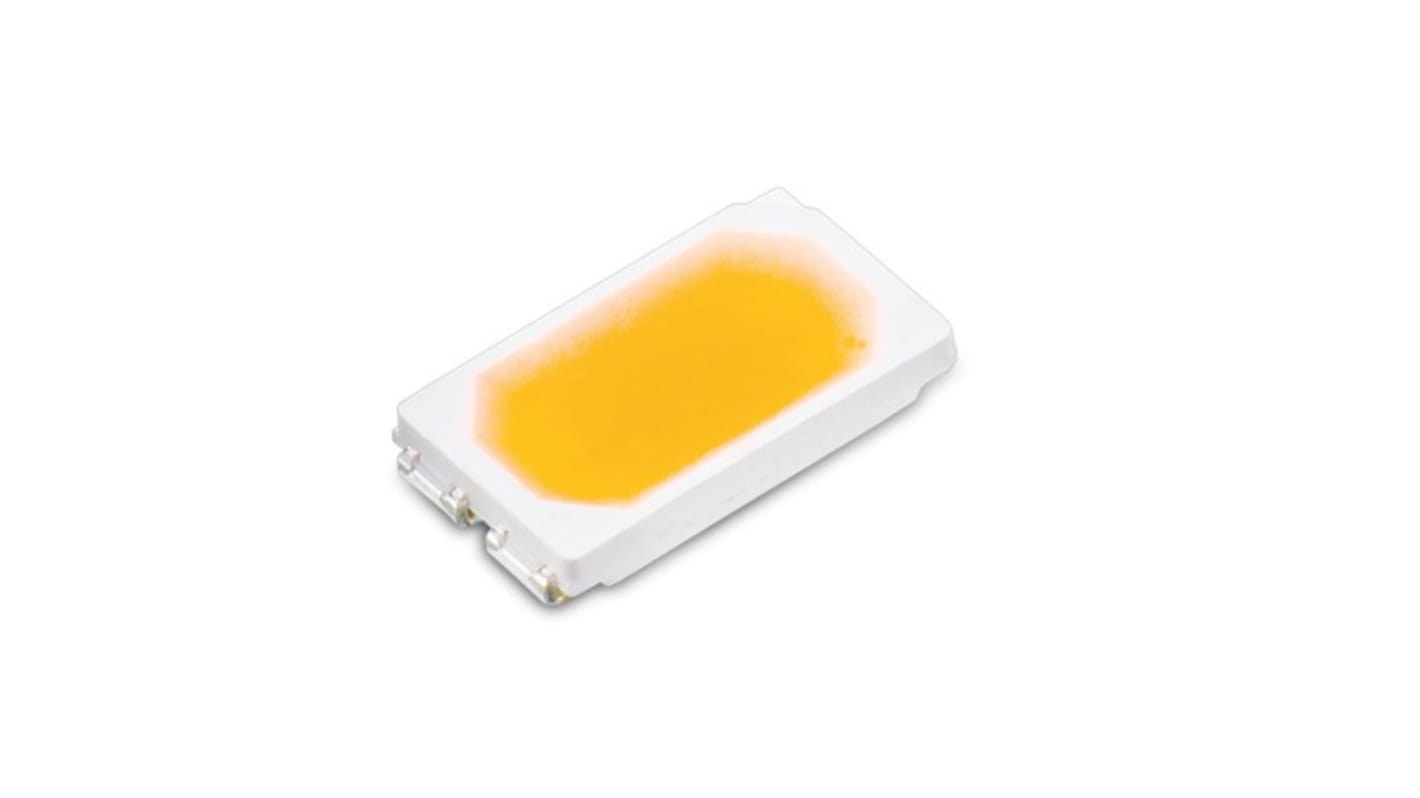

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 210-8081
- 제조사 부품 번호:
- 158563230A
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| LED Colour | White | |
| Product Type | LED | |
| Maximum Forward Current | 180mA | |
| Package Type | 5630 | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of LEDs | 1 | |
| Maximum Power Dissipation | 580mW | |
| Forward Voltage | 3.2V | |
| Viewing Angle | 120 ° | |
| Colour Rendering Index CRI | 85% | |
| LED Luminous Flux | 32 lm | |
| Standards/Approvals | RoHS, REACH | |
| Series | WL-SWTP | |
| Lens Colour | Clear | |
| Lens Finish | Clear | |
| Colour Temperature | 3000k | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
LED Colour White | ||
Product Type LED | ||
Maximum Forward Current 180mA | ||
Package Type 5630 | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of LEDs 1 | ||
Maximum Power Dissipation 580mW | ||
Forward Voltage 3.2V | ||
Viewing Angle 120 ° | ||
Colour Rendering Index CRI 85% | ||
LED Luminous Flux 32 lm | ||
Standards/Approvals RoHS, REACH | ||
Series WL-SWTP | ||
Lens Colour Clear | ||
Lens Finish Clear | ||
Colour Temperature 3000k | ||
Automotive Standard No | ||
The Wurth Elektronik 5630 series WL-SWTP surface mount LED has top view water clear type lens with warm white emitting colour. It has typical 2.8V forward voltage and 32lm luminous flux. The viewing angle is 120° with 3000K correlated colour temperature.
Slim and miniature size
Low power consumption
High CRI
Fast switching
