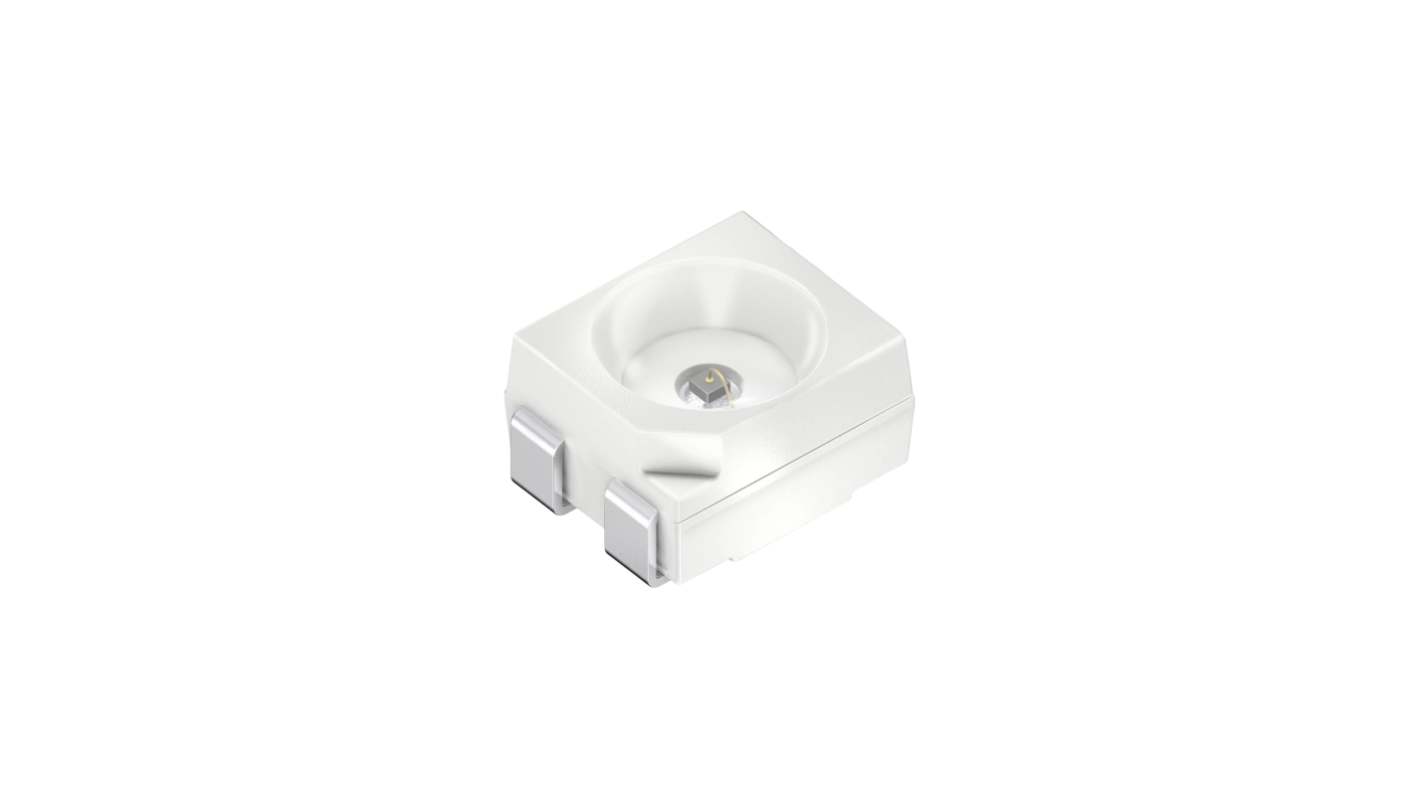

ams OSRAM 2.2 V Yellow LED PLCC 4 Surface LY E67F.01 LY E67F.01-7B8C-36-G3R3-S
- RS 제품 번호:
- 279-915
- 제조사 부품 번호:
- LY E67F.01-7B8C-36-G3R3-S
- 제조업체:
- ams OSRAM
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 reel of 2000 units)*
₩382,200.00
일시적 품절
- 2026년 9월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2000 + | ₩191.10 | ₩380,640.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 279-915
- 제조사 부품 번호:
- LY E67F.01-7B8C-36-G3R3-S
- 제조업체:
- ams OSRAM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ams OSRAM | |
| LED Colour | Yellow | |
| Product Type | LED | |
| Package Type | PLCC 4 | |
| Maximum Forward Current | 70mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Maximum Power Dissipation | 0.11W | |
| Forward Voltage | 2.2V | |
| Viewing Angle | 120 ° | |
| Lens Dimensions | 3.2 x 2.8 x 1.9 mm | |
| LED Luminosity | 2240 to 4500 mcd | |
| LED Luminous Flux | 7110 to 12750 mlm | |
| Standards/Approvals | AEC-Q102 | |
| Dominant Wavelength | 590nm | |
| Series | LY E67F.01 | |
| Lens Colour | Clear | |
| Automotive Standard | AEC-Q102 | |
| 모두 선택 | ||
|---|---|---|
브랜드 ams OSRAM | ||
LED Colour Yellow | ||
Product Type LED | ||
Package Type PLCC 4 | ||
Maximum Forward Current 70mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Maximum Power Dissipation 0.11W | ||
Forward Voltage 2.2V | ||
Viewing Angle 120 ° | ||
Lens Dimensions 3.2 x 2.8 x 1.9 mm | ||
LED Luminosity 2240 to 4500 mcd | ||
LED Luminous Flux 7110 to 12750 mlm | ||
Standards/Approvals AEC-Q102 | ||
Dominant Wavelength 590nm | ||
Series LY E67F.01 | ||
Lens Colour Clear | ||
Automotive Standard AEC-Q102 | ||
The OSRAM Opto Semiconductors OSRAM Power TOPLED is a powerful member of the TOPLED family. Thanks to its high luminous efficacy, it is Ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
Thinfilm chip technology
3B Class of corrosion robustness
AEC-Q102 Qualified with RV-level 1
