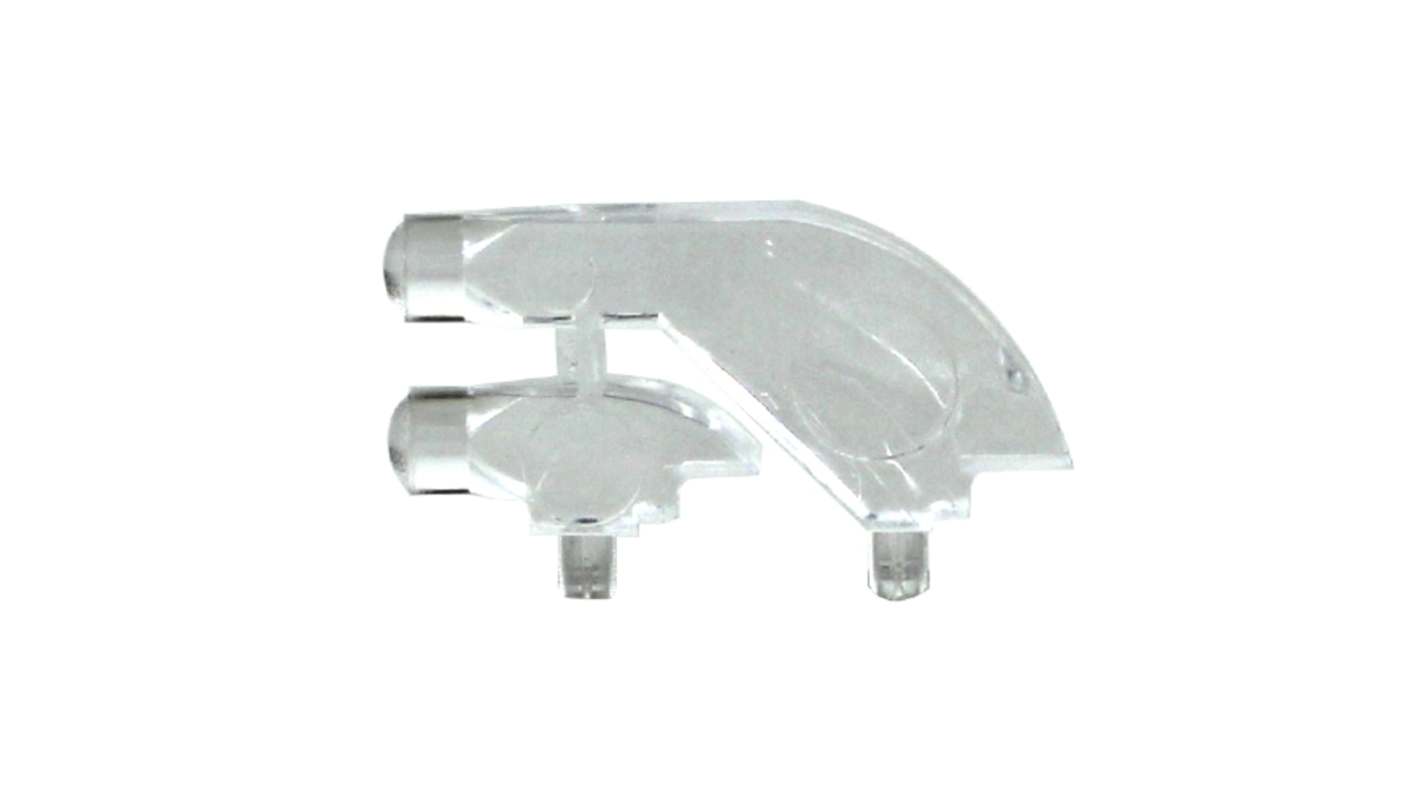

7511A62 VCC Through Hole 2-Way Right Angle Rigid LED Light Pipe Clear LED Included included

모든 LED Light Pipes 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 pack of 5 units)*

₩19,520.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 10월 05일 부터 145 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
5 - 45₩3,904.00₩19,520.00
50 - 245₩3,160.00₩15,800.00
250 - 495₩2,424.00₩12,120.00
500 +₩2,148.00₩10,740.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
434-303
제조사 부품 번호:
7511A62
제조업체:
VCC
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

VCC

Product Type

LED Light Pipe

Flexible/Rigid

Rigid

Orientation

Right Angle

Length

0.783in

Mount Type

Through Hole

Number of Ways

2

LED Included

Yes

Lens Colour

Clear

Inside Diameter

3.1mm

Number of Light Pipes

2

Light Pipe Shape

Round

Outside Diameter

8.18mm

Standards/Approvals

REACH, UL94V-O, RoHS

Configuration Rows x Columns

1 x 2

Series

7511A

제외

COO (Country of Origin):
MX
The VCC Optical Light Pipe is precision-engineered using ray tracing technology to provide bright, optically precise, and even indication, resulting in an attractive appearance. It offers ESD protection for enhanced reliability and features high contrast with a wide viewing angle, ensuring greater visibility. The light pipe is available in a variety of colours, allowing for added contrast and aesthetic appeal. Parts are inserted after reflow, which enables LED pad inspection before assembly

Available in UL94V O

Low profile for height constrained applications

Large lens provides high visibility

V 0 flame rated polycarbonate light pipe material

Shelf life is more than 10 years
