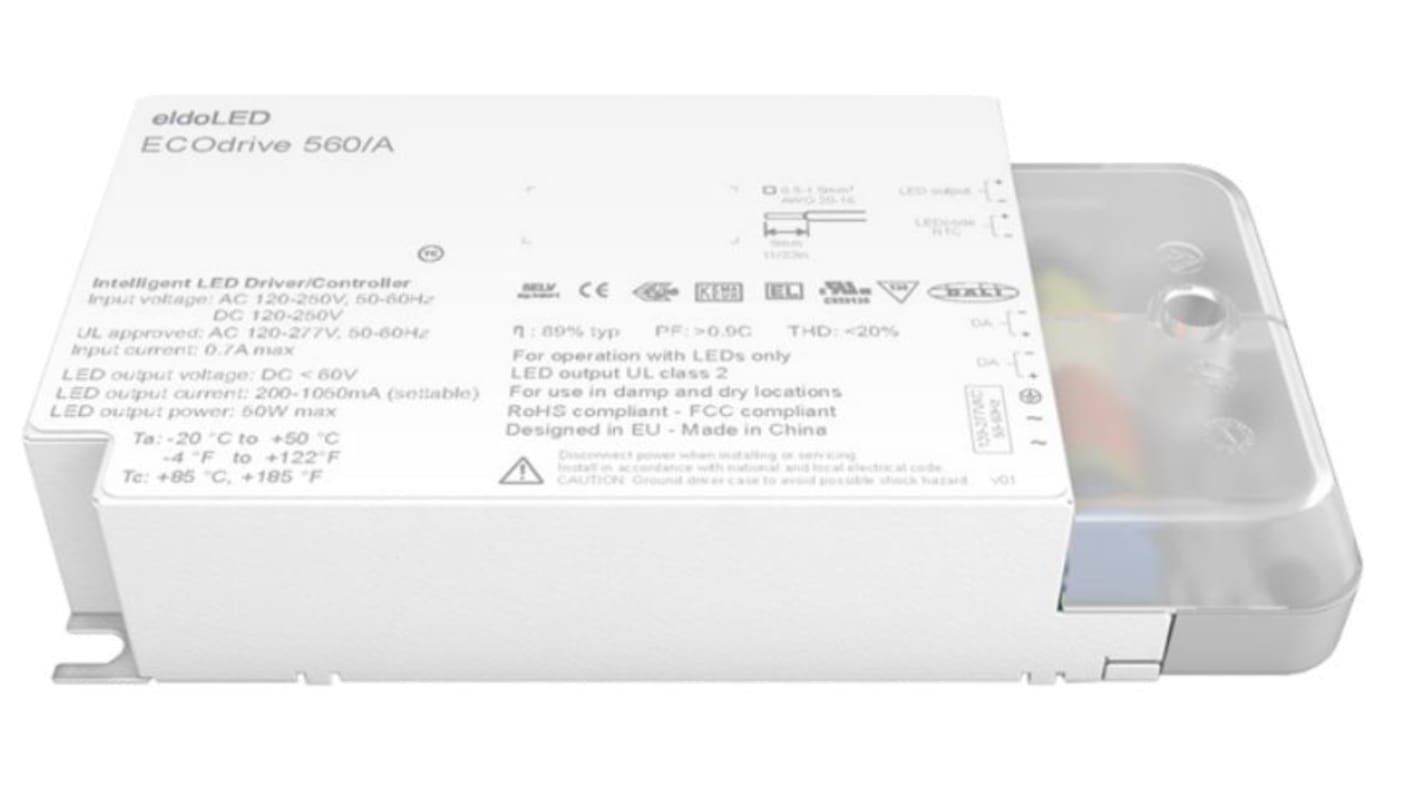

eldoLED LED Driver, 2/55 V Output, 50 W Output, 1400 mA DALI2
- RS 제품 번호:
- 236-8166
- 제조사 부품 번호:
- EC0560A5
- 제조업체:
- eldoLED
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩125,377.20
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩125,377.20 |
| 5 - 9 | ₩123,121.20 |
| 10 - 24 | ₩120,902.80 |
| 25 - 49 | ₩118,722.00 |
| 50 + | ₩116,597.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 236-8166
- 제조사 부품 번호:
- EC0560A5
- 제조업체:
- eldoLED
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | eldoLED | |
| Product Type | LED Driver | |
| Maximum Output Power | 50W | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | DALI2 | |
| Input Voltage Type | AC | |
| Terminal Type | Push-in | |
| Operating Modes | Constant Current | |
| Standards/Approvals | UL, RoHS, REACH, IEC, EN, EL, DALI, ANSI | |
| Series | EC056 | |
| Configuration | Enclosed | |
| Power Dissipation | 0.5W | |
| Primary Type | AC-DC | |
| 모두 선택 | ||
|---|---|---|
브랜드 eldoLED | ||
Product Type LED Driver | ||
Maximum Output Power 50W | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation DALI2 | ||
Input Voltage Type AC | ||
Terminal Type Push-in | ||
Operating Modes Constant Current | ||
Standards/Approvals UL, RoHS, REACH, IEC, EN, EL, DALI, ANSI | ||
Series EC056 | ||
Configuration Enclosed | ||
Power Dissipation 0.5W | ||
Primary Type AC-DC | ||
- COO (Country of Origin):
- US
The eldoLED programmable digital ECOdrive LED driver providing standard LED fixtures with the smoothest flicker-free dimming to 1% light output, delivering value to any application. The LED driver is compatible with the DALI-2 lighting control protocol, and works seamlessly together with LED modules, controls and intelligent luminaire elements.
Dim to 1%, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level
Fine tune your driver for any application
Universal input voltage range, low inrush current and total harmonic distortion(THD), high power factor and efficiency
Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
Different switching and dimming functions are initiated by pressing and holding the standard mains voltage switch for varying lengths of time
