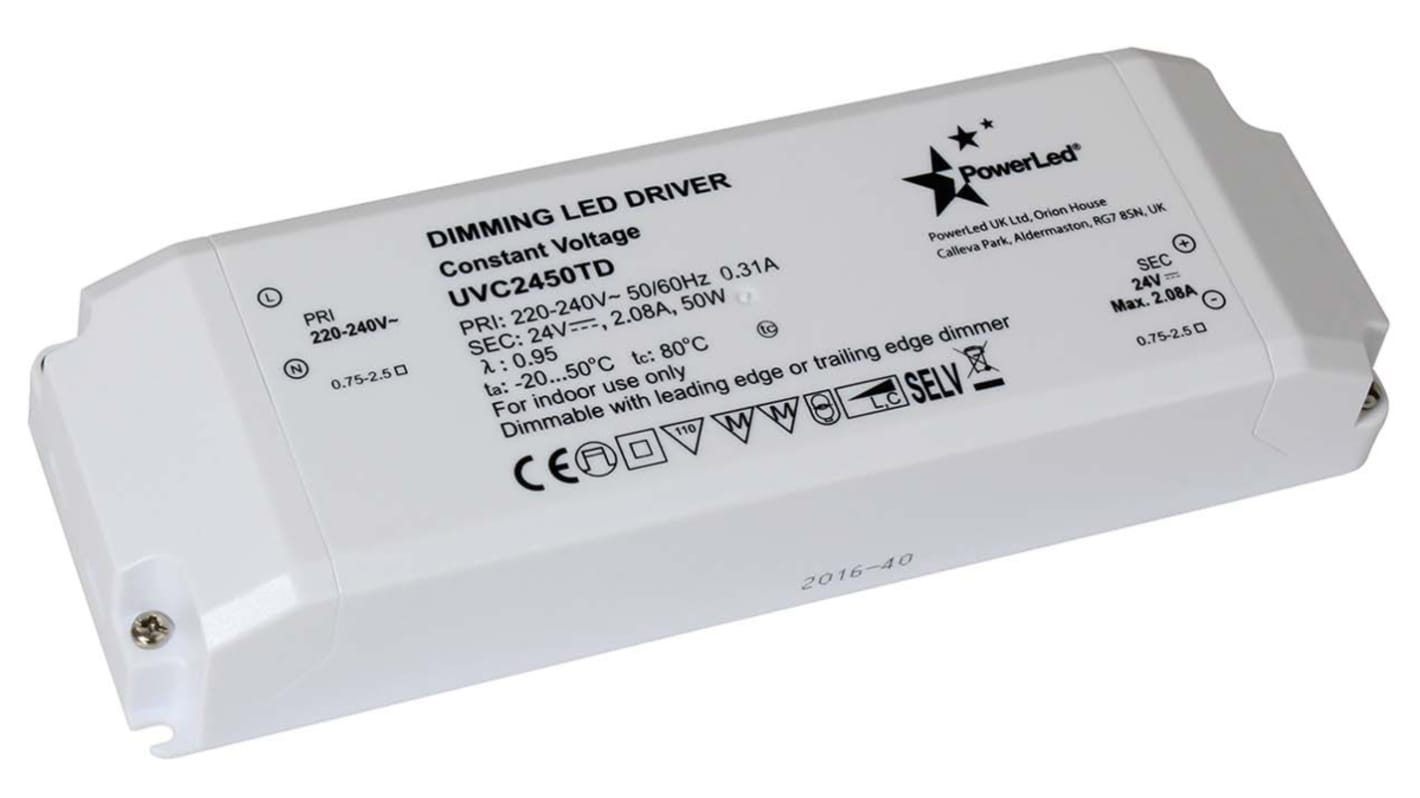

PowerLED LED Driver, 24V Output, 50 W Output, 2.08A
- RS 제품 번호:
- 136-0211
- 제조사 부품 번호:
- UVC2450TD
- 제조업체:
- PowerLED
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 136-0211
- 제조사 부품 번호:
- UVC2450TD
- 제조업체:
- PowerLED
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | PowerLED | |
| Output Voltage | 24V | |
| Product Type | LED Driver | |
| Maximum Output Power | 50W | |
| Input Voltage | 220, 240V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Terminal Type | Screw | |
| Input Voltage Type | AC | |
| IP Rating | IP44 | |
| Driver Current | 2.08A | |
| Operating Modes | Constant Voltage | |
| Number of Outputs | 5 | |
| Standards/Approvals | EN61000-4-11, EN61000-4-4, EN61000-3-2, EN60598, EN61000-3-3, EN61000-4-3, EN61547, EN55015, EN55022, EN61000-4-2, EN61000-4-8, ENV55024, EN61000-4-6 | |
| Series | UVC50TD | |
| Configuration | Enclosed | |
| Primary Type | AC-DC | |
| Power Dissipation | 50W | |
| 모두 선택 | ||
|---|---|---|
브랜드 PowerLED | ||
Output Voltage 24V | ||
Product Type LED Driver | ||
Maximum Output Power 50W | ||
Input Voltage 220, 240V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Terminal Type Screw | ||
Input Voltage Type AC | ||
IP Rating IP44 | ||
Driver Current 2.08A | ||
Operating Modes Constant Voltage | ||
Number of Outputs 5 | ||
Standards/Approvals EN61000-4-11, EN61000-4-4, EN61000-3-2, EN60598, EN61000-3-3, EN61000-4-3, EN61547, EN55015, EN55022, EN61000-4-2, EN61000-4-8, ENV55024, EN61000-4-6 | ||
Series UVC50TD | ||
Configuration Enclosed | ||
Primary Type AC-DC | ||
Power Dissipation 50W | ||
- COO (Country of Origin):
- CN
50W Constant Voltage Triac Dimming LED Drivers
The UVC50 series from PowerLED are a range of LED drivers offering Triac dimming capabilities to LEDs. These 50 watt drivers are IP44 rated and boast constant voltage output. The fully isolated unit has over voltage, over current and short circuit protection that is up to 80% efficient and also features a fire resistant plastic cover.
Suitable for use with both leading and trailing edge dimmers, the PowerLED UVC50 series are mains dimmable and compliment almost any application.
