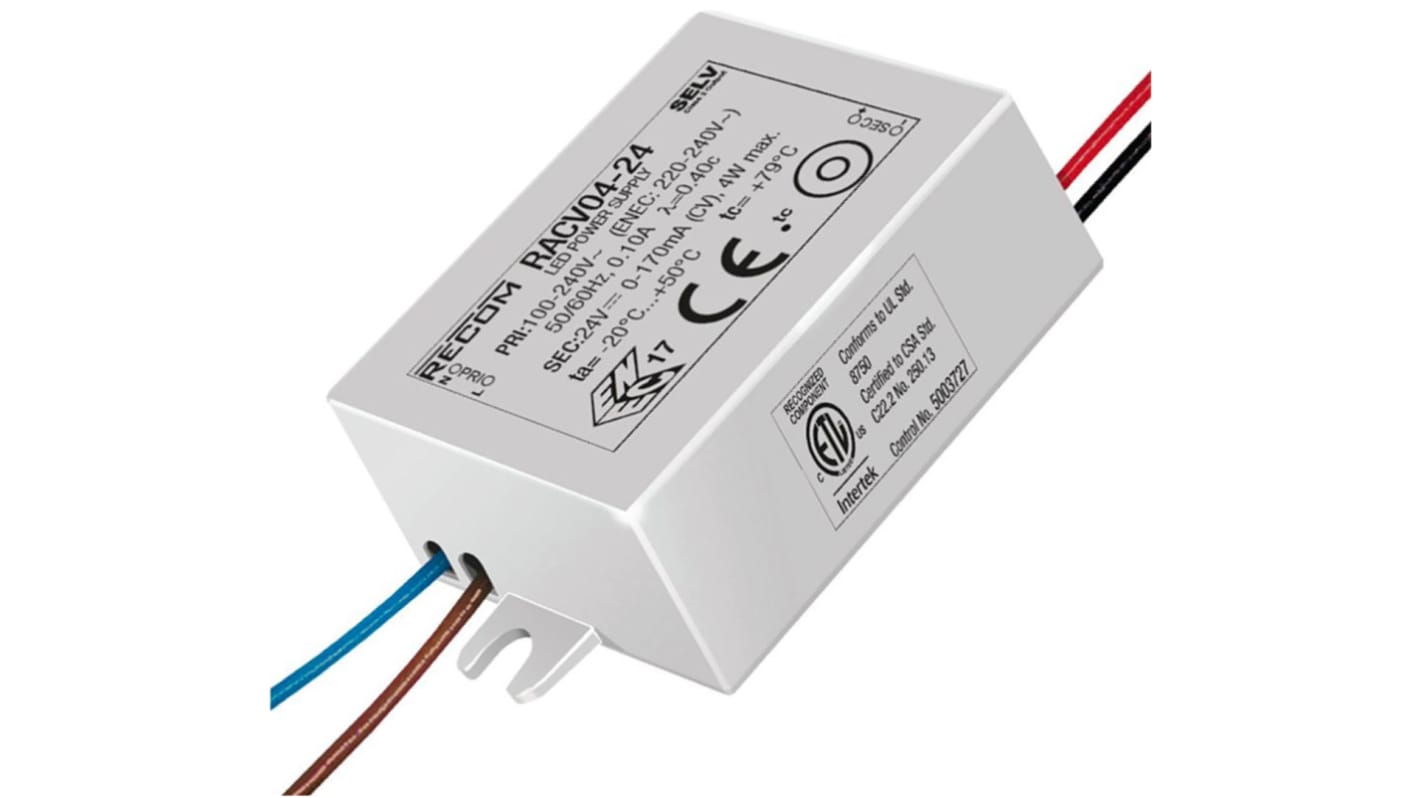

Recom LED Driver, 24 V dc Output, 4 W Output, 170 mA

RS 제품 번호:: 131-4713
제조사 부품 번호:: RACV04-24
제조업체:: Recom

Recom LED Driver, 24 V dc Output, 4 W Output, 170 mA

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩11,543.20

재고있음

160 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 1	₩11,543.20
2 - 4	₩11,186.00
5 - 9	₩10,866.40
10 - 24	₩10,603.20
25 +	₩10,377.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 131-4713
제조사 부품 번호:: RACV04-24
제조업체:: Recom

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Recom
	Product Type	LED Driver
	Output Voltage	24 V dc
	Maximum Output Power	4W
	Input Voltage	264 V ac
	Mount Type	Screw
	Sub Type	LED Driver
	Terminal Type	Wire
	Input Voltage Type	AC
	IP Rating	IP65
	Operating Modes	Constant Voltage
	Driver Current	170 mA
	LED Voltage	90/264 V
	Series	RACV04
	Number of Outputs	1
	Standards/Approvals	CB, CE, CSA, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384, UL 8750
	Configuration	Enclosed
	Power Dissipation	4W
	Primary Type	AC-DC

	모두 선택
	브랜드 Recom
	Product Type LED Driver
	Output Voltage 24 V dc
	Maximum Output Power 4W
	Input Voltage 264 V ac
	Mount Type Screw
	Sub Type LED Driver
	Terminal Type Wire
	Input Voltage Type AC
	IP Rating IP65
	Operating Modes Constant Voltage
	Driver Current 170 mA
	LED Voltage 90/264 V
	Series RACV04
	Number of Outputs 1
	Standards/Approvals CB, CE, CSA, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384, UL 8750
	Configuration Enclosed
	Power Dissipation 4W
	Primary Type AC-DC

Datasheet

RECOM Constant-Voltage LED Driver, 24V DC Voltage Output, 170mA Current Output - RACV04 Series- RACV04-24

Power your light fixtures and reduce energy consumption with this constant-voltage LED driver from RECOM. The unit takes an input voltage of between 90 and 264V AC and converts it to a standard 24V DC output. This regulated output means the attached lights maintain consistent brightness. Designed to operate lighting systems that contain a chain of LED lights, this driver is ideal for use with illuminated signs. Its compact dimensions of 38 (L) x 27 (W) x 21mm (H) mean it takes up minimal space in your setup.

Features & Benefits

• Plastic case is resistant to impact for reliable use in harsh conditions

• Low weight of 40g for ease of installation

• 4W output power means it consumes minimal energy and lasts longer

• IP65 rating means it's protected against dust and water jets for outdoor use

Applications

• Landscape design

• Advertising

• Shop fitting

What's the operating temperature range of this driver?

This driver operates at temperatures between -20°C and +50°C. This makes it suitable for use in demanding conditions.

Does this LED driver have overload protection?

Yes – this LED driver will power off in the event of overload until the fault condition is removed, keeping your staff and equipment safe.
