MEAN WELL LED Driver, 24 V Output, 75 W Output, 450 mA DALI

모든 LED Drivers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩61,946.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 64 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩61,946.00
5 - 9₩60,705.20
10 - 24₩58,881.60
25 +₩57,716.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
103-4659
Distrelec 제품 번호:
300-51-091
제조사 부품 번호:
ELG-75-24DA
제조업체:
MEAN WELL
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MEAN WELL

Product Type

LED Driver

Output Voltage

24 V

Maximum Output Power

75W

Input Voltage

180 → 305 V ac, 254 → 431 V dc

Mount Type

Screw

Sub Type

LED Driver

Dimming Operation

DALI

Terminal Type

Wire

Input Voltage Type

AC/DC

IP Rating

IP65

Operating Modes

Constant Current/Constant Voltage

Driver Current

450 mA

Number of Outputs

1

Standards/Approvals

UL, SELV, ENEC, EAC, CE, CB

Series

ELG-75

Configuration

Encapsulated

Power Dissipation

75.6W

Primary Type

DC-DC, AC-DC

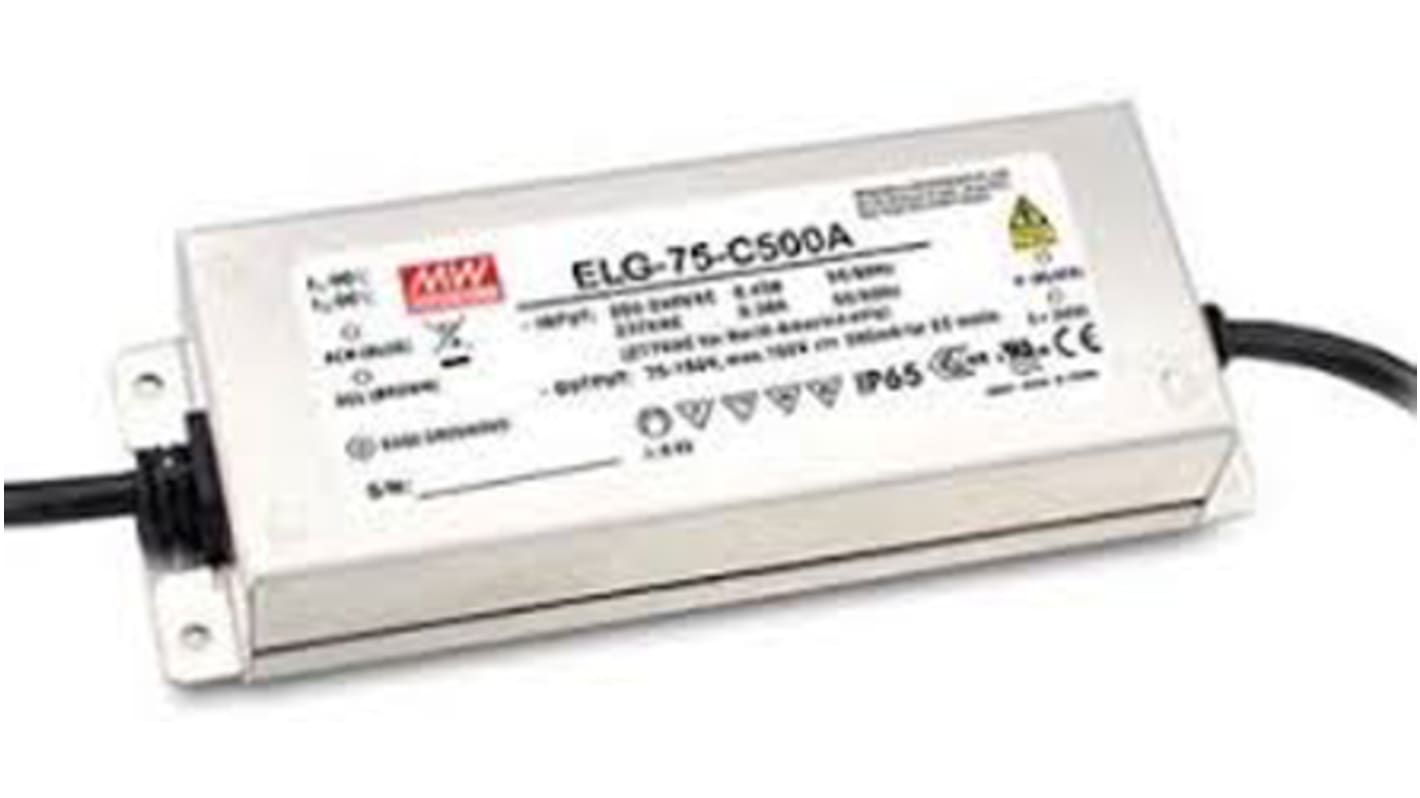

Mean Well ELG-75 Series LED Driver


Mean Well ELG-75 series of constant current 75 W LED Driver, which also supports a high-voltage output. Thanks to a fan-less design, the ELG-75 series provides an efficiency rating of up to 91%. Constructed in a robust full metal housing to ensure suitability with a wide variety of applications.

Features and Benefits

•Fan-less design provides high efficiency rating.

•Wide operating temperature range.

•Rated to IP 65/67 depending on the option selected.

•Designed to provide the optimal flexibility for LED applications.

•Both Potentiometer and PWM signal dimming options available.

Typical applications include LED street lighting, architectural lighting, bay lighting & floodlighting.

Mean Well LED Drivers / Power Supplies - IP Rated
