제조사부품번호

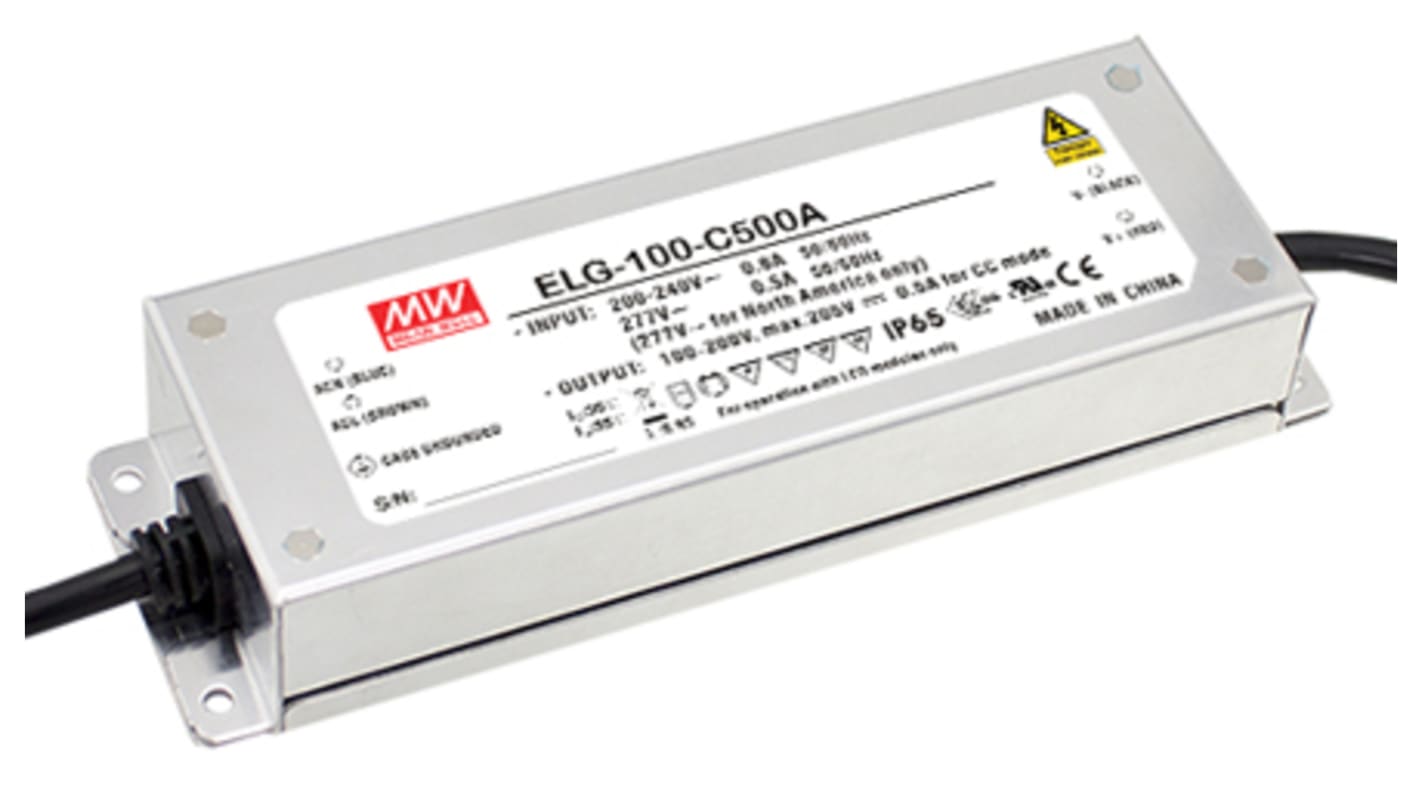

MEAN WELL LED Driver, 200 V Output, 100 W Output, 600 mA DALI

RS 제품 번호:: 103-4359
Distrelec 제품 번호:: 301-34-582
제조사 부품 번호:: ELG-100-C500DA
제조업체:: MEAN WELL

MEAN WELL LED Driver, 200 V Output, 100 W Output, 600 mA DALI

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩72,135.60

재고있음

4 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 4	₩72,135.60
5 - 9	₩69,992.40
10 - 24	₩68,563.60
25 - 49	₩67,191.20
50 +	₩65,856.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 103-4359
Distrelec 제품 번호:: 301-34-582
제조사 부품 번호:: ELG-100-C500DA
제조업체:: MEAN WELL

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	MEAN WELL
	Output Voltage	200 V
	Product Type	LED Driver
	Maximum Output Power	100W
	Input Voltage	180 → 305 V ac, 255 → 431 V dc
	Mount Type	Screw
	Sub Type	LED Driver
	Dimming Operation	DALI
	Terminal Type	Wire
	Input Voltage Type	AC/DC
	IP Rating	IP67
	Operating Modes	Constant Current
	Driver Current	600 mA
	Standards/Approvals	CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
	Series	ELG-100-C
	Number of Outputs	1
	Configuration	Encapsulated
	Primary Type	DC-DC, AC-DC
	Power Dissipation	100W

	모두 선택
	브랜드 MEAN WELL
	Output Voltage 200 V
	Product Type LED Driver
	Maximum Output Power 100W
	Input Voltage 180 → 305 V ac, 255 → 431 V dc
	Mount Type Screw
	Sub Type LED Driver
	Dimming Operation DALI
	Terminal Type Wire
	Input Voltage Type AC/DC
	IP Rating IP67
	Operating Modes Constant Current
	Driver Current 600 mA
	Standards/Approvals CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
	Series ELG-100-C
	Number of Outputs 1
	Configuration Encapsulated
	Primary Type DC-DC, AC-DC
	Power Dissipation 100W

Mean Well ELG-100C Series Dimmable LED Driver

Mean Well ELG-100C series of constant current 100 W dimmable LED Driver, which also supports a high-voltage constant output. Thanks to a fan-less design, the ELG-100C series provides an efficiency rating of up to 91%. Constructed in a robust full metal housing to ensure suitability with a wide variety of applications.

•Fan-less design provides high efficiency rating.

•Wide operating temperature range.

•Rated to IP 65/67 depending on the option selected.

•Designed to provide the optimal flexibility for LED applications.

•Both Potentiometer and PWM signal dimming options available.

•Class 2 power unit.

•Built-in active PFC function.

Typical applications include LED street lighting, architectural lighting, bay lighting & floodlighting.
