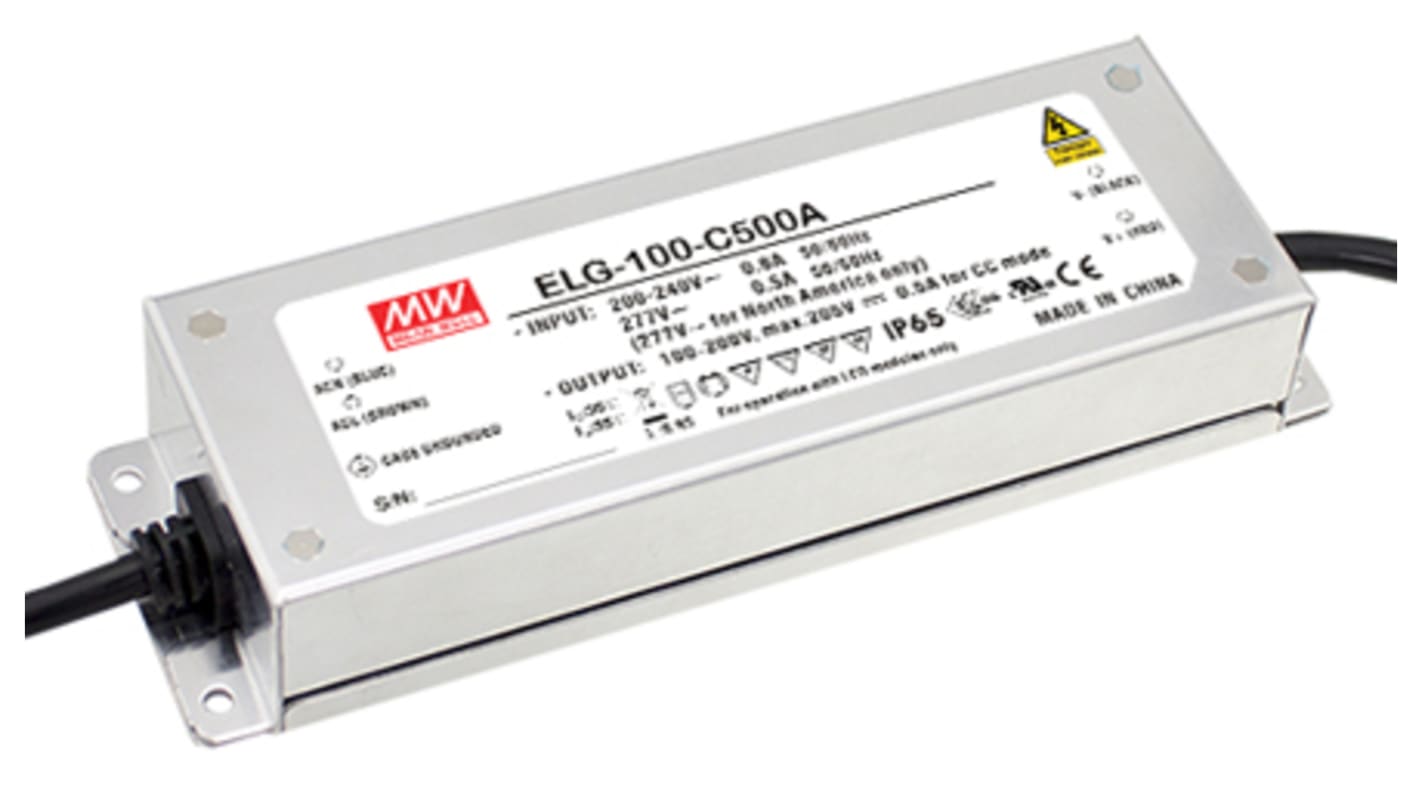

MEAN WELL LED Driver, 54V Output, 100W Output, 2A Output, Constant Current / Constant Voltage Dimmable
- RS 제품 번호:
- 103-4334
- Distrelec 제품 번호:
- 301-34-564
- 제조사 부품 번호:
- ELG-100-54A
- 제조업체:
- MEAN WELL
대량 구매 할인 기용 가능
가격 개당**
₩63,807.20
1 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
---|---|
1 - 4 | ₩63,807.20 |
5 - 9 | ₩61,889.60 |
10 - 24 | ₩59,972.00 |
25 - 49 | ₩58,693.60 |
50 + | ₩57,434.00 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 103-4334
- Distrelec 제품 번호:
- 301-34-564
- 제조사 부품 번호:
- ELG-100-54A
- 제조업체:
- MEAN WELL
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
---|---|---|
브랜드 | MEAN WELL | |
Output Voltage | 54V | |
Maximum Output Power | 100W | |
Output Current | 2A | |
Dimmable | Yes | |
Input Voltage | 180 → 305 V ac, 254 → 431 V dc | |
Operation | Constant Current / Constant Voltage | |
LED Driver Type | LED Driver | |
Dimming Operation | Potentiometer | |
AC or DC Input Voltage | ac, dc | |
IP Rating | IP65 | |
Output | 54 V dc @ 1.78 A | |
Current Rating | 600mA | |
Series | ELG-100 | |
Number of Outputs | 1 | |
Voltage Rating | 180 → 305 V ac, 254 → 431 V dc | |
Configuration | Encapsulated | |
Standards Met | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 | |
Primary Type | AC-DC, DC-DC | |
모두 선택 | ||
---|---|---|
브랜드 MEAN WELL | ||
Output Voltage 54V | ||
Maximum Output Power 100W | ||
Output Current 2A | ||
Dimmable Yes | ||
Input Voltage 180 → 305 V ac, 254 → 431 V dc | ||
Operation Constant Current / Constant Voltage | ||
LED Driver Type LED Driver | ||
Dimming Operation Potentiometer | ||
AC or DC Input Voltage ac, dc | ||
IP Rating IP65 | ||
Output 54 V dc @ 1.78 A | ||
Current Rating 600mA | ||
Series ELG-100 | ||
Number of Outputs 1 | ||
Voltage Rating 180 → 305 V ac, 254 → 431 V dc | ||
Configuration Encapsulated | ||
Standards Met CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750 | ||
Primary Type AC-DC, DC-DC | ||
