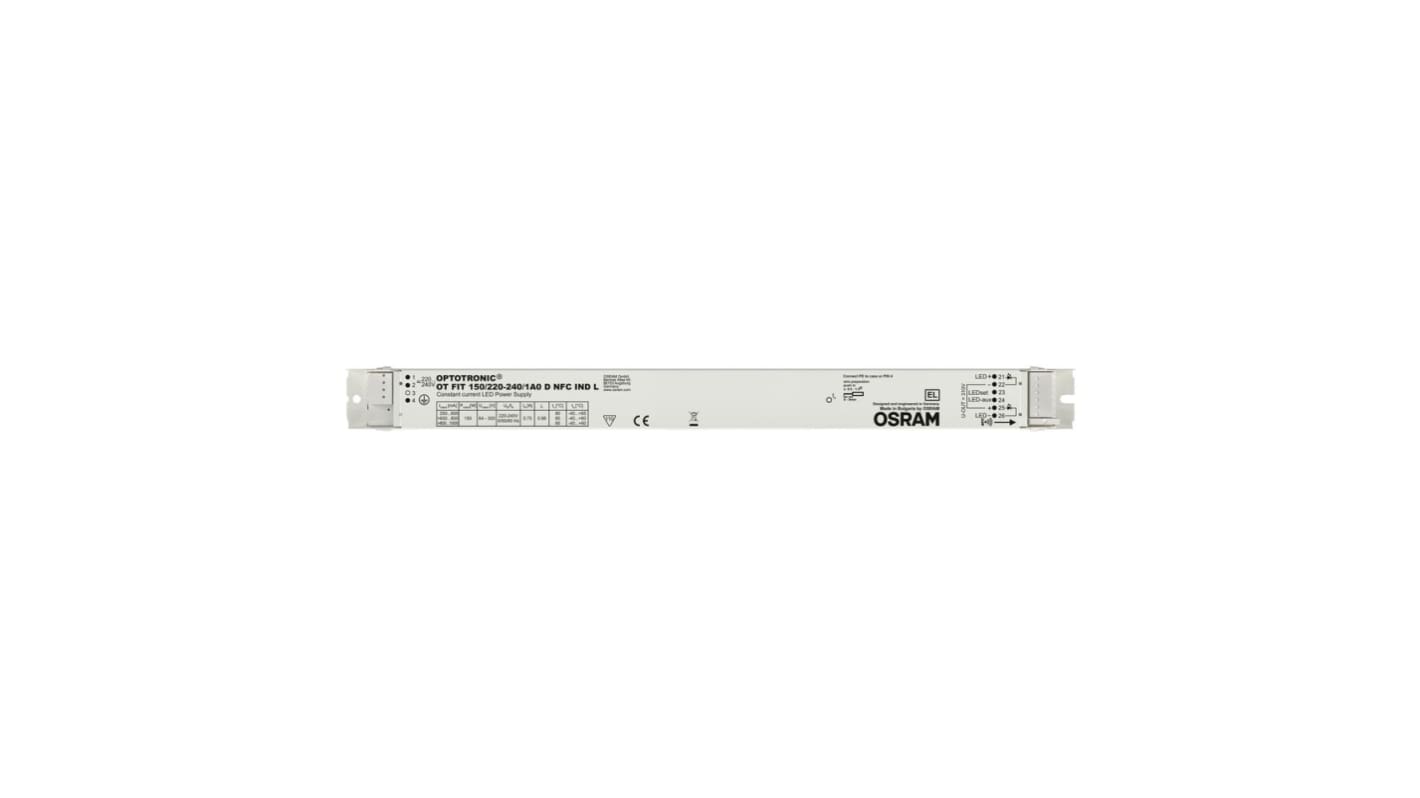

Osram, 64/300 V Output, 150 W Output, 1600 mA Non-Dimmable
- RS 제품 번호:
- 327-725
- 제조사 부품 번호:
- OT-FIT-150/220-240/1A0-D-NFC-IND-L
- 제조업체:
- Osram
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩96,011.60
재고있음
- 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩96,011.60 |
| 10 - 99 | ₩86,423.60 |
| 100 + | ₩79,693.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 327-725
- 제조사 부품 번호:
- OT-FIT-150/220-240/1A0-D-NFC-IND-L
- 제조업체:
- Osram
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Osram | |
| Output Voltage | 64/300 V | |
| Product Type | LED Driver | |
| Maximum Output Power | 150W | |
| Input Voltage | 198/264 V | |
| Dimming Operation | Non-Dimmable | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP20 | |
| LED Voltage | 64/300 V | |
| Driver Current | 1600 mA | |
| Operating Modes | Constant Current | |
| Number of Outputs | 1 | |
| Series | OT FIT 150/220...240/1A0 D NFC IND L | |
| Standards/Approvals | EN 61347-1/EN 61347-2-13/EN 62384/EN 61000-3-2/EN 61000-3-3/EN 61547 | |
| Power Dissipation | 11W | |
| 모두 선택 | ||
|---|---|---|
브랜드 Osram | ||
Output Voltage 64/300 V | ||
Product Type LED Driver | ||
Maximum Output Power 150W | ||
Input Voltage 198/264 V | ||
Dimming Operation Non-Dimmable | ||
Input Voltage Type AC/DC | ||
IP Rating IP20 | ||
LED Voltage 64/300 V | ||
Driver Current 1600 mA | ||
Operating Modes Constant Current | ||
Number of Outputs 1 | ||
Series OT FIT 150/220...240/1A0 D NFC IND L | ||
Standards/Approvals EN 61347-1/EN 61347-2-13/EN 62384/EN 61000-3-2/EN 61000-3-3/EN 61547 | ||
Power Dissipation 11W | ||
The Osram versatile non-dimmable LED driver, engineered to deliver exceptional efficiency and reliability in a variety of lighting applications. Designed for constant current output, it accommodates a wide range of power up to 150 W, making it perfect for both industrial and retail lighting solutions. This model features a robust operational capability within a healthy temperature range, ensuring longevity and performance in challenging environments. Furthermore, its innovative NFC and LED set programming options provide flexibility for future adjustments, allowing for a tailored lighting experience to meet specific needs. With a lifetime of up to 100,000 hours, the OT FIT driver stands as a reliable choice for sustainable lighting solutions.
Designed for a maximum output current of 1,600 mA, ensuring adaptable lighting options
Offers a high efficiency rate of up to 96%, reducing energy consumption
Equipped with automatic reverse overload and overheating protection for enhanced safety
Features high surge protection, safeguarding against voltage spikes
Operates efficiently across a wide mains frequency range of 0, 50, and 60 Hz
Suitable for use in both emergency and standard lighting systems
Constructed with metal casing, providing durability in various environments
Integrates a user-friendly programming approach through NFC technology
