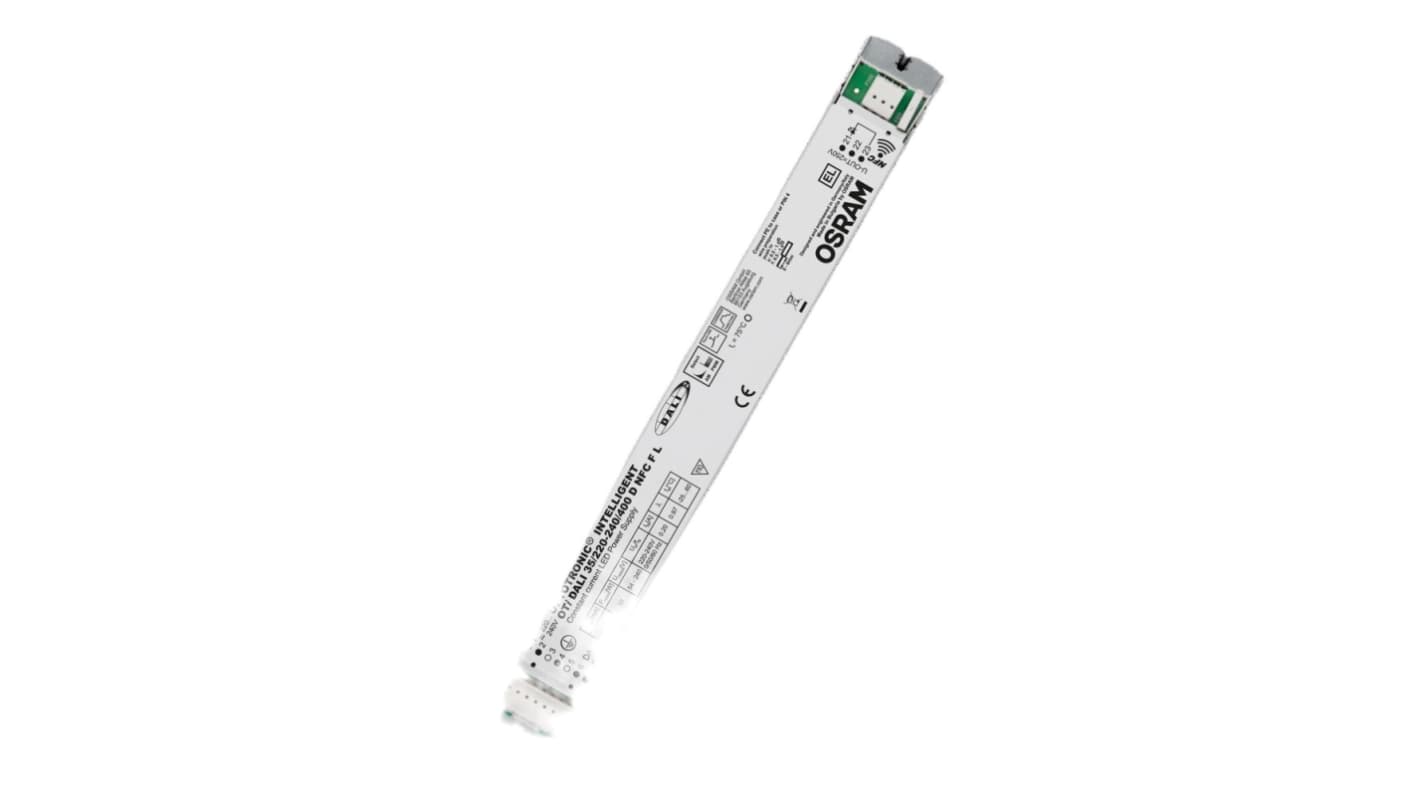

Osram, 54/240 V Output, 38 W Output, 120 to 500 mA 0.1 to 100%
- RS 제품 번호:
- 327-653
- 제조사 부품 번호:
- OTi-DALI-35/220-240/400-D-NFC-F-L
- 제조업체:
- Osram
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩96,763.60
재고있음
- 9 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩96,763.60 |
| 10 - 99 | ₩87,081.60 |
| 100 + | ₩80,313.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 327-653
- 제조사 부품 번호:
- OTi-DALI-35/220-240/400-D-NFC-F-L
- 제조업체:
- Osram
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 54/240 V | |
| Maximum Output Power | 38W | |
| Input Voltage | 198/264 V | |
| Dimming Operation | 0.1 to 100% | |
| Input Voltage Type | AC | |
| Terminal Type | Push | |
| IP Rating | IP20 | |
| Driver Current | 120 to 500 mA | |
| Operating Modes | Constant Current | |
| LED Voltage | 54 to 240 V | |
| Standards/Approvals | EAC, EL, RCM, VDE-ENEC, CE, BIS, CCC | |
| Number of Outputs | 1 | |
| Primary Type | Non-isolated drivers | |
| Power Dissipation | 6W | |
| 모두 선택 | ||
|---|---|---|
브랜드 Osram | ||
Product Type LED Driver | ||
Output Voltage 54/240 V | ||
Maximum Output Power 38W | ||
Input Voltage 198/264 V | ||
Dimming Operation 0.1 to 100% | ||
Input Voltage Type AC | ||
Terminal Type Push | ||
IP Rating IP20 | ||
Driver Current 120 to 500 mA | ||
Operating Modes Constant Current | ||
LED Voltage 54 to 240 V | ||
Standards/Approvals EAC, EL, RCM, VDE-ENEC, CE, BIS, CCC | ||
Number of Outputs 1 | ||
Primary Type Non-isolated drivers | ||
Power Dissipation 6W | ||
- COO (Country of Origin):
- BG
The Osram state-of-the-art linear constant current LED driver designed for versatile lighting applications. Engineered for efficiency and flexibility, this driver supports DALI control systems and incorporates advanced features such as constant lumen output and comprehensive operational monitoring. With its sleek, flat design, it easily integrates into innovative luminaire configurations while providing high-quality dimming capabilities for ambient adjustments. The driver is suitable for various environments, including offices, educational settings, and retail spaces, making it an exemplary choice for modern lighting solutions. Its robust construction ensures longevity, while safety features such as overload and over temperature protection offer peace of mind in diverse installations.
DALI-2 certified for enhanced compatibility and integration
Programmable via NFC for tailored performance
Exceptional efficiency reduces energy consumption
Automatic reversible overload protection enhances safety
Extended lifespan guarantees reliability in demanding conditions
Flat housing allows for seamless incorporation into contemporary designs
Monitoring capabilities provide insights into operational efficiencies
Designed for compatibility with class I luminaires
