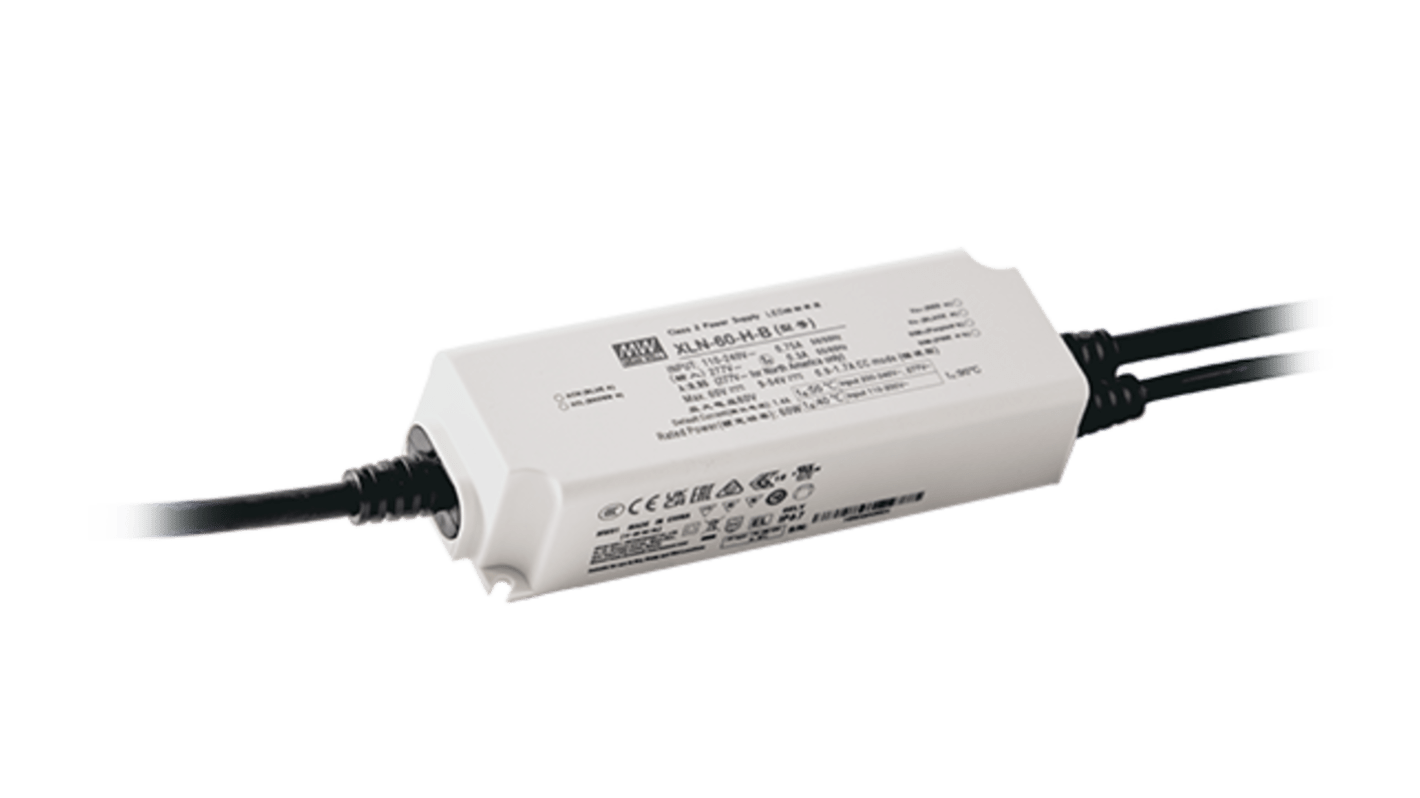

MEAN WELL Multiple-Stage Constant Power/Constant Voltage LED Driver, 48 V Output, 60 W Output, 1.25 A 3 in 1 Dimming
- RS 제품 번호:
- 314-285
- 제조사 부품 번호:
- XLN-60-48
- 제조업체:
- MEAN WELL
Subtotal (1 unit)*
₩43,898.00
일시적 품절
- 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩43,898.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 314-285
- 제조사 부품 번호:
- XLN-60-48
- 제조업체:
- MEAN WELL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | MEAN WELL | |
| Output Voltage | 48 V | |
| Product Type | LED Driver | |
| Maximum Output Power | 60W | |
| Input Voltage | 110/305 V | |
| Sub Type | Multiple-Stage Constant Power/Constant Voltage LED Driver | |
| Dimming Operation | 3 in 1 Dimming | |
| Terminal Type | Pin | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP67 | |
| Driver Current | 1.25 A | |
| Operating Modes | Constant Voltage | |
| Standards/Approvals | AS/NZS 61347-2-13, BS EN/EN61347-2-13(EL) suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384 independent, CSA C22.2 No. 250.13-12, Design refer to AS/NZS 61347-1, EAC TP TC 004 Approved, ENEC BS EN/EN61347-1, GB19510.1, GB19510.14, UL8750(Type HL and Class P) | |
| Series | XLN-60 | |
| 모두 선택 | ||
|---|---|---|
브랜드 MEAN WELL | ||
Output Voltage 48 V | ||
Product Type LED Driver | ||
Maximum Output Power 60W | ||
Input Voltage 110/305 V | ||
Sub Type Multiple-Stage Constant Power/Constant Voltage LED Driver | ||
Dimming Operation 3 in 1 Dimming | ||
Terminal Type Pin | ||
Input Voltage Type AC/DC | ||
IP Rating IP67 | ||
Driver Current 1.25 A | ||
Operating Modes Constant Voltage | ||
Standards/Approvals AS/NZS 61347-2-13, BS EN/EN61347-2-13(EL) suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384 independent, CSA C22.2 No. 250.13-12, Design refer to AS/NZS 61347-1, EAC TP TC 004 Approved, ENEC BS EN/EN61347-1, GB19510.1, GB19510.14, UL8750(Type HL and Class P) | ||
Series XLN-60 | ||
- COO (Country of Origin):
- CN
The MEANWELL LED Driver is a 60W LED driver with constant power and constant voltage output. It can operate from 110V to 305V AC, with an output current range between 900mA to 1700mA, which is selectable by a DIP switch or NFC setting. This LED Driver is designed in accordance with the latest safety regulations, featuring three in one dimming and DALI-2 dimming. Additionally, the brightness can be adjusted with a simple push button, providing flexibility for LED lighting applications.
Plastic housing with Class II and PFC design
Meets UL 8750 Class 2 and Class P power unit
Flicker free and complying with CE ERP directive
Standby power consumption less than 0.5W
Meets emergency lighting application requirements
Fully encapsulated with IP67
