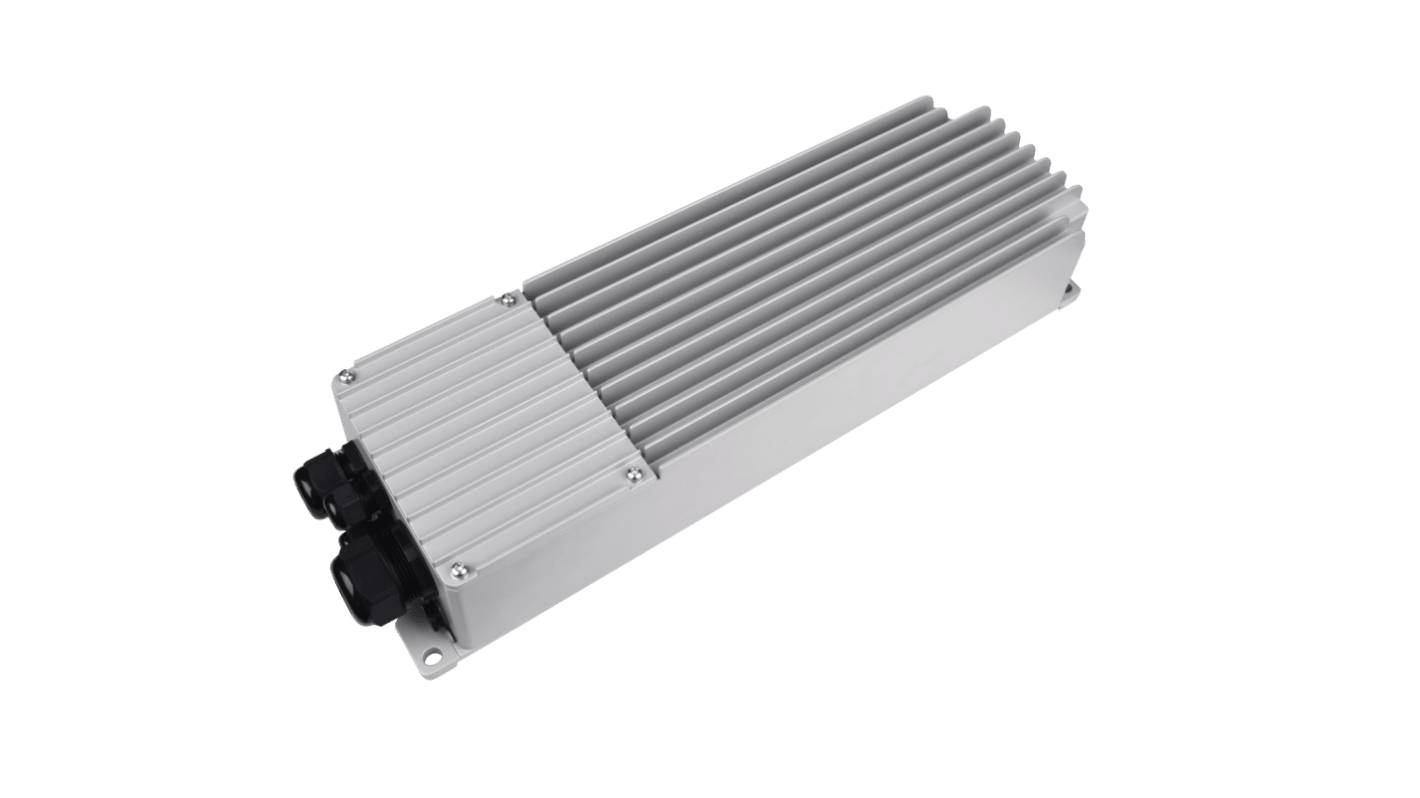

Inventronics, 500 V Output, 1.8 kW Output

RS 제품 번호:: 285-385
제조사 부품 번호:: NES-1K8T210BC
제조업체:: Inventronics

Inventronics, 500 V Output, 1.8 kW Output

현재 이용 불가

이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.

RS 제품 번호:: 285-385
제조사 부품 번호:: NES-1K8T210BC
제조업체:: Inventronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Inventronics
	Output Voltage	500 V
	Product Type	LED Driver
	Maximum Output Power	1.8kW
	Input Voltage	457 V
	Input Voltage Type	AC/DC
	IP Rating	IP66
	Operating Modes	Constant Current
	Standards/Approvals	CE

	모두 선택
	브랜드 Inventronics
	Output Voltage 500 V
	Product Type LED Driver
	Maximum Output Power 1.8kW
	Input Voltage 457 V
	Input Voltage Type AC/DC
	IP Rating IP66
	Operating Modes Constant Current
	Standards/Approvals CE

Datasheet - NES-1K8T210BC

COO (Country of Origin):: CN

The Inventronics Channel programmer driver is a non isolated 1800W, 3 channels, constant current, programmable and IP66 LED driver that operates from 198 to 457 Vac input with excellent power factor. Created for many lighting applications including sports, high mast, UV LED, aquaculture and horticulture, etc. The dimming control supports two way communication via DALI 2 and complies with D4i, furthermore it incorporates DMX RDM dimming.

Non isolated class I driver

No afterglow

Common anode output connection

Max remote distance up to 300 meters

Ultra high efficiency

Full power at wide output current range

Adjustable output current

Inventronics, 500 V Output, 1.8 kW Output
