제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Product Type	Evaluation Board
	Kit Classification	Evaluation Board
	For Use With	AV Display
	Featured Device	NCV7685
	Kit Name	RGB Lighting Evaluation Board
	Standards/Approvals	No

	모두 선택
	브랜드 onsemi
	Product Type Evaluation Board
	Kit Classification Evaluation Board
	For Use With AV Display
	Featured Device NCV7685
	Kit Name RGB Lighting Evaluation Board
	Standards/Approvals No

Datasheet - SECO-NCV7685RGB-GEVB

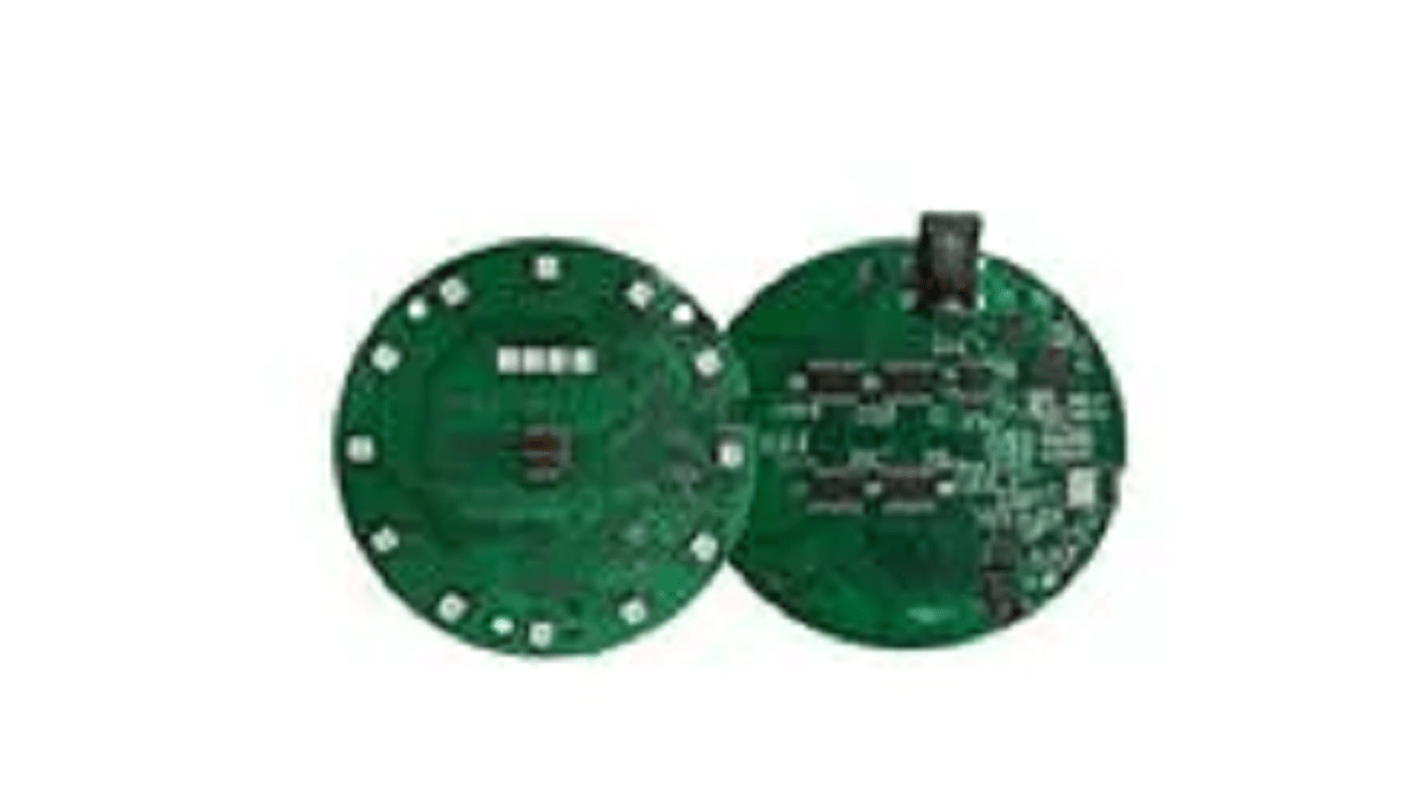

The ON Semiconductor, an evaluation board for RGB LEDs lighting application with BLE in automotive which driven by NCV7685 and controlled by RSL10, It is also an interior or exterior lighting reference design for tail or ambient lights to realize general sequential or high end pixelated LEDs controlling in vehicle network, the user are prefer to use fixed address in multiple NCV7685 application, it leads to add one more procedure to pre−programming each chips address in mass production stage, the board conceived for use as a plug and play environment to testing.

Plug and Play switch and BLE mode to show animations

16 RGB LEDs (48 Channels), each current programmable sources up to 60 mA

Independent PWM duty cycle control for each channel

On−Chip 150,300,600 and 1200 Hz PWM

Logarithmic or linear independent PWM dimming

Diagnostic and protection against open load and under−voltage, over temperature

Dynamic addressing method for no worries in mass production

Rx sensitivity 94 dBm

Transmitting power −17 to +6 dBm

Arm Cortex M3 Processor and LPDSP32

AEC Q100 qualified and PPAP capable

onsemi SECO-NCV7685RGB-GEVB RGB Lighting Evaluation Board Evaluation Board for NCV7685 for AV Display
