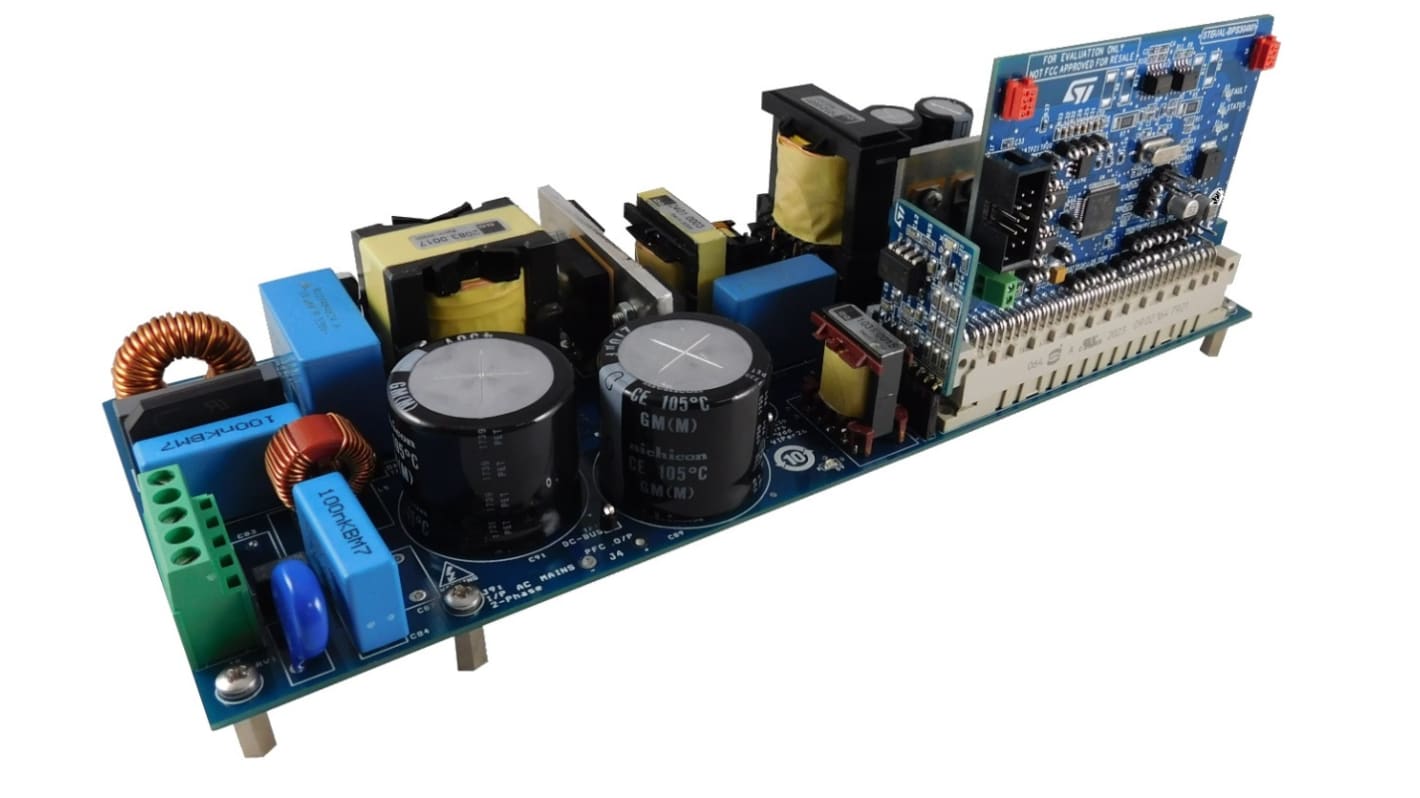

STMicroelectronics STEVAL-LLL009V1 300 W very high AC input voltage LED driver with digital power control LED Driver

모든 LED Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩799,488.80

Add to Basket
수량 선택 또는 입력
공급 부족
  • 추가로 2026년 2월 09일 부터 4 개 단위 배송
당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.
단위당
한팩당
1 - 4₩799,488.80
5 +₩783,508.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
210-9068
제조 부품 번호:
STEVAL-LLL009V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Evaluation Board

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

LED Lighting Controls

Featured Device

STM32F334R8, L6562AT, VIPER267KDTR

Kit Name

300 W very high AC input voltage LED driver with digital power control

Standards/Approvals

RoHS

The STEVAL-LLL009V1 digitally controlled 300 W power supply consists of power factor correction (PFC) and half-bridge LCC resonant converter power stages. An STM32F334R8 microcontroller implements DC-DC and output synchronous rectification digital control, while the PFC is driven in transition mode by the L6562AT controller. The system supports constant voltage (CV) and constant current (CC) operation.

MDmesh K5 and MDmesh DK5 Power MOSFETs are used in the PFC and LCC half-bridge, respectively, to ensure maximum efficiency, while the STripFET F7 Power MOSFET is employed to reduce conduction losses in the synchronous rectification stage on the secondary side.

Both the primary and secondary sections are supplied by an off-line flyback circuit based on VIPER267KDTR high voltage converter for ultra-wide input which provides regulated voltages to the control board, the gate driver ICs and the signal conditioning circuits.

Formal testing and measurement results confirm the ability and performance of ST power products combined with comprehensive digital control to deliver high efficiency, power factor near unity, and low THD across wide input voltage and load conditions.

System architecture based on transition mode boost PFC, half bridge LCC and synchronous rectification (full bridge)

270-480 VAC input voltage range

Output can be configured in constant current (CC) or constant voltage (CV) mode:

  • 300 W maximum O/P power rating

  • CV mode: 48.5 V ± 1%

  • CC mode: 6.25 A ± 2.5% with voltage drop from 36 to 48 V

    • Peak efficiency >93.5%

    Power Factor > 0.9 for load > 33% of max. load of the input voltage range

    THD < 20% for load > 25% of max. load of the input voltage range

    Dimming control in CC mode configuration:

  • 0-10 V control

  • 1% resolution

  • analog dimming

    • Soft start

    Protections: I/P and O/P under and overvoltage protection, O/P open/no load circuit protection, O/P short/overload circuit protection

    Digitally controlled by STM32F334R8

    RoHS compliant

    WEEE compliant (2012/19/UE RAEE II)
