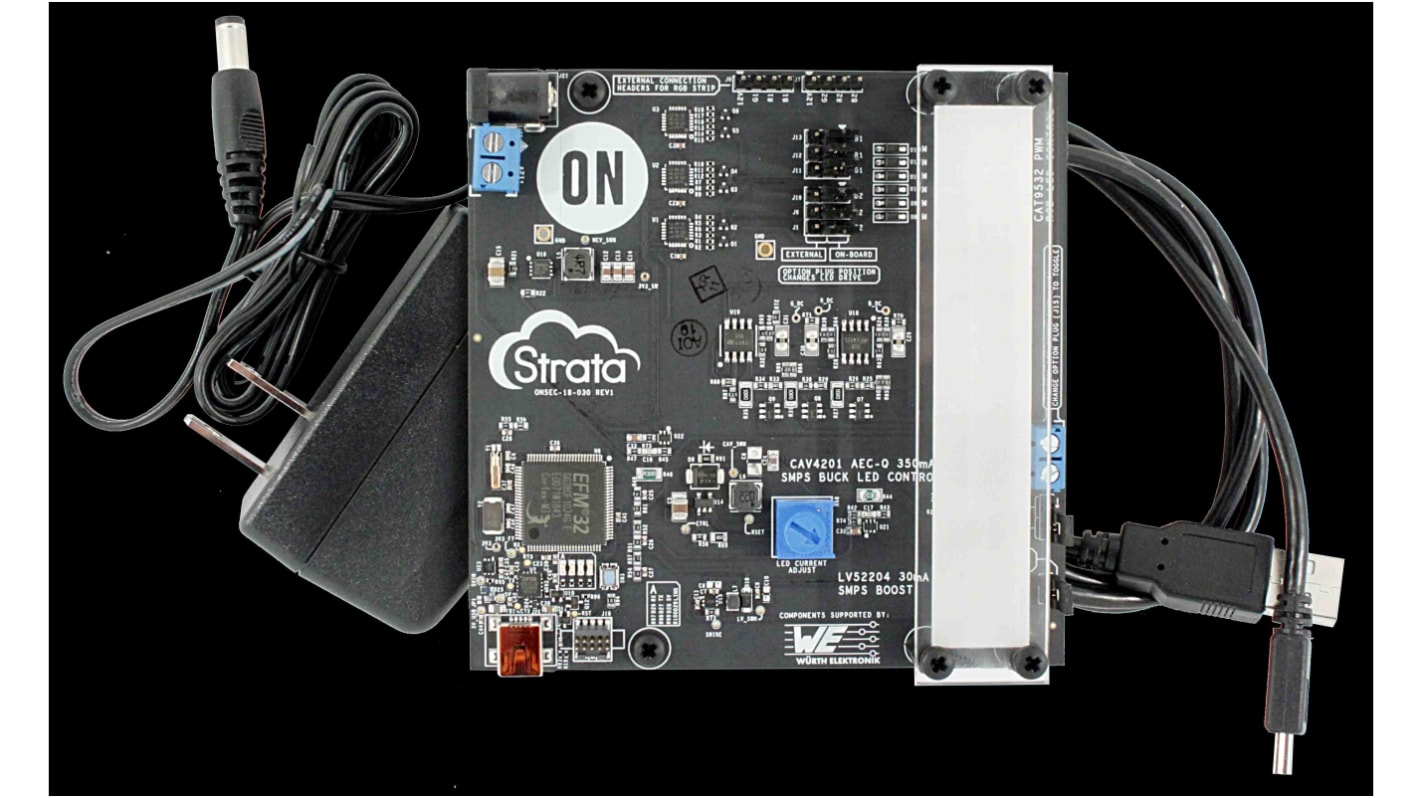

onsemi STR-4LED-SOL-EVAL-EVK Strata Enabled LED Evaluation Board LED Controller Evaluation Board for CAT9532HV6I-GT2,

LED eval board offering buck, boost, PWM, and linear solutions using CAV4201, LV52204, CAT9532, and LM358 respectively. Enabled with Strata software for full control and telemetry. The LED Power Solutions Evaluation Board uses four different LED control methodologies to provide interactive LED control via Strata. CAT9532s (PULSE) provide two strings of dynamic RGB color mixing via I2C interface for quick color changes and over 16 million color options. Linear solution (LINEAR) uses simple analogue components to drive a constant current through the LEDs. The CAV4201 (BUCK) offers a step down SMPS solution with high efficiency and high current output that is fully automotive qualified. The LV52204 (BOOST) provides a step up SMPS solution for low current backlighting yielding high efficiency and high output voltage. In addition to these four complete solutions, the LED Power Solutions Eval board has multiple external connection points to use your own LED hardware.
