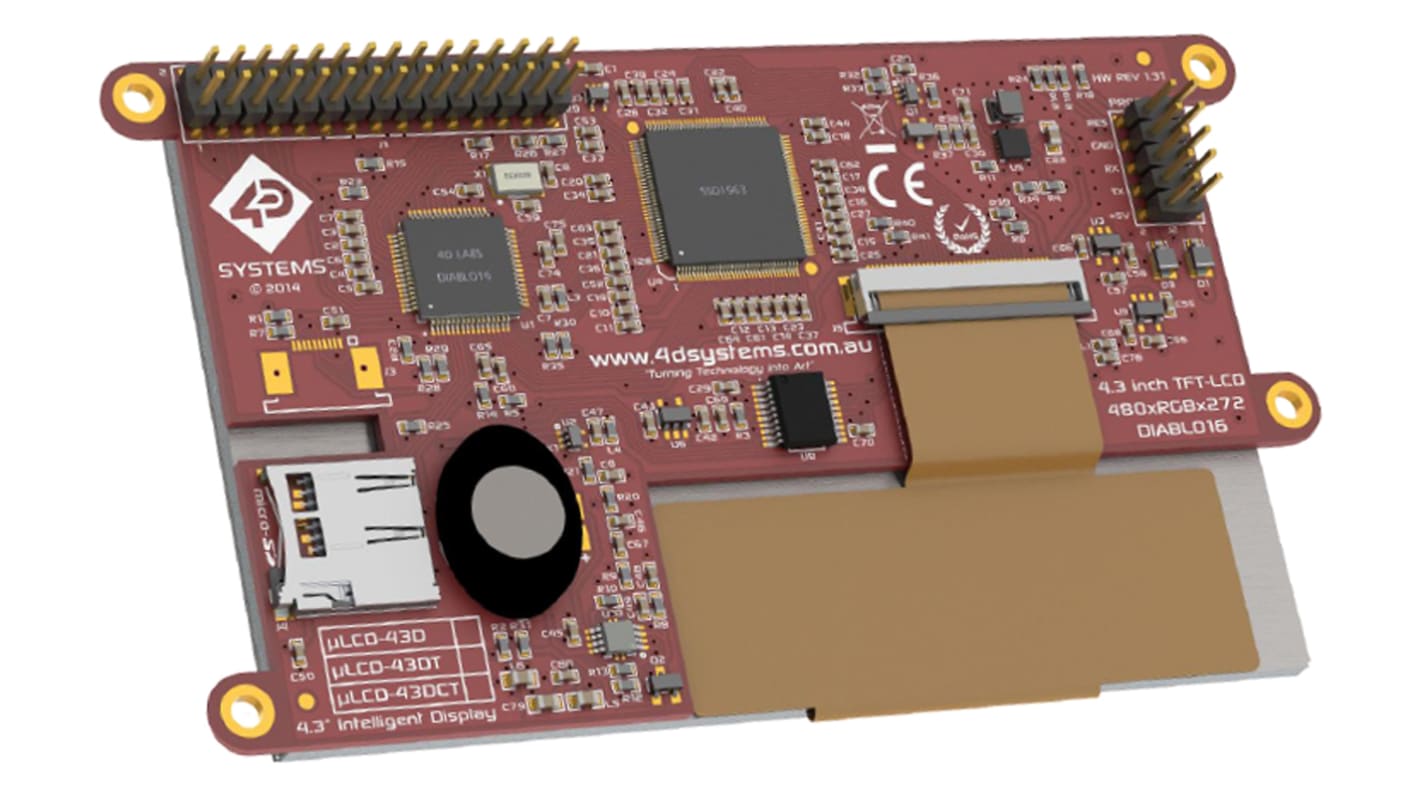

4D Systems uLCD-43DT LCD Colour Display Touch Screen, 4.3 in, 480 x 272 pixel

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩246,402.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 06일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩246,402.00
5 +₩236,554.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
902-8662
제조사 부품 번호:
uLCD-43DT
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

Product Type

LCD Colour Display

Diagonal Display Size

4.3in

Current

350mA

Screen Resolution

480 x 272 pixel

Touch Screen

Yes

Viewing Area Dimensions

95 x 54 mm

Touch Screen Type

Resistive

Backlight Type

LED

Minimum Supply Voltage

5.5V

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

60°C

Depth

53.85mm

Height

67mm

Width

119.5mm

Standards/Approvals

CE, RoHS Compliant

Brightness

480cd/m²

Display Type

LCD

Contrast Ratio

350:1

Resistive Touch LCD Modules with DIABLO16 processor, 4D Systems


4D Systems' range of resistive touch modules with DIABLO16 processor are available in three sizes: 3.5 inch, 4.3 inch and 7 inch. The on-board DIABLO16 graphics controller enables your module to display colour images, animation, icons and videos. You can also use 4Ds Workshop4 IDE for software development and coding using 4DGL graphics language.

Features & Benefits:

3.5 inch Resistive Touch Module — 9028656

•480 x 320 HVGA resolution

•Up to 65k colours

•4-wire resistive touch panel

•6 banks of 32750 bytes of flash memory

•32 Kb of SRAM

•16 GPIO pins

•microSD card adaptor

•FAT16 DOS compatible file access

•PWM audio pin

•Supports all available Windows fonts

•Suitable for a 4 V to 5.5 V power supply

•4 corner plates with 2.6 mm holes for mounting

•Dimensions: 57 mm x 85.2 mm x 15.8 mm

•Viewing area: 49.7 mm x 77 mm

4.3 inch Resistive Touch Module — 9028662

•480 x 272 HVGA resolution

•Up to 65k colours

•4-wire resistive touch panel

•6 banks of 32750 bytes of flash memory

•32 Kb of SRAM

•16 GPIO pins

•microSD card adaptor

•FAT16 DOS compatible file access

•PWM audio pin

•Supports all available Windows fonts

•Suitable for a 4 V to 5.5 V power supply

•4 corner plates with 2.6 mm holes for mounting

•Dimensions: 105 mm x 67.5 mm

•Viewing area: 95.04 mm x 53.85 mm

7 inch Resistive Touch Module — 9028666

•800 x 480 HVGA resolution

•Up to 65k colours

•4-wire resistive touch panel

•6 banks of 32750 bytes of flash memory

•32 Kb of SRAM

•16 GPIO pins

•microSD card adaptor

•FAT16 DOS compatible file access

•PWM audio pin

•Supports all available Windows fonts

•Suitable for a 4 V to 5.5 V power supply

•4 corner plates with 2.6 mm holes for mounting

•Dimensions: 165 mm x 100 mm x 15.5 mm

•Viewing area: 154.1 mm x 85.9 mm

4D Systems LCD Touchscreens


Note

For new designs the 4D Systems gen4 range of LCD displays should be considered, including:
• gen4-uLCD-43DT (RS part 1257947)
• gen4-uLCD-70DT (RS part 1257951)
