RS PRO LCD Colour Display, 0.96 in, 80 x 160 pixel

대량 구매 할인 받기

5개 더 담고 3% 할인 받기

View bulk pricing options

Subtotal (1 unit)*

₩28,640.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 11월 23일 부터 145 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
절감
1 - 4₩28,640.00-
5 - 9₩27,500.003%
10 - 24₩26,340.008%
25 - 124₩25,780.009%
125 +₩21,220.0025%

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
180-9034
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

LCD Colour Display

Diagonal Display Size

0.96in

Interface Type

SCL, RES, SPI, LED, GND, SDA

Current

2mA

Screen Resolution

80 x 160 pixel

Touch Screen

No

Viewing Area Dimensions

11 x 22 mm

Backlight Type

LED

Minimum Supply Voltage

3V

Maximum Supply Voltage

3V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Height

27.95mm

Depth

21.69mm

Standards/Approvals

No

Width

13.5mm

Brightness

400cd/m²

Contrast Ratio

800:1

Aspect Ratio

1:2

Display Type

TFT

Power Supply Included

Yes

COO (Country of Origin):
CN

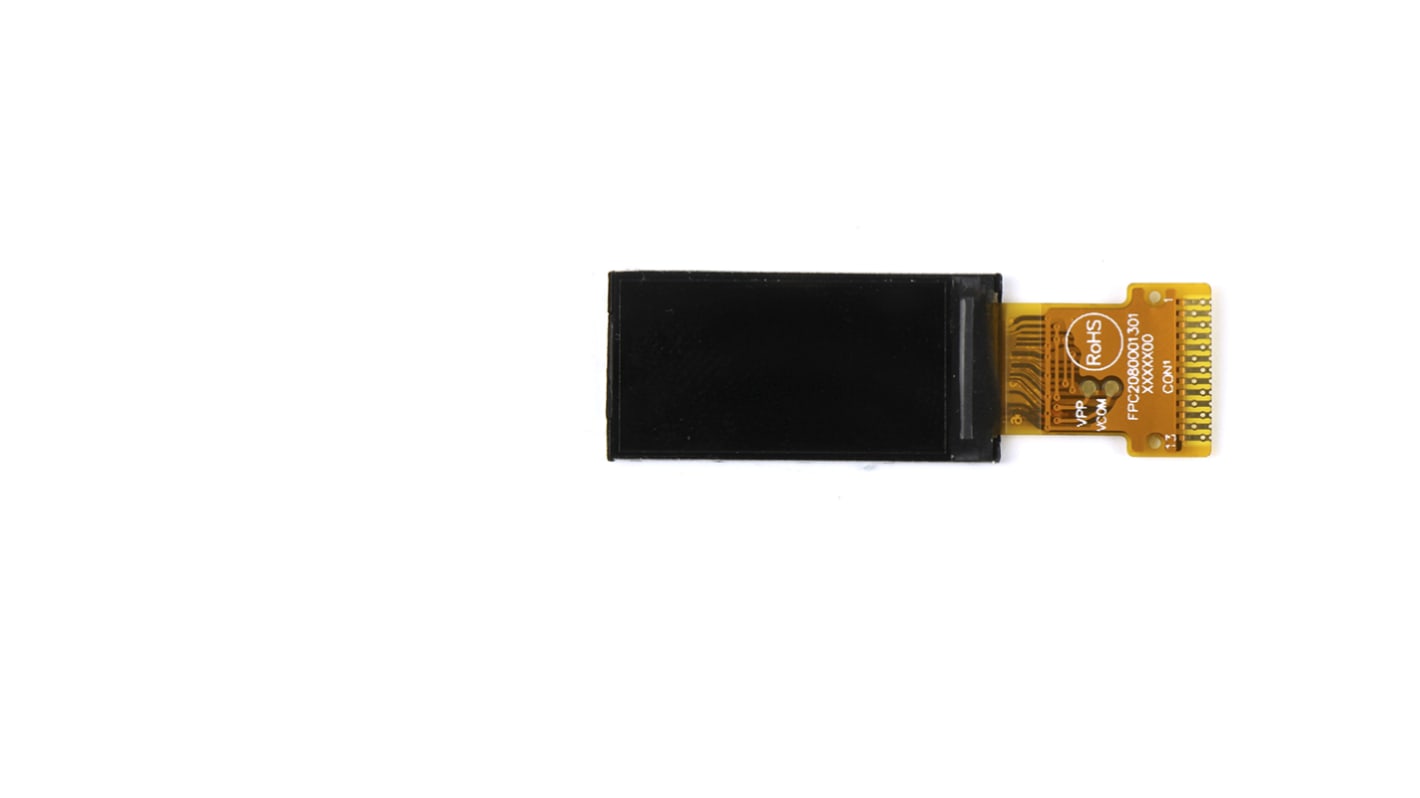

RS PRO TFT LCD Colour Display


This IPS, full colour TFT module display screen from our trusted and highly reliable own brand RS PRO offers 80 degree viewing angles all round, with a normally white LED backlight. It is a transmissive type display that operates in the normally black mode. This TFT LCD display features a 0.96-inch diagonally measured active display area with an 80 x 160 dot (80 horizontal by 160 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical Stripes.

Due to its lightweight and compact design, this TFT display is ideal for use in small portable devices or medical equipment that require a clear interface with full colour and enhanced brightness.

Features and benefits


• Durable and lightweight design

• Compact size that's ideal for portable or medical devices

• LCD type: TFT, Normally black, Transmissive

• 80 degree viewing angles

• Aspect ratio of 1:2

• 80x160 pixel full colour display

• Backlight for enhanced visibility and brightness

• Wide range of operating temperatures

What is TFT?


TFT refers to the term thin film transistor and is a type of transistor that controls the pixels in LCD display panels. The transistors allow the electrical current used to illuminate the display to turn on and off at a much faster rate, improving the brightness and smoothness of transitions. TFT screens are also known as active-matrix LCD's.

What is LCD?


LCD is an abbreviation for liquid crystal display which is a type of display screen commonly used in digital devices that require a clear and precise display. LCD screens tend to feature a backlight for improved visibility and brightness and offer overall better quality.

What is IPS?


IPS means in-plane switching and is used in conjunction with liquid crystal display (LCD) screens. IPS panels help to enhance colour and improve viewing angles, providing a better experience for the user.
