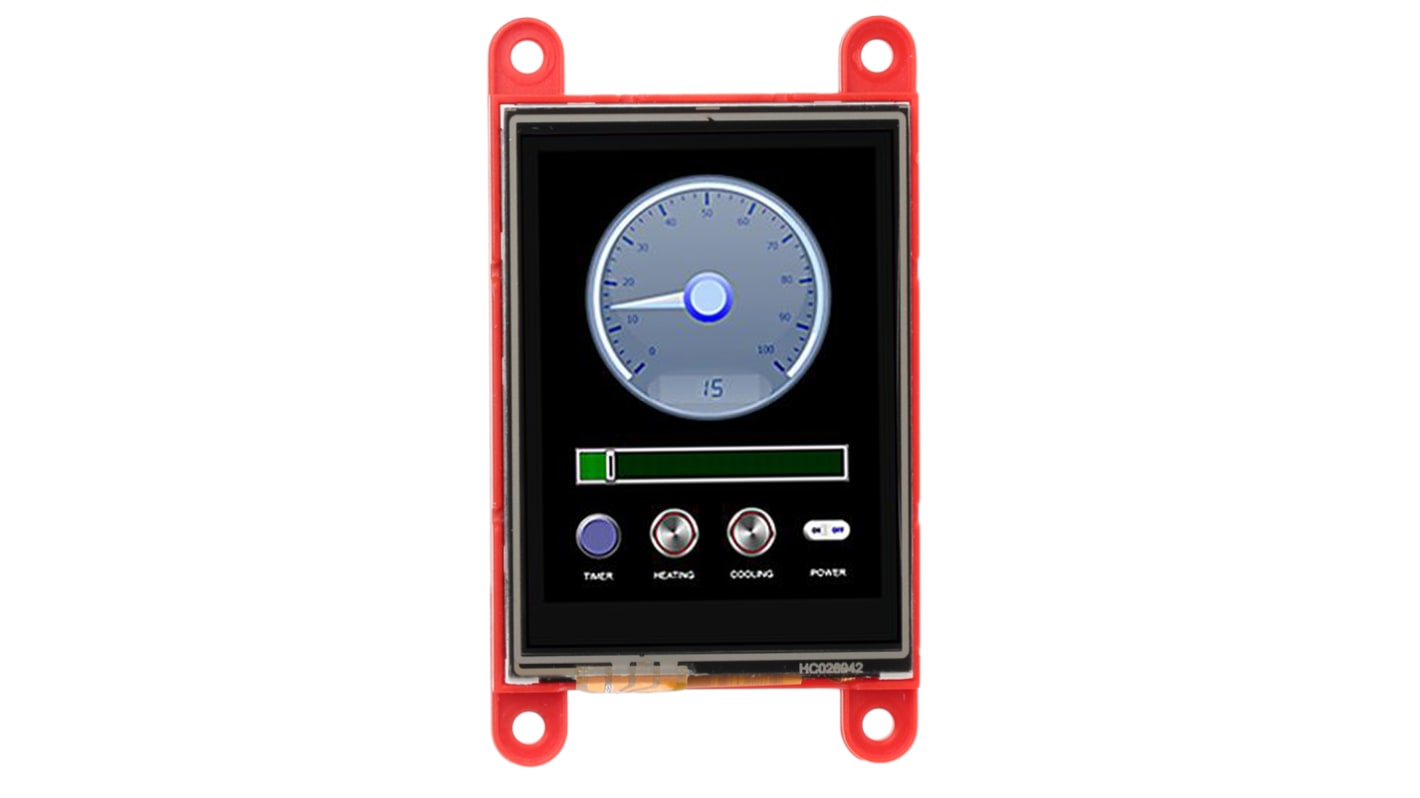

4D Systems gen4-uLCD-24PT TFT LCD Display Module / Touch Screen, 2.4in, 240 x 320pixels

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩47,150.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 31 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩47,150.40
10 - 24₩45,270.40
25 - 49₩44,368.00
50 +₩43,465.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
175-7753
제조사 부품 번호:
gen4-uLCD-24PT
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

Diagonal Display Size

2.4in

Resolution

240 x 320pixels

Touch Screen

Yes

Viewing Area Dimensions

49 x 37mm

Touch Screen Type

Resistive

Supply Voltage

4 → 5.5 V

Backlight Type

LCD

Display Mode

Transmissive

AC or DC Input Voltage

dc

Dimensions

44.8 x 7.2 x 78.4mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Brightness

182cd/m²

Operating Temperature Range

-20 → +70°C

Voltage Rating

5.5V

Depth

7.2mm

Viewing Area Width

36.72mm

Current Rating

150mA

Power Supply Included

Yes

Height

78.4mm

Width

44.8mm

Contrast Ratio

250:1

Viewing Area Height

48.96mm

Series

gen4

Display Type

TFT

COO (Country of Origin):
AU

4D Systems LCD Display Module


The 4D Systems LCD 2.4in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. It has 240 x 320 pixels resolution and 182cd/m² brightness. It offers an active viewing area with a width of 48.96mm and height of 36.72mm.

Features and Benefits


• Built-in extensive 4DGL graphics and system library functions
• Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier
• Display full colour images, animation, icons and video clips
• DOS compatible file access (FAT16 format) as well as low level access to card memory
• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
• RGB 65K true to life colours
• Universal Intelligent LCD-TFT display module powered by the Picaso processor

Certifications


• CE compliant
• REACH compliant
