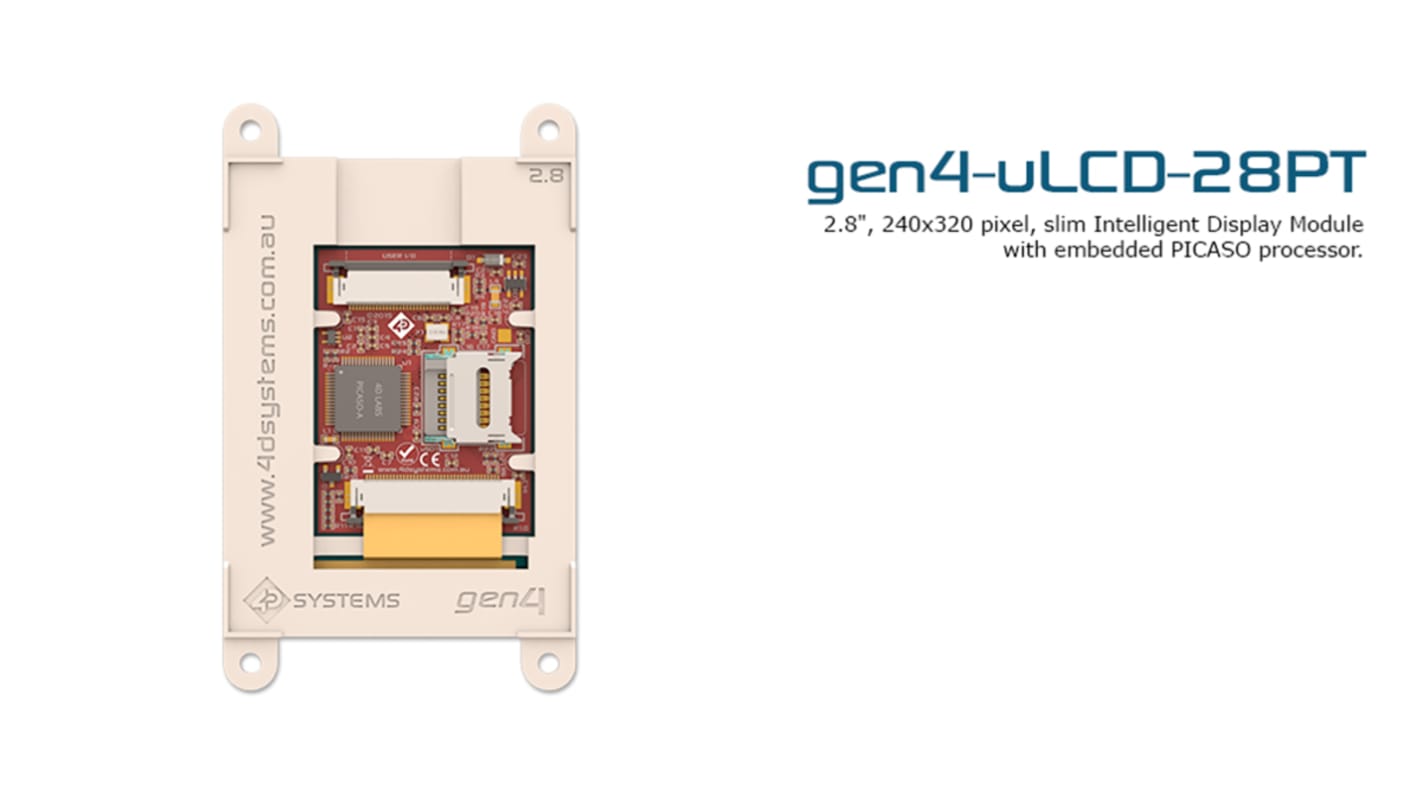

4D Systems gen4-uLCD-28PT LCD Display Module Touch Screen, 71.12 mm, 240 x 320 pixel
- RS 제품 번호:
- 175-7746
- 제조사 부품 번호:
- gen4-uLCD-28PT
- 제조업체:
- 4D Systems
Subtotal (1 unit)*
₩75,699.00
재고있음
- 14 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩75,699.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 175-7746
- 제조사 부품 번호:
- gen4-uLCD-28PT
- 제조업체:
- 4D Systems
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 4D Systems | |
| Product Type | LCD Display Module | |
| Diagonal Display Size | 71.12mm | |
| Current | 150mA | |
| Screen Resolution | 240 x 320 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 58 x 43 mm | |
| Touch Screen Type | Resistive | |
| Backlight Type | LCD | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, REACH | |
| Height | 87.3mm | |
| Depth | 57.6mm | |
| Width | 52.1mm | |
| Brightness | 140cd/m² | |
| Power Supply Included | Yes | |
| Contrast Ratio | 500:1 | |
| Series | gen4 | |
| Display Type | TFT | |
| 모두 선택 | ||
|---|---|---|
브랜드 4D Systems | ||
Product Type LCD Display Module | ||
Diagonal Display Size 71.12mm | ||
Current 150mA | ||
Screen Resolution 240 x 320 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 58 x 43 mm | ||
Touch Screen Type Resistive | ||
Backlight Type LCD | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, REACH | ||
Height 87.3mm | ||
Depth 57.6mm | ||
Width 52.1mm | ||
Brightness 140cd/m² | ||
Power Supply Included Yes | ||
Contrast Ratio 500:1 | ||
Series gen4 | ||
Display Type TFT | ||
- COO (Country of Origin):
- AU
4D Systems LCD Display Module
The 4D Systems LCD 2.8in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. This module is embedded with PICASO processor. It has 240 x 320 pixels resolution and 140cd/m² brightness. The display module offers an active viewing area of width 43.2mm and height 57.6mm.
Features and Benefits
• Built-in extensive 4DGL graphics and system library functions
• Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier
• Display full colour images, animation, icons and video clips
• DOS compatible file access (FAT16 format) as well as low level access to card memory
• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
• RGB 65K true to life colours
• Universal intelligent LCD-TFT display module powered by the Picaso processor
Certifications
• CE compliant
• REACH compliant
