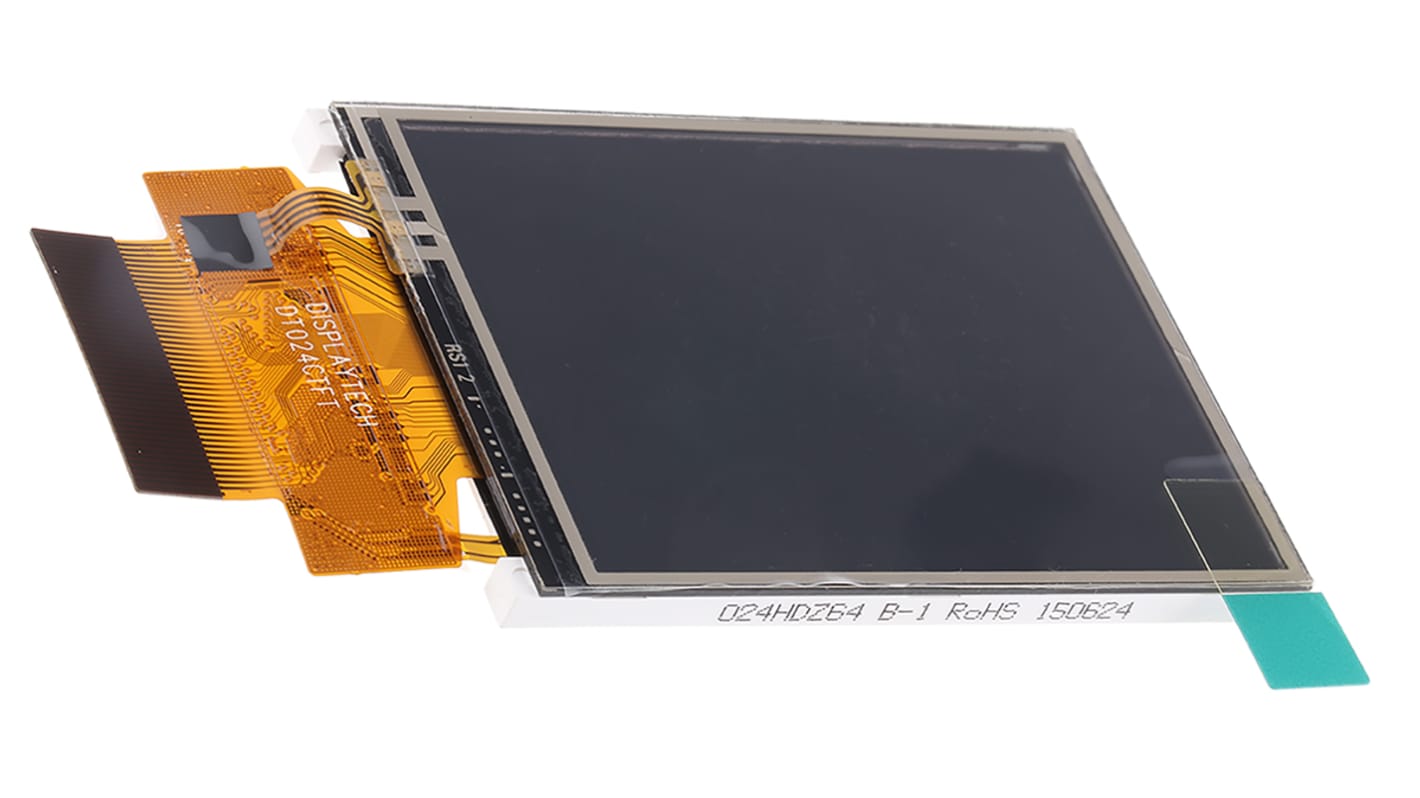

Displaytech DT024CTFT-TS TFT LCD Colour Display / Touch Screen, 2.4in QVGA, 240 x 320pixels

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 150 units)*

₩4,601,112.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 07일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
Per Box*
150 - 150₩30,674.08₩4,601,253.00
300 - 450₩30,061.20₩4,509,208.20
600 +₩29,459.60₩4,419,024.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
146-1605
제조 부품 번호:
DT024CTFT-TS
제조업체:
Displaytech
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Displaytech

Diagonal Display Size

2.4in

Interface Type

Parallel, RGB

Resolution

240 x 320pixels

Touch Screen

Yes

Viewing Area Dimensions

37 x 49mm

Touch Screen Type

Resistive

Supply Voltage

-0.3 → +4.6 V dc

Backlight Type

LED

Display Mode

Transmissive

AC or DC Input Voltage

dc

Dimensions

59.46 x 42.72 x 3.8mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Graphics Array Type

QVGA

Brightness

200cd/m²

Response Time

20ms

Viewing Area Height

36.72mm

Aspect Ratio

4:3

Operating Temperature Range

-20 → +70°C

Viewing Area Width

48.96mm

Height

59.46mm

Width

42.72mm

Depth

3.8mm

Contrast Ratio

350:1

Number of Colours

262,144

COO (Country of Origin):
CN

Displaytech TFT LCD Display Modules


Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.

• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 o’clock (DT035TFT and DT035TFT-TS are: 12 o’clock)
• Touch screen versions come fitted with a 4 wire resistive touch screen

Note

Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
