4D Systems gen4-4DCAPE-70CT-CLB LCD Colour Display Touch Screen, 7 in, 800 x 480 pixel

모든 LCD Colour Displays 열람하기

Subtotal (1 unit)*

₩176,494.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 98 개 단위 배송 준비 완료
  • 추가로 2026년 5월 12일 부터 75 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩176,494.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
136-9935
제조사 부품 번호:
gen4-4DCAPE-70CT-CLB
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

Diagonal Display Size

7in

Product Type

LCD Colour Display

Interface Type

UART

Screen Resolution

800 x 480 pixel

Current

1.1A

Touch Screen

Yes

Viewing Area Dimensions

154 x 86 mm

Touch Screen Type

Capacitive

Backlight Type

LED

Minimum Supply Voltage

5V dc

Maximum Supply Voltage

5V dc

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Height

10mm

Depth

85.63mm

Standards/Approvals

CE

Width

121.9mm

Brightness

475cd/m²

Series

gen4

Display Type

LCD

Contrast Ratio

500:1

COO (Country of Origin):
AU

4D Systems LCD Display

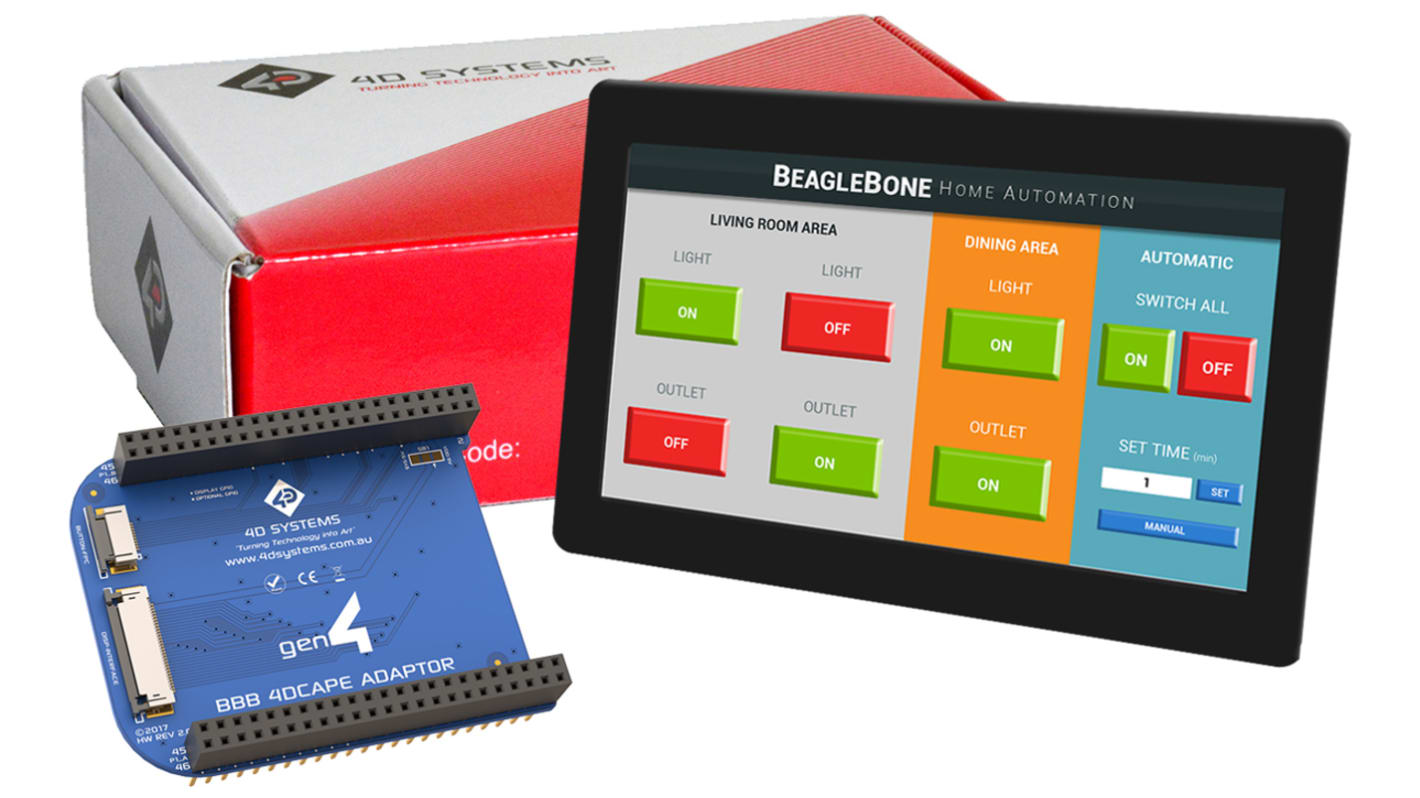

The 4D Systems gen4 series 7in LCD with touch is designed specifically for the BeagleBone Black development platform. It provides a simple means of adding a primary display with touch functionality to BeagleBone Black-based applications. The included 4DCAPE adaptor makes connecting the display to the BeagleBone Black easy. The 4DCAPE adaptor fits directly onto the expansion headers of the BeagleBone Black and connects to the display via a 30-way FFC connector. No other connections are needed, the BeagleBone Black provides all the necessary power and display signals via the 4DCAPE adaptor. This variant of the 4DCAPE LCD module range features capacitive touch and incorporates a FocalTech controller to interpret user inputs. The touch controller communicates with the BeagleBoard Black over I2C. Also featured on this variant is a pre-installed cover lens bezel, which allows the display to be mounted without additional mounting hardware. The display can be secured by the bezel using the included adhesive.

Kit contents

1 x gen4 4DCAPE LCD module

1 x gen4 4DCAPE adaptor

1 x 30-way FFC cable

Note:

The gen4 4DCAPE LCD modules are compatible with the BeagleBone Black only.

Features and Benefits


Capacitive touch TFT transmissive display

800 x 480 resolution

Cover lens bezel glass fronts for the display module

EEPROM CAPE ID selection via DIP switch

Simple to implement LCD Display with touch for BeagleBone Black

Electrical rating is 5VDC and 1.1A

Width of 121.9mm, depth of 10mm and height of 10mm

Certifications


CE certified
