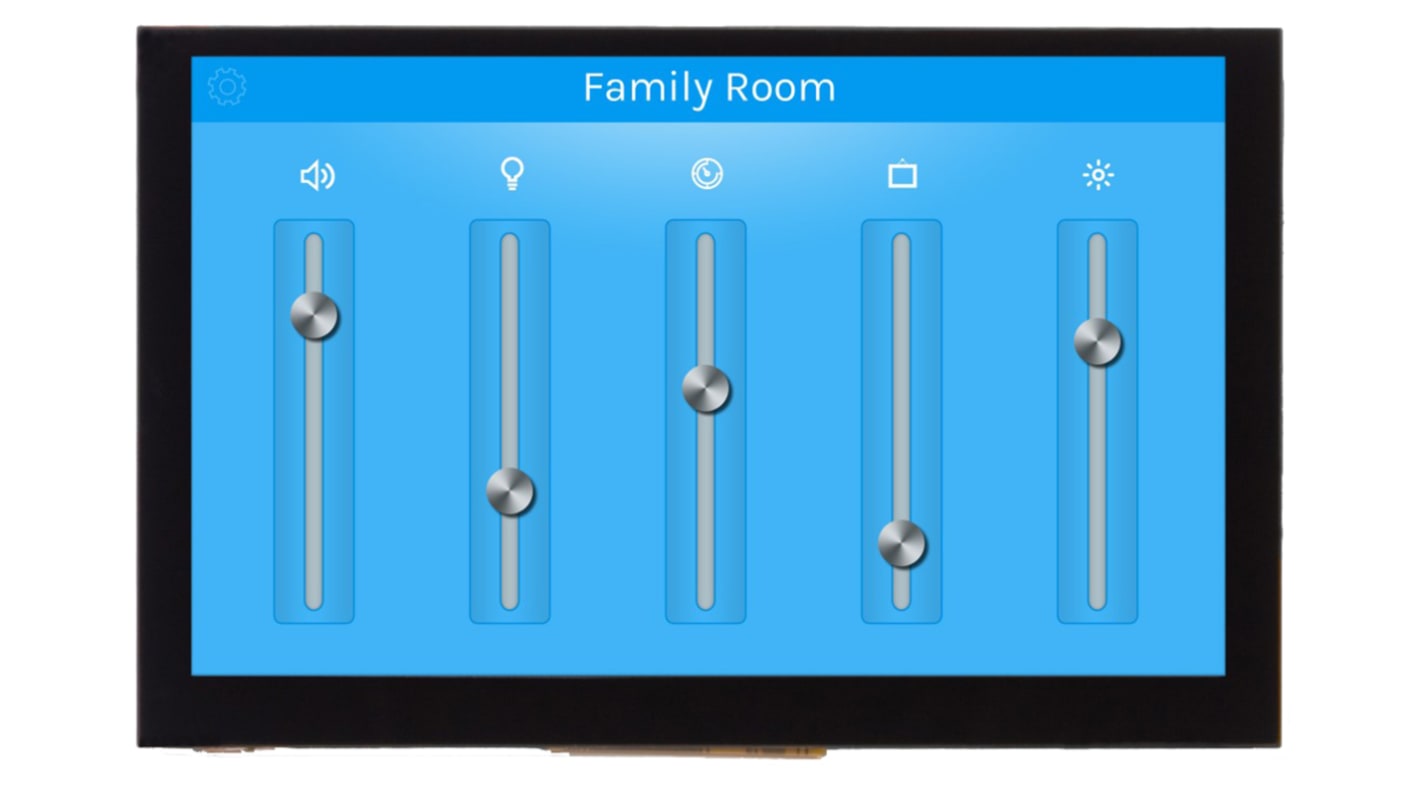

Displaytech DT050TFT-PTS TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels

모든 LCD Colour Displays 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
135-9778
제조사 부품 번호:
DT050TFT-PTS
제조업체:
Displaytech
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Displaytech

Diagonal Display Size

5in

Interface Type

Parallel

Resolution

800 x 480pixels

Touch Screen

Yes

Viewing Area Dimensions

108 x 65mm

Touch Screen Type

Capacitive

Supply Voltage

3 → 3.6 V

Display Mode

Transmissive

AC or DC Input Voltage

dc

Dimensions

121.1 x 76.2 x 4.75mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Current Rating

25mA

Height

76.2mm

Width

121.1mm

Viewing Area Height

64.8mm

Contrast Ratio

500:1

Number of Colours

16,777,216

Response Time

30ms

Power Supply Included

Yes

Voltage Rating

3 → 3.6V

Depth

4.75mm

Operating Temperature Range

-20 → +70°C

Viewing Area Width

108mm

COO (Country of Origin):
CN

DT050TFT series 5” Colour TFT LCD Display


Five inch TFT LCD modules with 800 x 480 resolution RGB colour displays from Displaytech. The displays use two driver ICs which allow for different supply voltages and pin control features making these LCDs an ideal option for a variety of video system applications. The display module includes an LED backlight and is also available with a touch screen panel in either resistive (single-finger or stylus pressure) or projected capacitive (five-finger, multi-gesture) touch technology.

135-9776 · DT050TFT Colour LCD module
135-9777 · DT050TFT-TS Colour LCD module with resistive touch screen
135-9778 · DT050TFT-PTS Colour LCD module with capacitive touch screen

• 800 x 480 pixel resolution
• Display source driver: Ilitek ILI6122
• Display gate driver: Ilitek ILI5960
• LED backlight
• 24-bit RGB parallel interface
• FPC (Flexible Printed Circuit) connection
• Available with resistive or capacitive touch screen

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
