4D Systems 4Duino-24 LCD Colour Display Touch Screen, 60.96 mm, 240 x 320 pixel
- RS 제품 번호:
- 124-0944
- 제조사 부품 번호:
- 4Duino-24
- 제조업체:
- 4D Systems
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩146,380.00
재고있음
- 15 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩146,380.00 |
| 10 - 49 | ₩141,260.00 |
| 50 + | ₩138,440.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-0944
- 제조사 부품 번호:
- 4Duino-24
- 제조업체:
- 4D Systems
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 4D Systems | |
| Diagonal Display Size | 60.96mm | |
| Product Type | LCD Colour Display | |
| Current | 320mA | |
| Screen Resolution | 240 x 320 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 49 x 37 mm | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 72.8mm | |
| Depth | 48.96mm | |
| Standards/Approvals | CE | |
| Width | 53.3mm | |
| Brightness | 304cd/m² | |
| Display Type | LCD | |
| Contrast Ratio | 250:1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 4D Systems | ||
Diagonal Display Size 60.96mm | ||
Product Type LCD Colour Display | ||
Current 320mA | ||
Screen Resolution 240 x 320 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 49 x 37 mm | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Height 72.8mm | ||
Depth 48.96mm | ||
Standards/Approvals CE | ||
Width 53.3mm | ||
Brightness 304cd/m² | ||
Display Type LCD | ||
Contrast Ratio 250:1 | ||

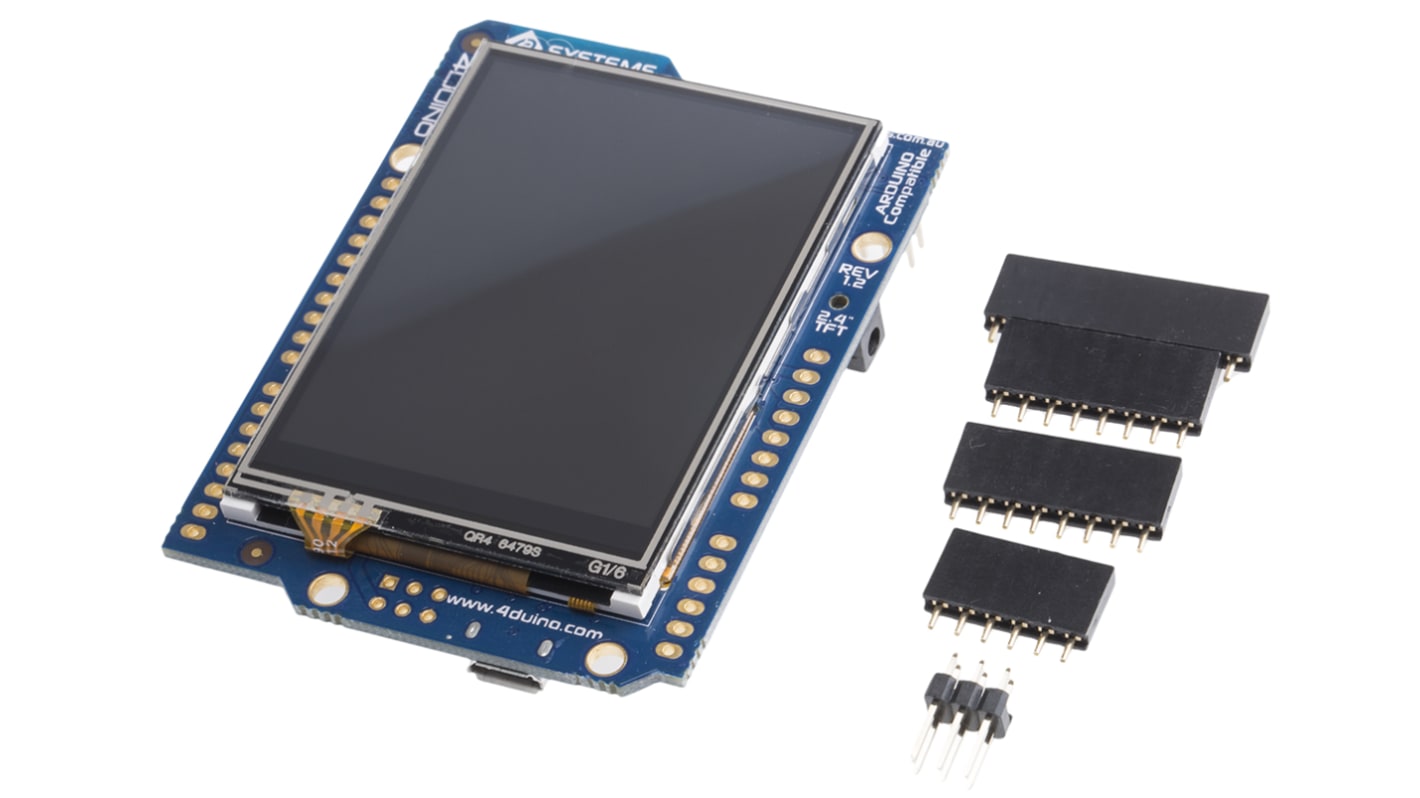

4Duino-24 Touchscreen Display Module
The 4Duino-24 is an Arduino™ compatible display module with a 240 x 320 resolution TFT LCD Display with Touchscreen and wireless communication. The 4Duino-24 can display full-colour images, animations, icons and video clips.
16MHz ATmega32u4 microcontroller with 32KB Flash memory, 2.5KB SRAM, 1KB EEPROM
2.4in QVGA resolution resistive-touch display module with PICASO GPU, 14KB Flash memory, 14KB SRAM
ESP8266 IEEE 802.11b/g/n WiFi module with 1MB Flash memory
20 x GPIO pins (including 7 x PWM outputs and 12 x analogue inputs)
MicroUSB connector for programming and power
MicroSD card slot for multimedia storage and data logging with DOS-compatible file access (FAT16 format)
2 x 3 way ICSP header for programming the microcontroller
2 x 5 way header for programming PICASO and ESP8266 via a 4D Systems Programming Cable or Adapter
Power supply +5Vdc barrel jack socket
Power supply: +4.0V to +5.5Vdc
Operating temperature range: -15 to +65°C
Dimensions: 72.8 x 53.3 x 14.6mm with Arduino Rev 3 Shield format
4D Systems LCD Touchscreens
