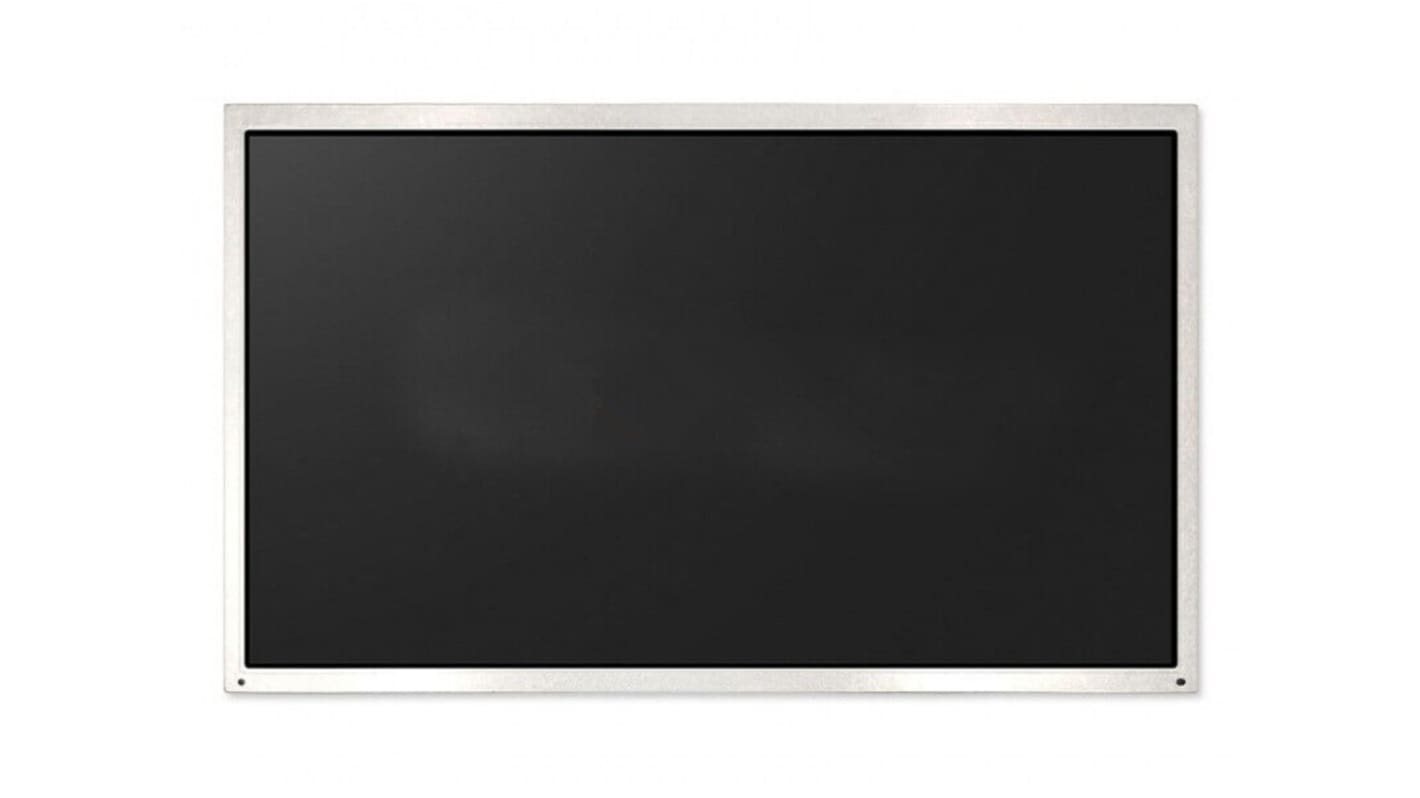

AUO G156XW01 V3 TFT LCD Colour Display, 15.6in, 1366 x 768pixels

Subtotal (1 unit)*

₩551,892.80

Add to Basket
수량 선택 또는 입력
신제품 - 오늘 사전 주문하세요
  • 2026년 4월 01일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 +₩551,892.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
330-851
제조 부품 번호:
G156XW01 V3
제조업체:
AUO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

AUO

Diagonal Display Size

15.6in

Interface Type

LVDS, RGB

Resolution

1366 x 768pixels

Touch Screen

No

Viewing Area Dimensions

344.232 x 193.536mm

Display Matrix Technology

TFT

Display Type

TFT

COO (Country of Origin):
TW
The AUO 15.6 inch wide color a-Si TFT-LCD module supporting an HD resolution of 1366 x 768 and 16.2M colors with RGB 6 bit + 2-FRC data. It features an LVDS interface for all input signals and includes an LED driver for the backlight.

Screen diagonal 15.6 inch
Pixel arrangement RGB vertical stripe
Display mode TN mode normally white
Nominal input voltage VDD +5.0V typical
LCD power consumption 2.2W typical 2.6W max all black pattern
LED power consumption 6.6W typical 7.92W max all black pattern
