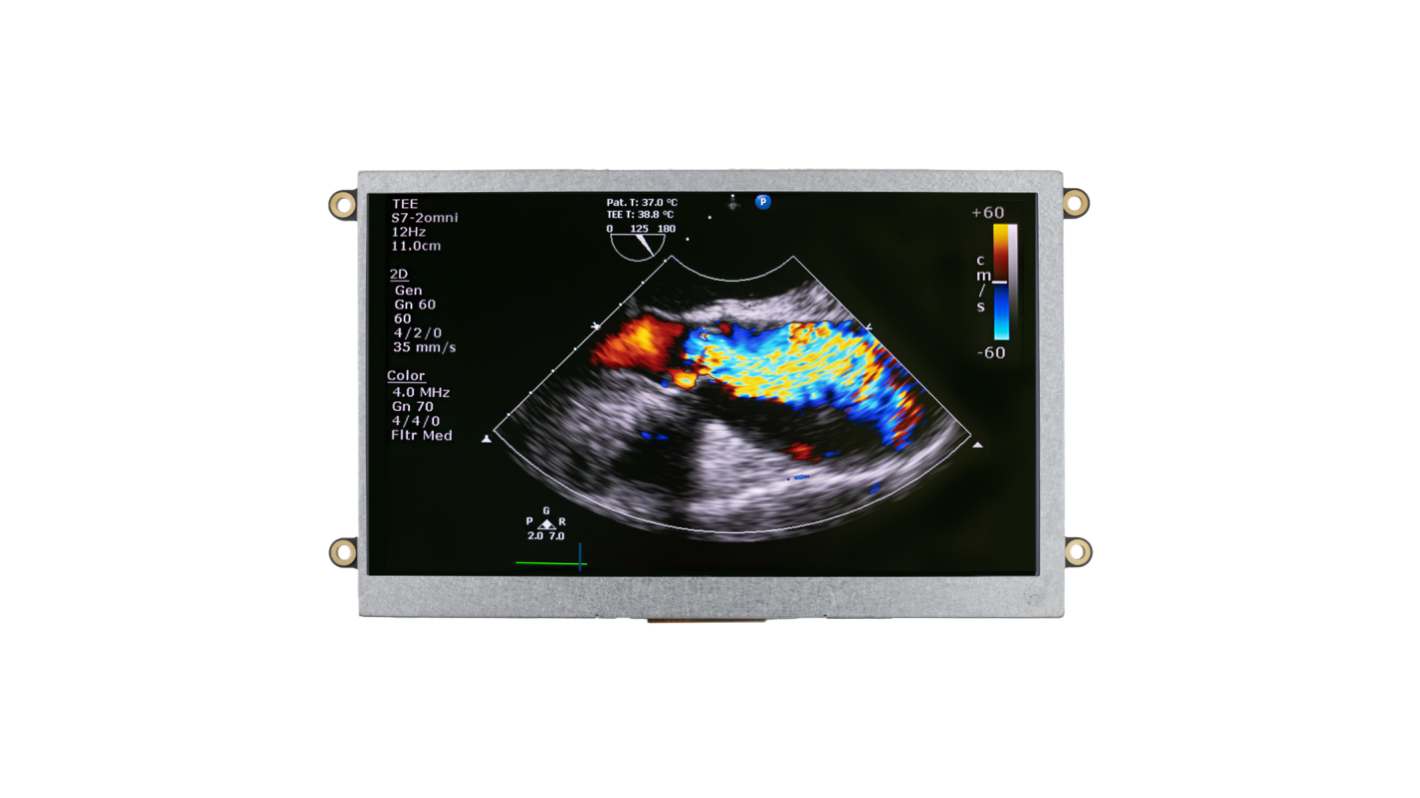

NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-HDMI-N-RSXP IPS TFT TFT LCD Display / Touch Screen, 7in, 800 x 480pixels
- RS 제품 번호:
- 218-689
- 제조사 부품 번호:
- NHD-7.0-HDMI-N-RSXP
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
Subtotal (1 unit)*
₩183,431.60
재고있음
- 추가로 2025년 12월 15일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩183,431.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 218-689
- 제조사 부품 번호:
- NHD-7.0-HDMI-N-RSXP
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NEWHAVEN DISPLAY INTERNATIONAL | |
| Diagonal Display Size | 7in | |
| Interface Type | HDMI | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 156.7 x 89.1mm | |
| Supply Voltage | 5 V | |
| Touch Screen Type | Capacitive | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| Dimensions | 165 x 104 x 16.6mm | |
| Display Matrix Technology | IPS TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 1000cd/m² | |
| Display Type | TFT | |
| Viewing Area Height | 127mm | |
| Height | 127mm | |
| Standards Met | RoHS Compliant | |
| Viewing Area Width | 211.67mm | |
| Operating Temperature Range | -20 → 70°C | |
| Width | 211.67mm | |
| Voltage Rating | 5V | |
| 모두 선택 | ||
|---|---|---|
브랜드 NEWHAVEN DISPLAY INTERNATIONAL | ||
Diagonal Display Size 7in | ||
Interface Type HDMI | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 156.7 x 89.1mm | ||
Supply Voltage 5 V | ||
Touch Screen Type Capacitive | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
Dimensions 165 x 104 x 16.6mm | ||
Display Matrix Technology IPS TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 1000cd/m² | ||
Display Type TFT | ||
Viewing Area Height 127mm | ||
Height 127mm | ||
Standards Met RoHS Compliant | ||
Viewing Area Width 211.67mm | ||
Operating Temperature Range -20 → 70°C | ||
Width 211.67mm | ||
Voltage Rating 5V | ||
- COO (Country of Origin):
- CN
The NEWHAVEN DISPLAY INTERNATIONAL 7 inch IPS TFT LCD module has built-in HDMI compatibility for a streamlined connection between devices with fewer cables. This transmissive Liquid Crystal Display does not feature a touchscreen, however its impressive quality make it an excellent choice for projects that desire high end visual output without touch functionality.
EMI Shielded FPC
Optical features normally black transmissive and anti glare
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
Optical features normally black transmissive and anti glare
Eco-Conscious Design REACH and RoHS compliant for environmental responsibility
