NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-800480EF-ATXL#-T TFT LCD Display Touch Screen, 7 in, 800 x 480 pixel
- RS 제품 번호:
- 181-448
- 제조사 부품 번호:
- NHD-7.0-800480EF-ATXL#-T
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
Subtotal (1 unit)*
₩232,960.00
일시적 품절
- 2027년 2월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩232,960.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-448
- 제조사 부품 번호:
- NHD-7.0-800480EF-ATXL#-T
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NEWHAVEN DISPLAY INTERNATIONAL | |
| Product Type | TFT LCD Display | |
| Diagonal Display Size | 7in | |
| Interface Type | RGB | |
| Screen Resolution | 800 x 480 pixel | |
| Current | 143mA | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 154.84 x 86.63 mm | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, REACH | |
| Brightness | 260cd/m² | |
| Contrast Ratio | 500:1 | |
| Display Type | TFT | |
| Power Supply Included | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 NEWHAVEN DISPLAY INTERNATIONAL | ||
Product Type TFT LCD Display | ||
Diagonal Display Size 7in | ||
Interface Type RGB | ||
Screen Resolution 800 x 480 pixel | ||
Current 143mA | ||
Touch Screen Yes | ||
Viewing Area Dimensions 154.84 x 86.63 mm | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, REACH | ||
Brightness 260cd/m² | ||
Contrast Ratio 500:1 | ||
Display Type TFT | ||
Power Supply Included Yes | ||
- COO (Country of Origin):
- CN

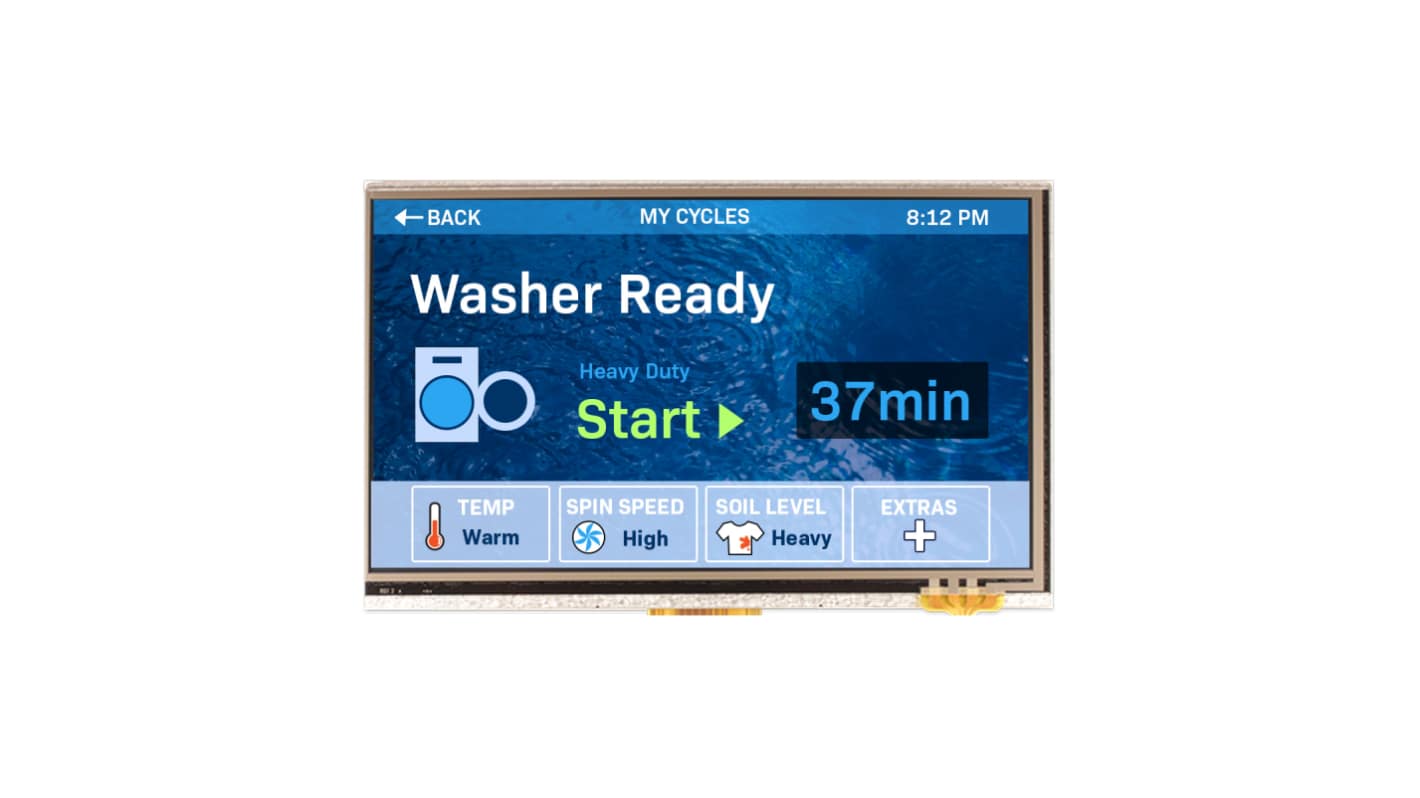

The NEWHAVEN DISPLAY INTERNATIONAL TFT display redefines visual engagement with its vibrant 800x480 resolution. Designed with a resistive touch panel, this display not only enhances interactivity but also ensures a seamless user experience. The TFT is characterised by its anti-glare surface and high transmissivity, making it suitable for a variety of environments.
Incorporates durable construction to withstand rigorous usage
Supports a variety of display controller configurations for versatile applications
Facilitates easy integration with standard connectors streamlining installation
