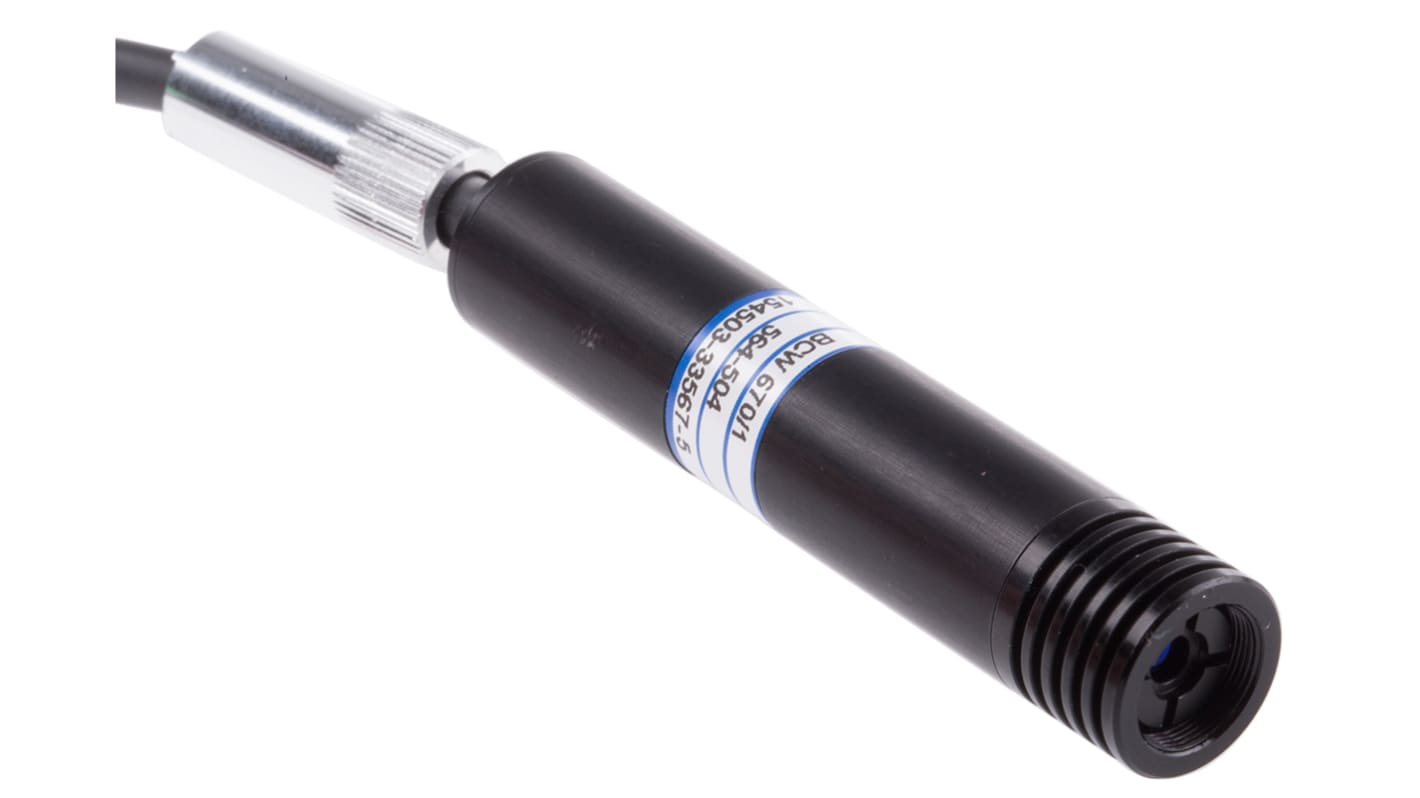

1060-41-000 Laser Module, 670nm 1mW, Modulating, Linear & TTL control Ellipse pattern -8 → -12 V

모든 Laser Modules 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩348,326.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 1₩348,326.40
2 +₩333,606.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
564-504
제조사 부품 번호:
1060-41-000
제조업체:
Global Laser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Global Laser

Laser Type

Modulating

Laser Colour

Red

Emission Pattern

Ellipse

Laser Wavelength

670nm

Optical Output Power

1mW

Laser Class

2

Control Type

Linear, TTL

Parallel Beam Divergence FWHM

0.5mrad

Perpendicular Beam Divergence FWHM

0.5mrad

Dimensions

15.25 (Dia.) x 75mm

Diameter

15.25mm

Length

75mm

Maximum Supply Voltage

-12V

Minimum Supply Voltage

-8V

Series

Beta TX

Supply Voltage Range

-8 → -12 V

COO (Country of Origin):
GB

Beta TX Series


The Beta TX series from Global Laser consists of high-quality laser diode modules. These modules combine a laser diode, a driver and modulation circuitry, and a collimating lens. All housed in a black powder coated brass body which is electrically isolated
A high-quality adjustable lens enables the Beta TX modules to provide a highly collimated visible beam. This quality is ideal for precision applications such as alignment, edge detection and targeting.
The visible laser spot size is adjustable by simply shining it onto a suitable target and adjusting using the focusing tool provided.
The lasers can be amplitude modulated using digital or analogue signals over a frequency range of 100 Hz to 50 MHz. This feature makes them ideal for use in data transmission and audio/video communications.

Electrical Connections:
Black: -Vcc
Green: 0v
White: Interlock
Blue: TTL disable
Green & yellow (twisted pair): Modulation

Note

The spot size is obtained by optical measurement at a distance of 25mm.

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.


Laser Modules, Global Laser
