제조사부품번호

StarTech.com 8 Port 1 Displays USB USB, VGA Console 1280 x 1024 pixel Maximum Resolution

RS 제품 번호:: 256-7002
Distrelec 제품 번호:: 302-31-543
제조사 부품 번호:: RKCONS1708K
제조업체:: StarTech.com

StarTech.com 8 Port 1 Displays USB USB, VGA Console 1280 x 1024 pixel Maximum Resolution

Subtotal (1 unit)*

₩2,828,720.00

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩2,828,720.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 256-7002
Distrelec 제품 번호:: 302-31-543
제조사 부품 번호:: RKCONS1708K
제조업체:: StarTech.com

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	StarTech.com
	Video Connection Type	USB, VGA
	Product Type	Console
	Number of Ports	8
	Supported Number of Displays	1
	Number of Video Outputs	1
	Maximum Resolution	1280 x 1024 pixel
	Keyboard/Mouse Connection Type	USB
	Standards/Approvals	CE, RoHS, FCC
	Width	480mm
	Height	420mm
	Depth	623mm
	Keyboard Layout	QWERTY

	모두 선택
	브랜드 StarTech.com
	Video Connection Type USB, VGA
	Product Type Console
	Number of Ports 8
	Supported Number of Displays 1
	Number of Video Outputs 1
	Maximum Resolution 1280 x 1024 pixel
	Keyboard/Mouse Connection Type USB
	Standards/Approvals CE, RoHS, FCC
	Width 480mm
	Height 420mm
	Depth 623mm
	Keyboard Layout QWERTY

COO (Country of Origin):: CN

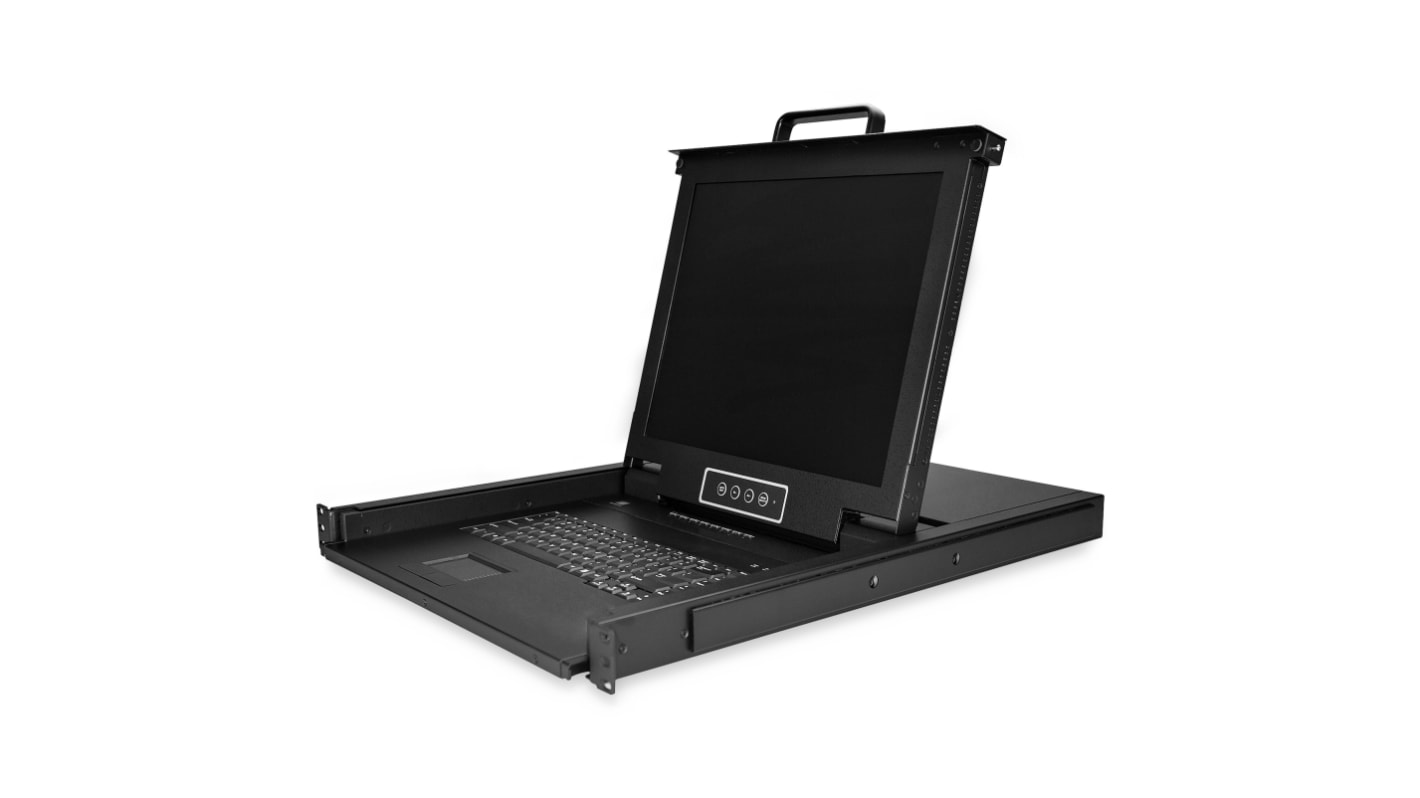

StarTech Console, 480mm Width, 1280x1024 Maximum Resolution - RKCONS1708K

This console provides centralised control of up to eight servers from a single, rack-mounted unit that occupies 1U of rack space. It combines a 17 inch Active Matrix TFT display with a QWERTY keyboard and integrated trackpad, supporting a single VGA/USB video output and USB keyboard/mouse connections for straightforward access in cabinet and server-room environments.

Features and Benefits:

• 8-port KVM switch enables direct access to eight hosts
• 1280 x 1024 resolution supports clear single-display output
• USB and VGA connectivity ensures broad platform compatibility
• Durable steel construction delivers long service life
• Operating range 0°C to 40°C supports standard server-room environments

Applications

• Suitable for managing multiple rack-mounted servers
• Used with cabinet KVM switches for consolidated control
• Ideal for space-constrained rack installations
• Can be used for local maintenance and troubleshooting
• Used for single-display monitoring of connected systems

What cabling and mounting accessories are provided?

The package includes eight VGA KVM cables, two mounting rails, eight M5 cage nuts, eight M5 screws, and multiple international power leads.

How is user access controlled for multiple operators?

User access is managed via on-screen display with multi-level security, hot-keys, and configurable port permissions.

What are the power and environmental operating parameters?

The console accepts 100 to 240V AC, consumes 17W, operates from 0°C to 40°C, and stores between -20°C and 60°C.

What physical indicators assist in monitoring connection status?

Eight bi-colour LEDs indicate online and selected port states for quick status checks.

How is the unit serviced or supported internationally?

It includes five regional power leads and offers free lifetime multilingual technical support.
