Name: WISKA COMBI Series White Polypropylene Junction Box, IP67, IP66, 4 Terminals, No, 160 mm, 140 mm 81 mm
Brand: WISKA
SKU: 771-9552
Price: 42770.00 KRW
Availability: InStock

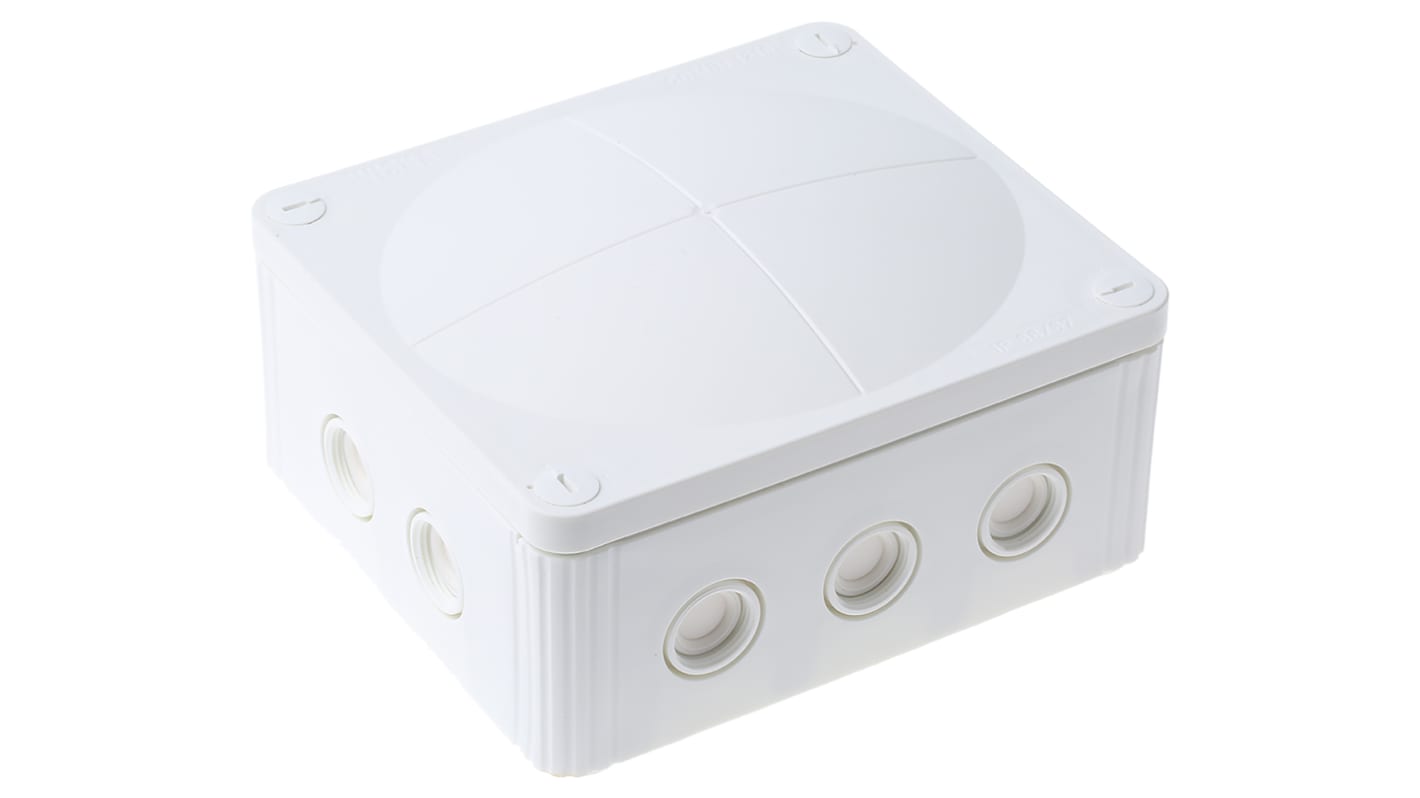

COMBI 1210 Junction Box

Introducing the range of professional junction boxes from WISKA. These boxes are water, flame, UV and impact resistant. Manufactured in flame-retardant & halogen-free material that is resistant to vegetable and animal fats, mineral oil, diesel, alcohol and weak acids. COMBI 1210 series boxes have an integrated thread in which cable glands can be directly mounted into – without locknuts. These boxes feature a patented combination of thread and membrane saves you one further working process and a bellied lid that offers a 10% more room inside in comparison to regularly shaped boxes.

Features and Benefits:

• 10% more room inside, thanks to the bellied cover

• Solid thermoplastic housing made from 2 different moulded materials

• 10 x M20 entries with elastic soft membrane and thread, 3 in each side and 2 in each end (option of using M25 knockouts instead)

• 4 x M20 entries with a self-sealing membrane in the base of the junction box enable assembly directly from the wall

• Quick release lid screws made of plastic will not rust and stay securely in place

• Weatherproof, resistant to ultraviolet, shatterproof and impact resistant

• Flame retardant and halogen-free

• Mounted via holes in the corners of the box, separated from the inside of the enclosure, thus not affecting the IP rating

Wisko 1210 boxes are in three colour options:

• Grey (160 mm x 140 mm x 81 mm) - 7719540

• Black (160 mm x 140 mm x 81 mm)- 7719559

• White (160 mm x 140 mm x 81 mm) - 7719552

Optional accessories:

• DIN Rail kit for mounting with clamps 771-9565

• Earthing kit to connect BW/CW cable glands when using SWA cables 771-9556

Typical Application:

Junctions Boxes are primarily used in building construction and are designed to provide protection to wiring circuits and electrical connections for easy access. Boxes are usually made from metal or heavy-duty plastic and in most situations can be used both indoor and outdoor due to water and impact resistance.

Typically junction boxes are used for:

• Connecting additional sockets to circuits

• Adding lighting points

• Extending circuits

• Electricity circuit repairs

Approvals & Certification:

• IP66 / 67 according to DIN EN 60529

• Glow wire test 750°C acc. to EN 60695-2-11

FAQs:

Does this box come with terminal?

Yes, these boxes are supplied with a 5-pole terminal.

What's included in the set?

Boxes are supplied complete with:

• 4 captive quick-release lid screws

• 5-pole terminal

Standards

EN60529, EN60695-2-11

모두 선택	제품 정보	값
	브랜드	WISKA
	Product Type	Junction Box
	Width	140 mm
	Length	160mm
	Material	Polypropylene
	Height	81mm
	IP Rating	IP67, IP66
	Number of Terminals	4
	Colour	White
	Hazardous Area Certification	No
	Number of Ways	10
	Cable Entry	5 x M25
	Current Rating	57 A
	Standards/Approvals	RoHS
	Series	COMBI

	모두 선택
	브랜드 WISKA
	Product Type Junction Box
	Width 140 mm
	Length 160mm
	Material Polypropylene
	Height 81mm
	IP Rating IP67, IP66
	Number of Terminals 4
	Colour White
	Hazardous Area Certification No
	Number of Ways 10
	Cable Entry 5 x M25
	Current Rating 57 A
	Standards/Approvals RoHS
	Series COMBI
