RS PRO Black Nylon Junction Box, IP68, 5 Terminals
- RS 제품 번호:
- 469-1818
- Distrelec 제품 번호:
- 303-95-148
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩38,333.20
재고있음
- 7 개 단위 배송 준비 완료
- 추가로 다른 지역에서 345 개 단위 배송 준비 완료
- 추가로 2026년 1월 28일 부터 120 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩38,333.20 |
| 10 - 49 | ₩37,261.60 |
| 50 + | ₩30,681.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 469-1818
- Distrelec 제품 번호:
- 303-95-148
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Material | Nylon | |
| Length | 130mm | |
| Height | 32mm | |
| IP Rating | IP68 | |
| Number of Terminals | 5 | |
| Colour | Black | |
| Number of Ways | 5 | |
| Cable Entry | 2 | |
| Current Rating | 32A | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Material Nylon | ||
Length 130mm | ||
Height 32mm | ||
IP Rating IP68 | ||
Number of Terminals 5 | ||
Colour Black | ||
Number of Ways 5 | ||
Cable Entry 2 | ||
Current Rating 32A | ||

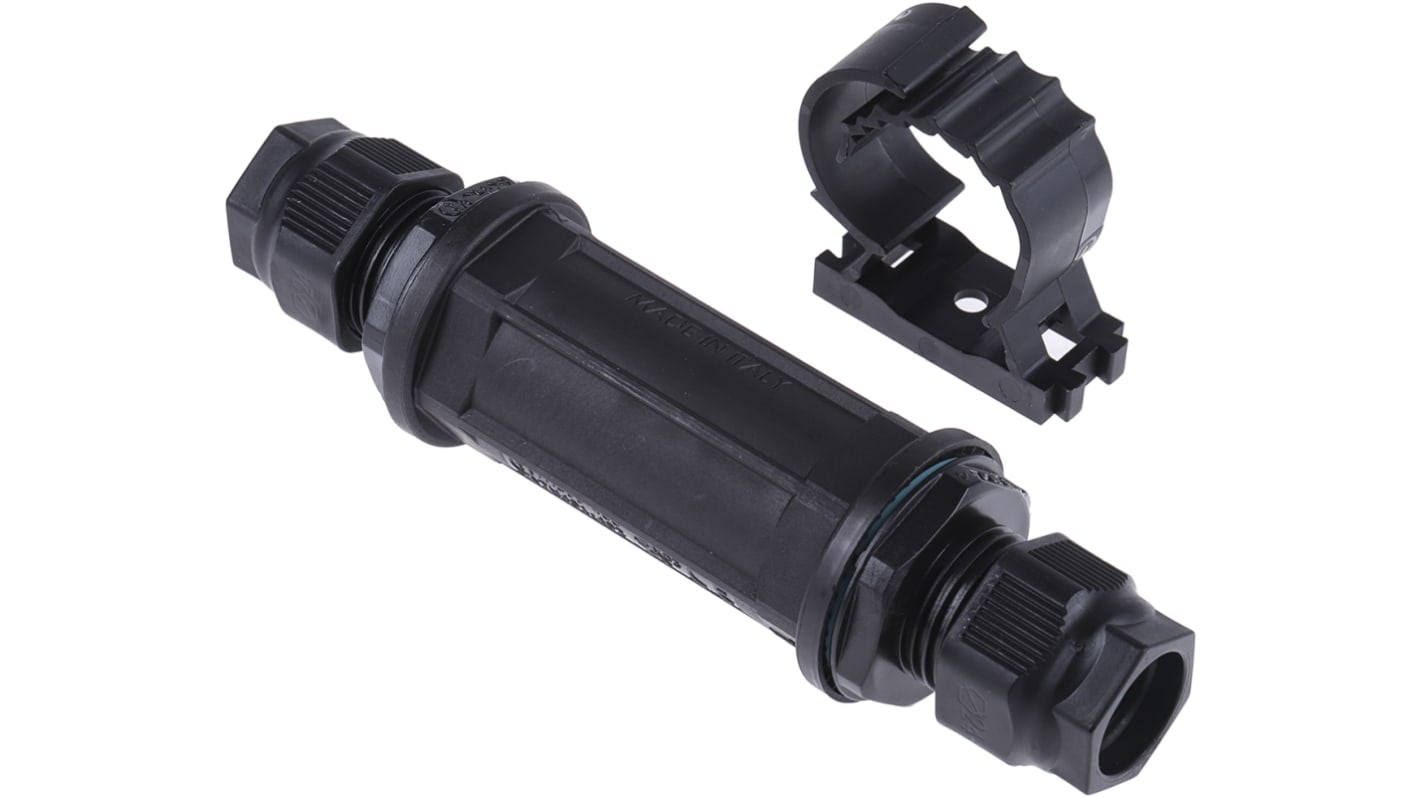

RS PRO Inline Junction Box
Use this cable connector to make reliable electrical connections in the most extreme environments. This 5-pole RS PRO connector is tough and extremely durable and works well with any circular profile cable.
With an IP68 certification, it is highly waterproof and can be immersed in depths of more than 1 m. It's also dust-proof and can operate at 5-bar pressure, allowing this circular connector to be used in marine and rugged applications. Accepting wires of 4 mm², this non-fused terminal block operates at temperatures between -20°C and +125°C. Its brass contacts are nickel-plated, making them resistant to rust.
Non-fused terminal blocks are used in the power systems of electrical devices and in data transfer and electrical signal transmission. As part of the RS PRO range, this item has been stringently tested for safety, durability and quality.
With an IP68 certification, it is highly waterproof and can be immersed in depths of more than 1 m. It's also dust-proof and can operate at 5-bar pressure, allowing this circular connector to be used in marine and rugged applications. Accepting wires of 4 mm², this non-fused terminal block operates at temperatures between -20°C and +125°C. Its brass contacts are nickel-plated, making them resistant to rust.
Non-fused terminal blocks are used in the power systems of electrical devices and in data transfer and electrical signal transmission. As part of the RS PRO range, this item has been stringently tested for safety, durability and quality.
Features and Benefits
• 5-pole non-fused terminal block
• Current rating of 32 A
• Voltage rating of 450 V
• Brass contacts, nickel-plated
• Operating temperature range of -20°C to +125°C
• Length of 130 mm
• Diameter of 32.0 mm
• Wire size of 4 mm²
• Current rating of 32 A
• Voltage rating of 450 V
• Brass contacts, nickel-plated
• Operating temperature range of -20°C to +125°C
• Length of 130 mm
• Diameter of 32.0 mm
• Wire size of 4 mm²
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
