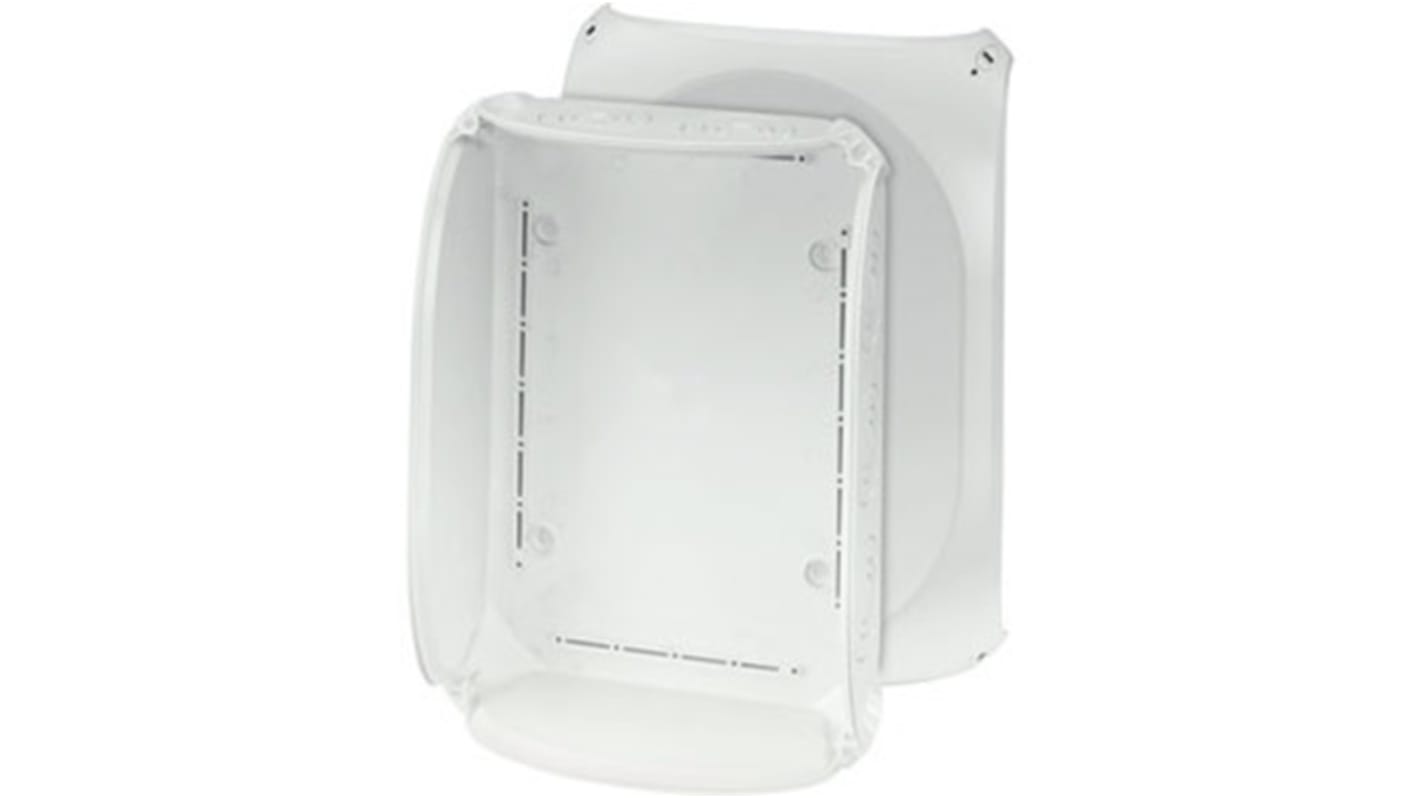

HENSEL KF Series Grey Polycarbonate Junction Box, IP69, IP67, IP66, 122 mm, 355mm 255 mm
- RS 제품 번호:
- 117-813
- 제조사 부품 번호:
- KF5000G
- 제조업체:
- HENSEL
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 117-813
- 제조사 부품 번호:
- KF5000G
- 제조업체:
- HENSEL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | HENSEL | |
| Product Type | Junction Box | |
| Material | Polycarbonate | |
| Length | 122mm | |
| Width | 355mm | |
| Height | 255mm | |
| IP Rating | IP69, IP67, IP66 | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Cable Entry | M32 | |
| Standards/Approvals | IEC 60670-22, UL Subject 94: V-0, IK09, IEC 60695-2-11: 960 °C, DNV GL | |
| Series | KF | |
| 모두 선택 | ||
|---|---|---|
브랜드 HENSEL | ||
Product Type Junction Box | ||
Material Polycarbonate | ||
Length 122mm | ||
Width 355mm | ||
Height 255mm | ||
IP Rating IP69, IP67, IP66 | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Cable Entry M32 | ||
Standards/Approvals IEC 60670-22, UL Subject 94: V-0, IK09, IEC 60695-2-11: 960 °C, DNV GL | ||
Series KF | ||
- COO (Country of Origin):
- DE
The Hensel Weatherproof Cable Junction Box is ideal for outdoor installations in harsh environments. With a degree of protection up to IP69, it is resistant to weather influences, saltwater proof, and suitable for offshore applications. The box is made of polycarbonate material, ensuring durability and longevity in various conditions.
IP67 protection rated
Flame retardant design
Halogen free and silicone free
Self extinguishing material
