RS PRO Jack Connector 6.35 mm PCB Female 2 Mono, 5A

모든 Jack Plugs & Sockets 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩15,050.10

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 8월 03일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 9₩15,050.10
10 - 49₩13,997.10
50 +₩11,518.65

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
205-0434
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Jack Connector

Size

6.35 mm

Current

5A

Mount Type

PCB

Sub Type

Mono

Number of Ways

2

Connector Gender

Female

Orientation

Horizontal

Housing Material

Plastic

Colour

Black

Contact Gender

Female

Standards/Approvals

No

COO (Country of Origin):
GB

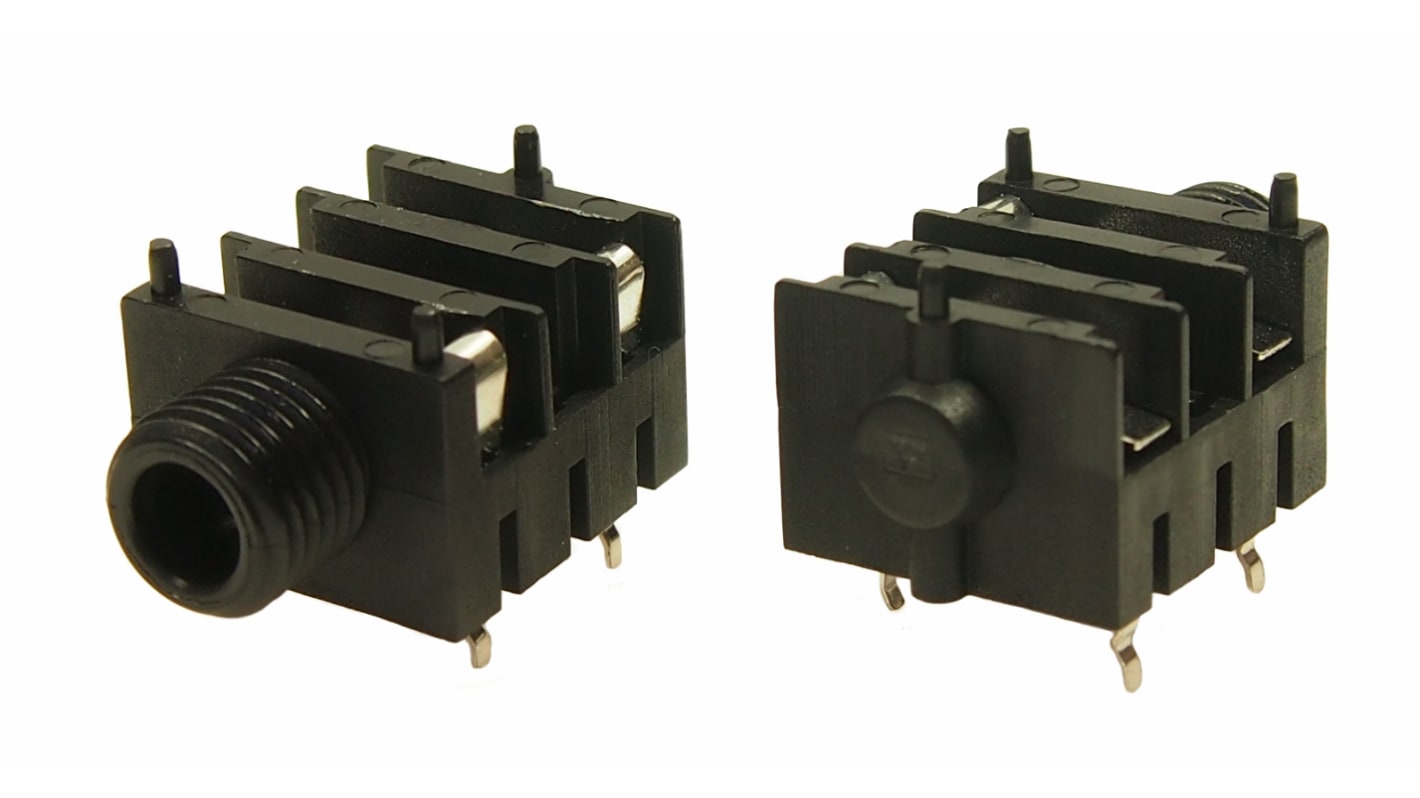

RS PRO 1/4" Mono Jack Socket


From RS PRO, this mono jack socket with PC legs is designed to accommodate 6.35 mm plugs. The sockets are manufactured for panel mounts and printed circuit boards with stacking ability, they are ideal for environments where multiple sockets will be needed in a small area. With a fully threaded nose and a nylon nut for secure fastening, this PCB mount mono jack is not only a cost-effective audio connector but also ensures a quality audio connection.

Features and Benefits


  • Rugged construction and highest packing density ensuring a long life for your jack

  • Snap in PCB mounting. PC-C type so the connector fits orderly into a panel

  • 1/4" PC jack socket to suit 6.35 mm plugs

  • Body design supports auto insertion making for easy use with your jack plug cables

  • Contacts are low noise and self cleaning meaning the jack is low maintenance

    • Applications


    The RS Pro mono PC mount

    jack socket which is 1/4 inches. It is supplied with the black plastic nut.

    Are 1/8" mini jacks compatible with 1/4" standard jacks?


    Black in colour

    An adapter is needed to connect a 3.5 mm mono jack socket to a 6.3 mm jack plug. Adapters are commonly available and often ensure no tangible loss of quality in the connection.

    Why RS PRO?


    RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.
