ACPL-798J-000E Broadcom Sigma-Delta Modulator, 16-Pin 6 V SOIC

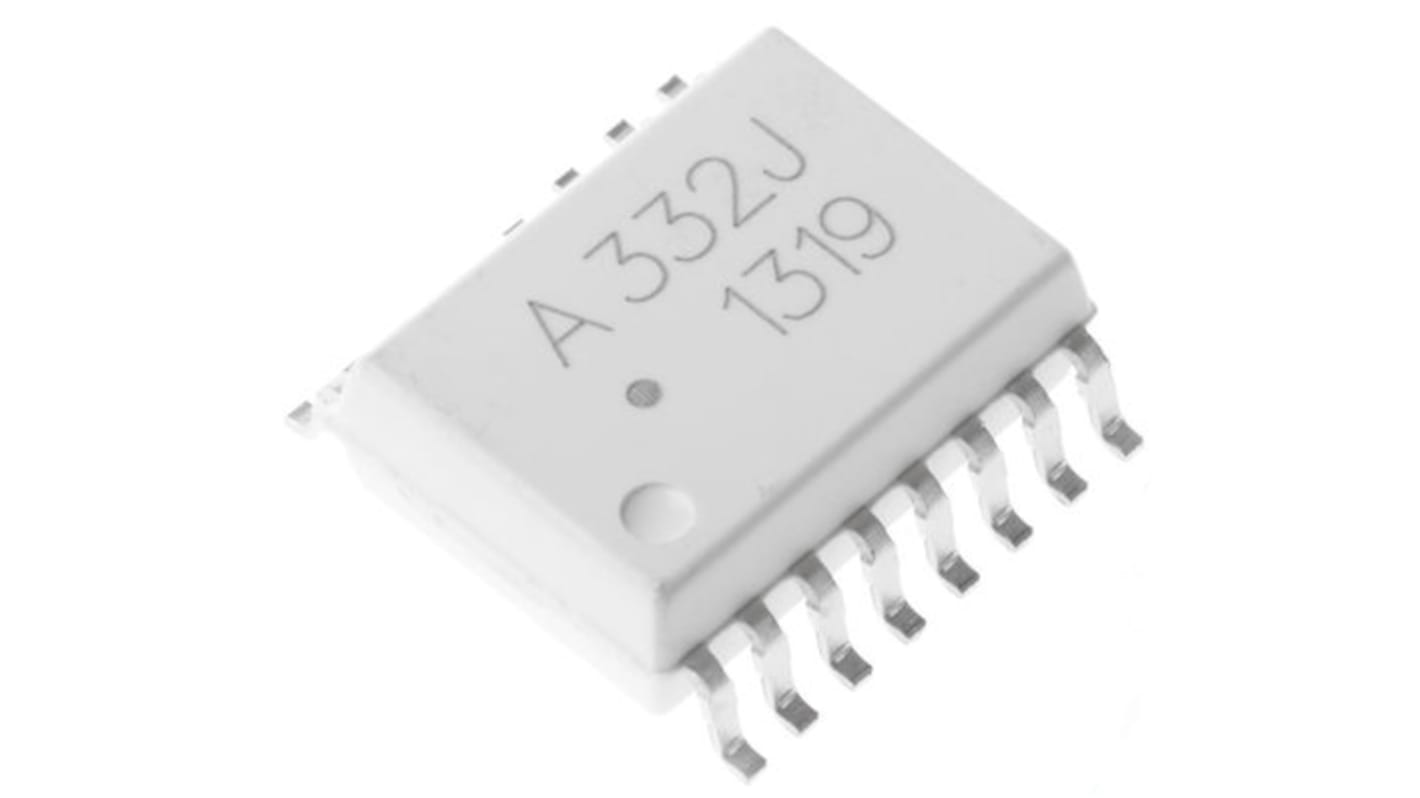

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Isolation Amplifiers 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
포장 옵션
RS 제품 번호:
910-8257
제조사 부품 번호:
ACPL-798J-000E
제조업체:
Broadcom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Broadcom

Product Type

Sigma-Delta Modulator

Maximum Supply Voltage

6V

Minimum Supply Voltage

3V

Mount Type

Surface

Package Type

SOIC

Pin Count

16

Isolation Voltage

5000Vrms

CMRR - Common Mode Rejection Ratio

25dB

Vos - Input Offset Voltage

-1.5 to 2.5 mV

Isolation Type

Optical

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Series

ACPL-798J

Standards/Approvals

UL 1577, CSA Component Acceptance Notice 5, IEC/EN/DIN EN 60747-5-5

Width

7.49 mm

Length

10.31mm

Height

3.5mm

Automotive Standard

No

Sigma-Delta Modulators, Avago Technologies


These miniature isolation amplifiers are using advanced Sigma-Delta Modulator technology for current sensing and voltage sensing in power converters. They provide accurate measurements of phase current and bus voltage. With built-in safety insulation and high Common Mode Rejection (CMR) performance, the Sigma-Delta Modulators offer an alternative to the traditional hall effect current sensor. Applications can be found in motor drives, power inverters and voltage signals in general isolation circuits.

Analogue to Digital Converters - Avago Technologies
