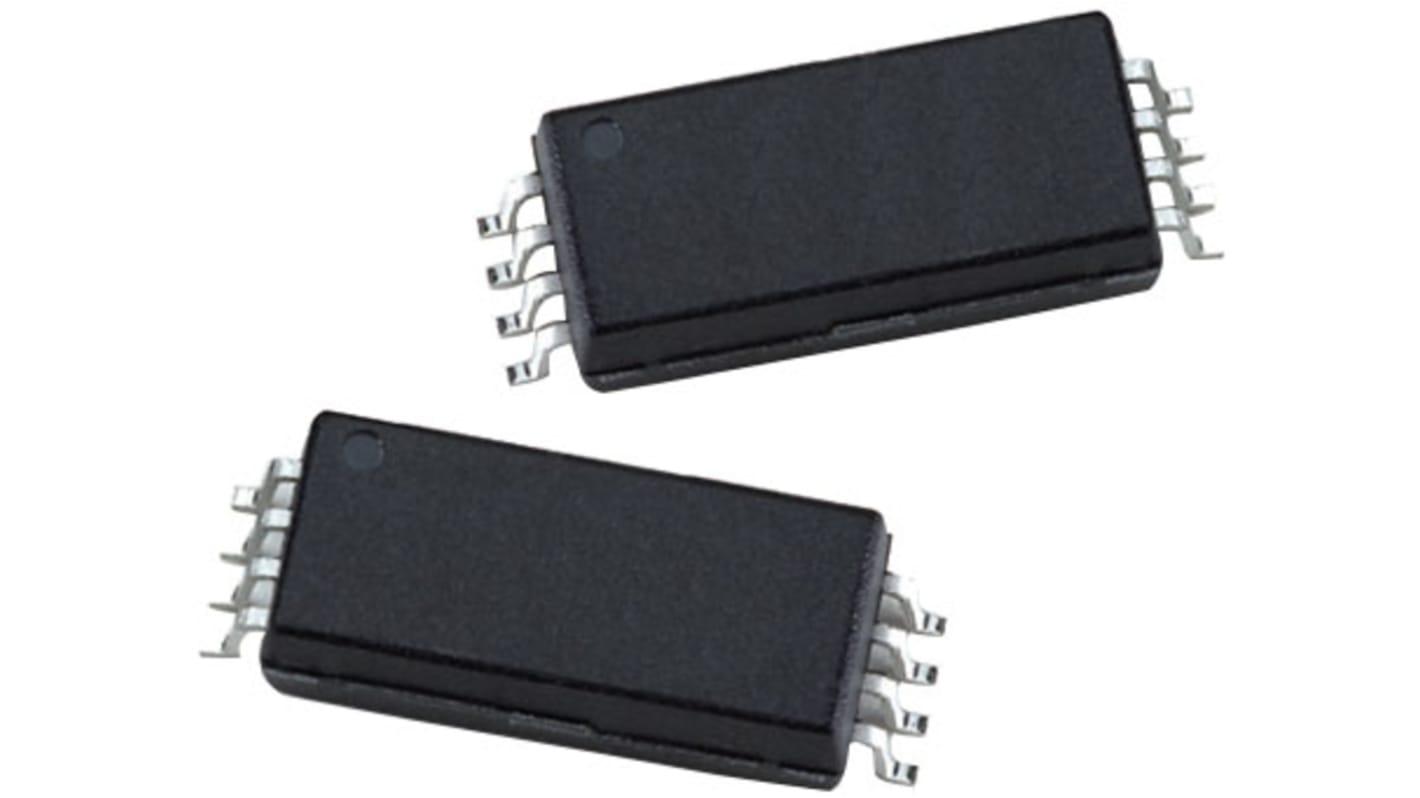

ACNT-H79A-000E Broadcom Isolation Amplifier, 8-Pin 6 V SOIC

RS 제품 번호:: 910-8229
제조사 부품 번호:: ACNT-H79A-000E
제조업체:: Broadcom

ACNT-H79A-000E Broadcom Isolation Amplifier, 8-Pin 6 V SOIC

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩15,416.00

재고있음

추가로 2026년 2월 23일 부터 505 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 19	₩15,416.00
20 - 39	₩15,077.60
40 +	₩14,739.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 910-8229
제조사 부품 번호:: ACNT-H79A-000E
제조업체:: Broadcom

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Broadcom
	Product Type	Isolation Amplifier
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	6V
	Mount Type	Surface
	Package Type	SOIC
	Pin Count	8
	Isolation Voltage	7500Vrms
	CMRR - Common Mode Rejection Ratio	76dB
	Vos - Input Offset Voltage	-2 to 2 mV
	Minimum Operating Temperature	-40°C
	Isolation Type	Optical
	Maximum Operating Temperature	105°C
	Series	ACNT-H79
	Length	13.6mm
	Standards/Approvals	IEC/EN/DIN EN 60747-5-5, CSA Component Acceptance Notice 5, UL 1577
	Height	3.4mm
	Width	6.24 mm
	Automotive Standard	No

	모두 선택
	브랜드 Broadcom
	Product Type Isolation Amplifier
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 6V
	Mount Type Surface
	Package Type SOIC
	Pin Count 8
	Isolation Voltage 7500Vrms
	CMRR - Common Mode Rejection Ratio 76dB
	Vos - Input Offset Voltage -2 to 2 mV
	Minimum Operating Temperature -40°C
	Isolation Type Optical
	Maximum Operating Temperature 105°C
	Series ACNT-H79
	Length 13.6mm
	Standards/Approvals IEC/EN/DIN EN 60747-5-5, CSA Component Acceptance Notice 5, UL 1577
	Height 3.4mm
	Width 6.24 mm
	Automotive Standard No

Isolating Amplifiers, Avago Technologies

The range of isolation amplifier optocouplers from Avago Technologies is ideal for industrial environments where the optocoupler is used to insulate high voltages and isolate any unwanted signals. Sigma-delta modulator technology allows the current and voltage sensor families to provide precise measurements of phase current and bus voltage in motor drives, power inverters and voltage signals in general isolation circuits. These isolation amplifiers offer high CMR (common mode rejection) performance and built-in safety insulation. They are a suitable alternative to the Hall Effect isolation amplifiers, for current and voltage sensing in power converters.

Various types available including:

precision isolation amplifiers

miniature isolation amplifiers

precision optically isolated voltage sensors

isolated linear sensing ICs

isolation amplifiers with short circuit and overload detection

automotive isolation amplifiers
